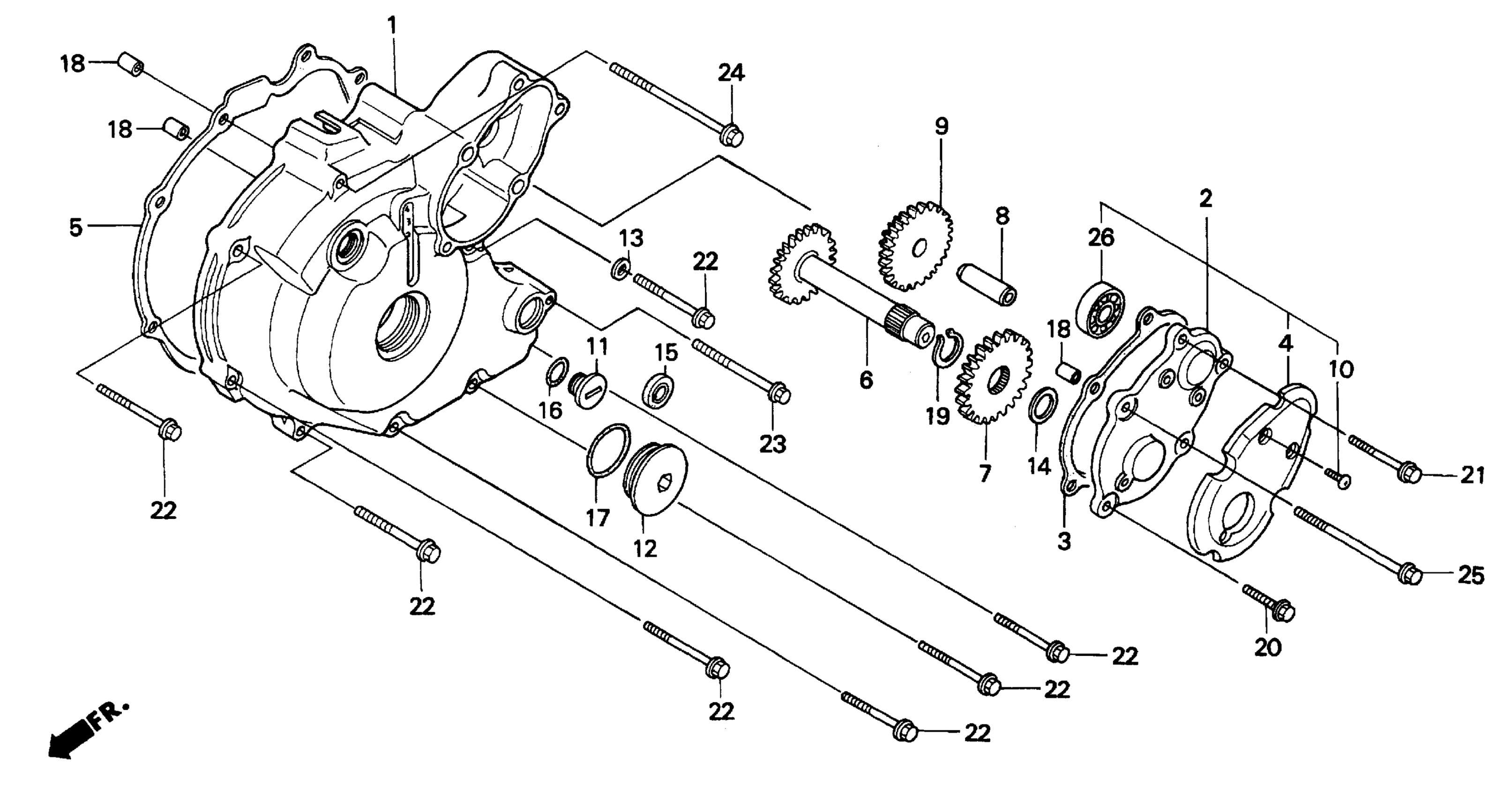

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 LEFT CRANKCASE COVER (1) Diagram

COVER, L. CRANKCASE

11341-HM4-A20

Unavailable

COVER, STARTING GEAR

11350-HC4-000

Unavailable

GASKET, STARTING GEAR COVER

11356-HC5-741

$5.66

PROTECTOR, STARTING GEAR COVER

11357-HC4-000

Unavailable

GASKET, L. CRANKCASE COVER

11395-HC5-740

$17.46

SHAFT, STARTER REDUCTION

28130-HC4-000

Unavailable

GEAR C, STARTER REDUCTION (25T)

28131-HA0-770

Unavailable

SHAFT A, STARTER REDUCTION

28133-HA0-770

$11.95

GEAR, STARTER REDUCTION (43T/18T)

28140-HA0-770

Unavailable

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

CAP (30MM)

90087-HB5-000

$16.69

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$6.45

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$6.45

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
