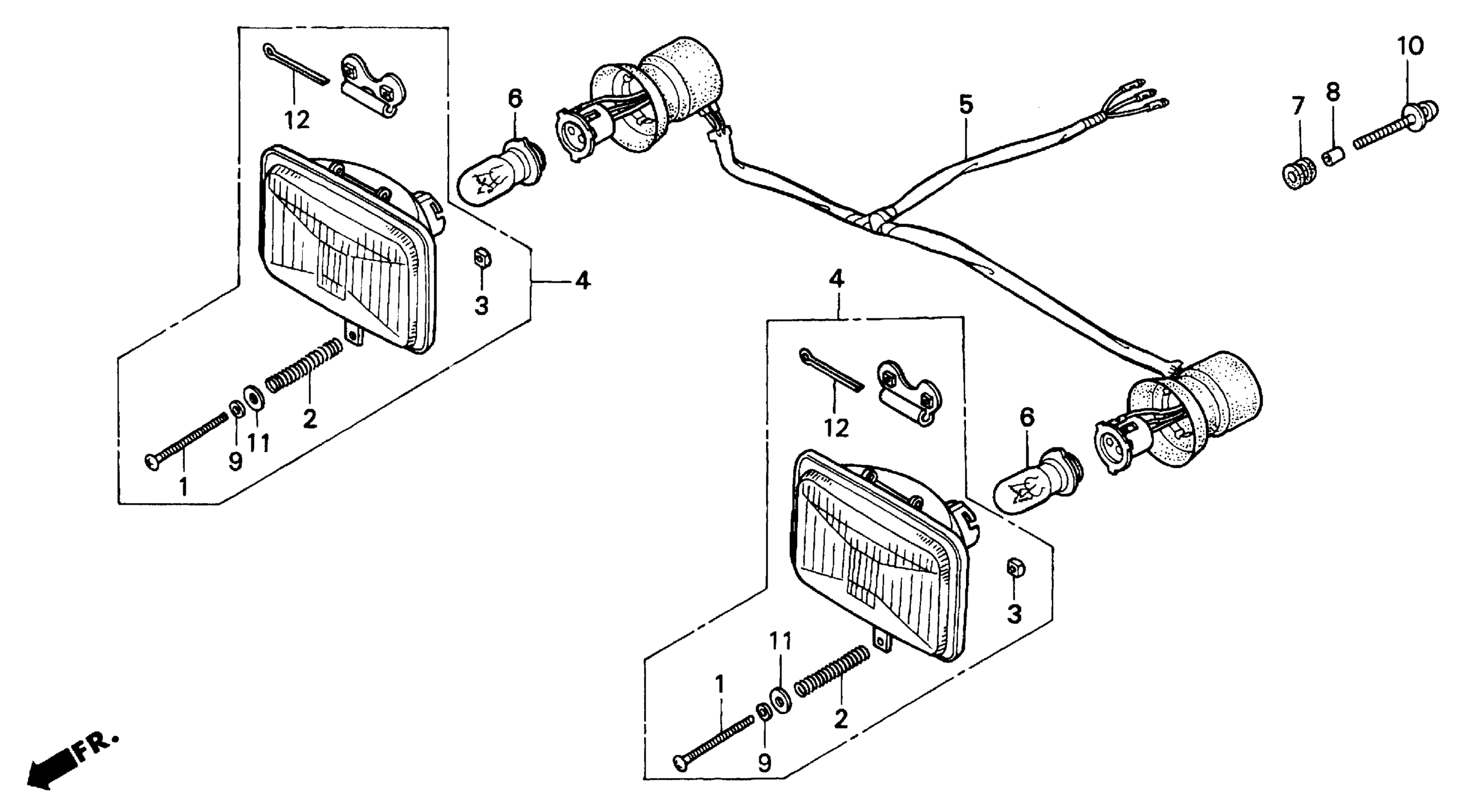

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 HEADLIGHT Diagram

#

Description

Price

1

SCREW, BEAM ADJUSTING

33103-KF0-670

$3.95

2

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.03

3

NUT, BEAM ADJUSTING (STANLEY)

33117-KA2-003

$1.86

4

HEADLIGHT UNIT

33120-HC4-000

$79.06

5

SOCKET, HEADLIGHT

33130-HC4-750

Unavailable

6

BULB (12V25/25W) (STANLEY) This part replaces 34901-066-003.

34901-706-000

$4.73

6

BULB (12V25/25W) (STANLEY)

34901-706-000

$4.73

7

GROMMET, SIDE COVER

50142-HM5-670

$11.49

8

COLLAR, HEADLIGHT MOUNTING

61105-HM5-730

$1.71

9

WASHER, BEAM ADJUSTING

90286-147-670

$2.17

10

SCREW-WASHER (4X18)

93894-04018-08

$0.88

11

WASHER, PLAIN (3MM)

94103-03800

$0.78

12

PIN, SPLIT (3.0X35)

94201-30350

$0.94
