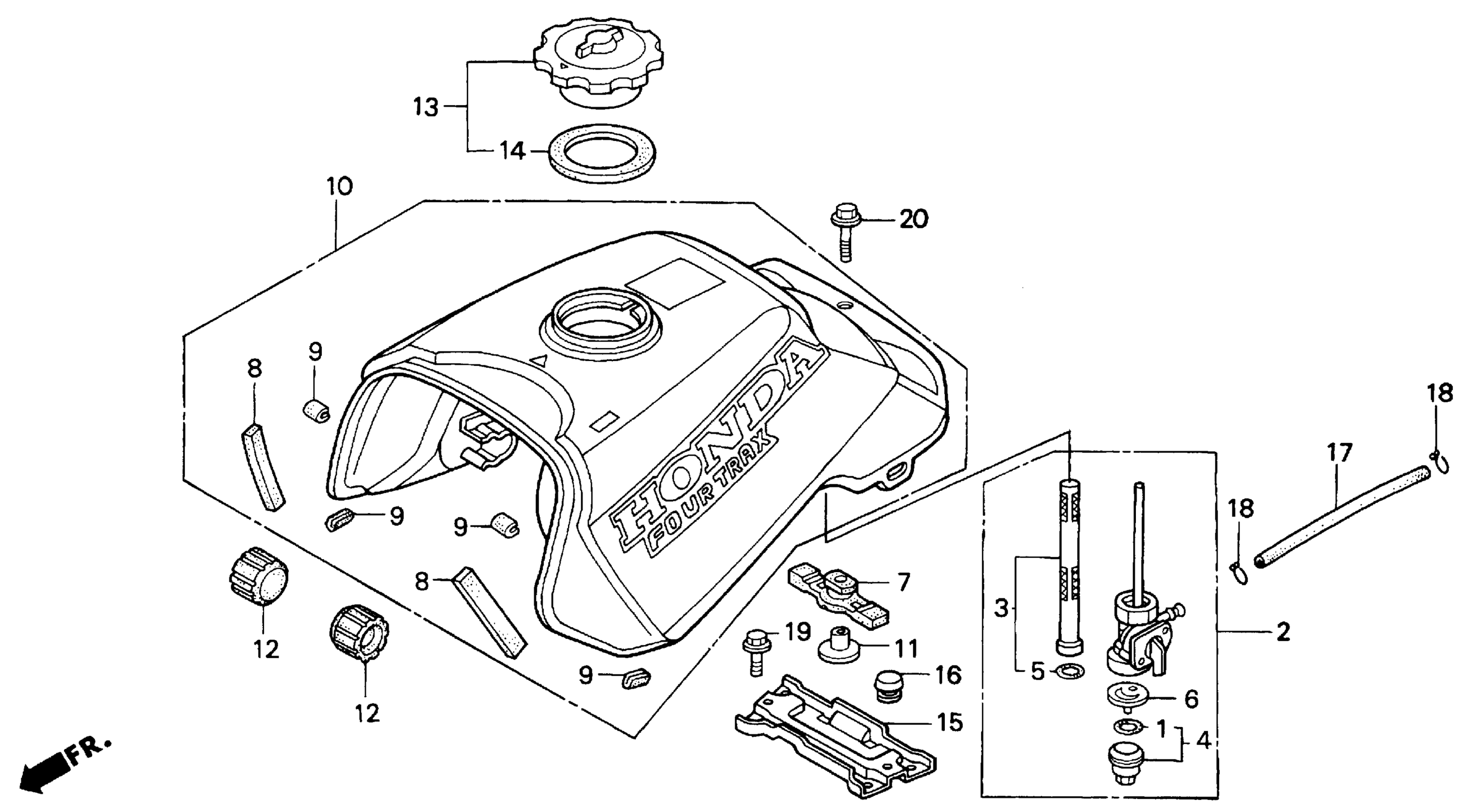

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.93

2

PETCOCK ASSY.

16950-HC4-840

$71.02

3

SCREEN SET, FUEL STRAINER This part replaces 16952-HC4-840.

16952-449-751

$30.03

3

SCREEN SET, FUEL STRAINER

16952-449-751

$30.03

4

CUP SET, FUEL STRAINER

16953-GG2-731

$20.01

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.80

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.80

6

FILTER, CUP

16959-471-831

$8.61

7

RUBBER, RR. FUEL TANK

17503-KG0-000

$18.99

8

RUBBER, TANK SPACER

17511-HM5-670

$10.31

9

TRIM, FUEL TANK

17516-HC4-000

$3.97

10

TANK ASSY., FUEL *G152* (WL) (ADVENTURE GREEN) TANK ASSY., FUEL *YR176* (WL)

17520-HM4-A10ZA

Unavailable

10

TANK ASSY., FUEL *YR176* (WL) (HARVEST BEIGE) TANK ASSY., FUEL *R232* (WL)

17520-HM4-A10ZD

Unavailable

10

TANK ASSY., FUEL *R232* (WL) (PATRIOT RED)

17520-HM4-A10ZE

Unavailable

11

COLLAR, FUEL TANK MOUNTING

17525-KC5-000

$6.41

12

CUSHION, FUEL TANK

17611-HM5-730

$24.31

13

FUEL FILL CAP (TOYOSHA)

17620-HC3-505

Unavailable

13

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

14

GASKET, FUEL FILLER CAP

17632-435-730

$8.70

15

PLATE, FR. CROSS

50189-HM5-670

Unavailable

16

RUBBER B, STOPPER

50354-HM5-730

$13.02

17

BULK HOSE, FUEL (7.5X8000) (7.5X210)

95001-75008-60M

$100.95

18

CLIP, TUBE (B12)

95002-02120

$1.79

19

BOLT, FLANGE (8X12)

95701-08012-08

$1.62

20

BOLT, FLANGE (8X30)

95701-08030-08

$1.29
