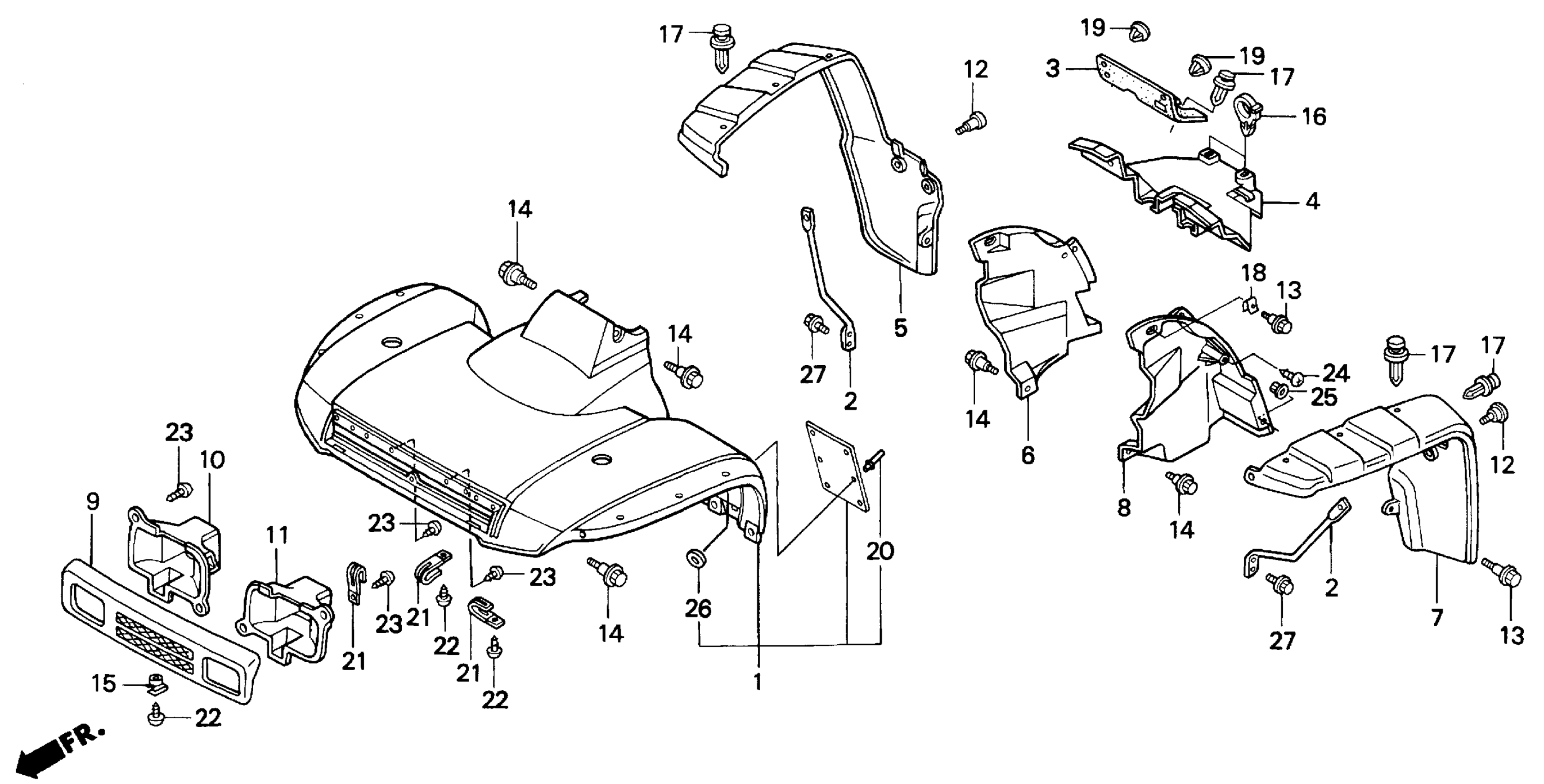

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 FRONT FENDER Diagram

FENDER, FR. *G152* (ADVENTURE GREEN)

61100-HM5-A10ZA

Unavailable

FENDER, FR. *R232* (PATRIOT RED)

61100-HM5-A10ZC

Unavailable

FENDER, FR. *YR176* (HARVEST BEIGE)

61100-HM5-A10ZD

Unavailable

STAY, FR. FENDER SUPPORT

61101-HC5-970

Unavailable

SEAL, SNORKEL (LOWER)

61720-HC5-970

Unavailable

PLATE, SNORKEL (LOWER)

61725-HC5-970

Unavailable

SPLASH GUARD, R. FR. *NH1* (BLACK)

61861-HM5-850ZA

$141.04

FENDER, R. FR. (INNER)

61862-HC5-970

$43.56

SPLASH GUARD, L. FR. *NH1* (BLACK)

61866-HM5-850ZA

$141.04

FENDER, L. FR. (INNER)

61867-HC5-970

Unavailable

GRILLE, FR. *G152* (ADVENTURE GREEN) This part replaces 66300-HM4-A10ZA.

66300-HM4-730ZA

$137.15

GRILLE, FR. *R232* (PATRIOT RED)

66300-HM4-A10ZC

Unavailable

GRILLE, FR. *YR176* (HARVEST BEIGE)

66300-HM4-A10ZD

Unavailable

GRILLE, FR. *G152* (ADVENTURE GREEN)

66300-HM4-730ZA

$137.15

COVER, R. HEADLIGHT

66301-HC4-000

$19.48

COVER, L. HEADLIGHT

66302-HC4-000

$11.69

SCREW, SPLASH GUARD

90101-HB3-004

$5.62

BOLT, FLANGE (6MM)

90111-147-000

$2.75

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, SPRING (4MM)

90302-SA4-003

$5.44

CLIP, WIRE HARNESS

90628-HM5-850

Unavailable

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

NUT, CLIP (6MM)

90673-SB2-000

$6.96

CLIP, COVER (LOWER)

90685-SA5-003

$10.31

RIVET, POP (3.2)

90841-HF1-910

$1.49

CLIP (4X60)

91410-KT7-000

$5.03

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (5X16)

93903-25320

$1.49

SCREW, TAPPING (6X16)

93904-26210

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (3MM)

94103-03800

$1.49

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
