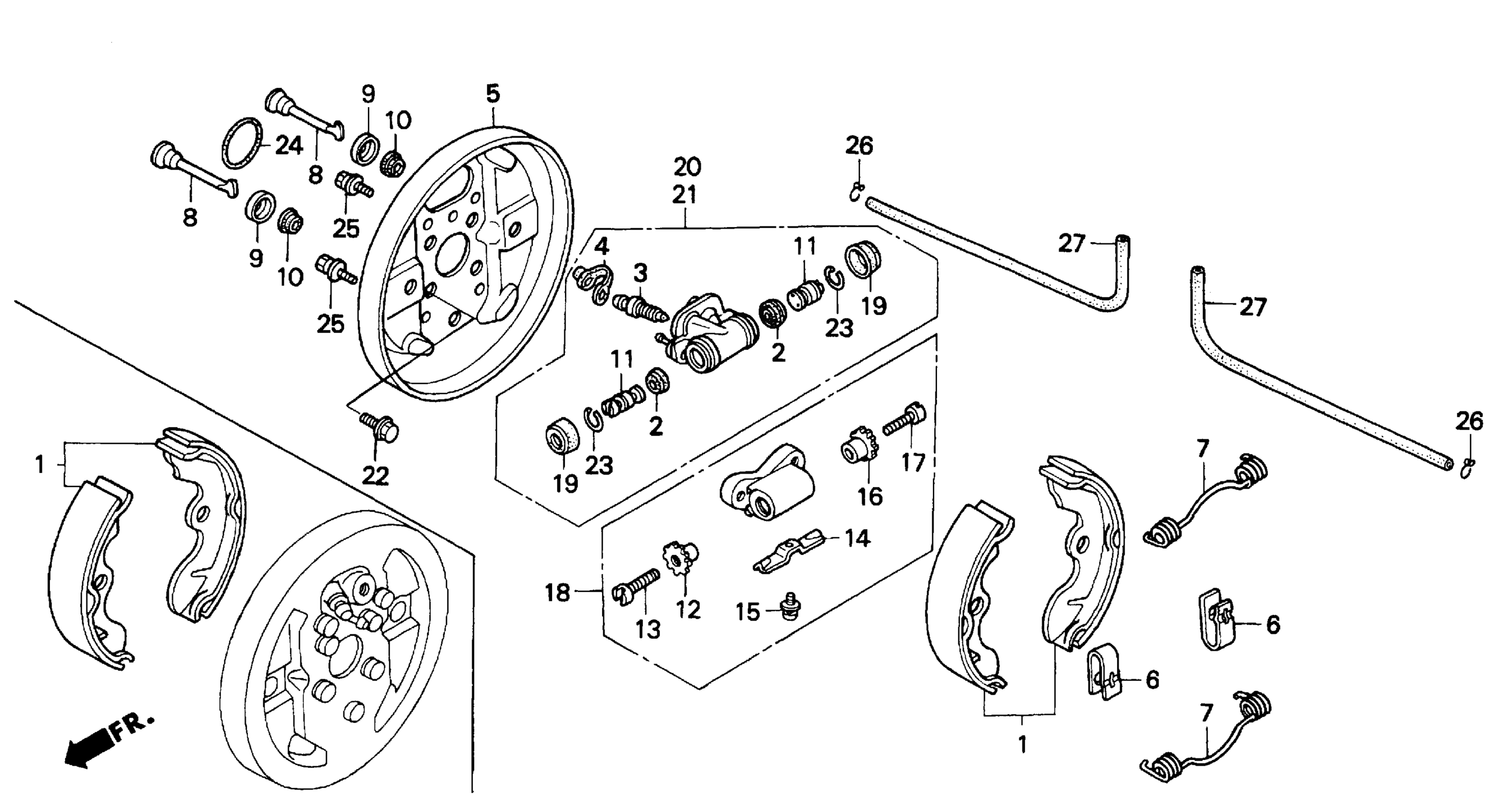

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 FRONT BRAKE PANEL (1) Diagram

SHOE SET, BRAKE (INCLUDES 4 SHOES)

06450-HC4-900

$42.66

CUP, PISTON

43325-567-003

$7.16

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PLATE, BACK (NISSIN)

45101-HC4-841

Unavailable

SPRING, SHOE HOLDER (NISSIN)

45172-HB3-003

$6.34

SPRING, BRAKE

45173-HC4-006

$4.53

PIN, TENSION

45175-HC4-006

$4.17

CAP, PIN (NISSIN)

45176-HM5-A81

$7.41

SEAL, PIN (NISSIN)

45177-HA7-651

$6.89

PISTON, WHEEL CYLINDER (NISSIN)

45314-HC4-006

$22.08

ADJUSTER, R. FR. BRAKE

45316-634-013

Unavailable

SCREW, R. ADJUSTING

45317-634-013

$5.78

SPRING, LOCK

45318-HB3-003

$6.28

SCREW-WASHER (4X6)

45319-634-003

$2.48

ADJUSTER, L. FR. BRAKE

45336-634-013

Unavailable

SCREW, L. ADJUSTING

45337-634-013

$5.78

ADJUSTER ASSY. (NISSIN)

45340-HC4-000

Unavailable

BOOT, WHEEL CYLINDER

45342-HB3-003

$6.16

CYLINDER ASSY., R. FR. WHEEL (NISSIN)

45350-HC4-505

$135.83

CYLINDER ASSY., R. FR. WHEEL (NISSIN) This part replaces 45350-HC4-841.

45350-HC4-505

$135.83

CYLINDER ASSY., L. FR. WHEEL (NISSIN)

45370-HC4-505

$115.56

CYLINDER ASSY., L. FR. WHEEL (NISSIN) This part replaces 45370-HC4-841.

45370-HC4-505

$115.56

BOLT, FLANGE (8X12)

90115-HM4-930

$4.11

CLIP, PISTON (NISSIN)

90661-HC4-006

$3.89

O-RING (29.7X1.3)

91357-HC4-003

Unavailable

BOLT-WASHER (6X12)

93402-06012-08

$1.62

CLIP, TUBE (C6.5)

95002-35000

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X950) (BULK HOSE 95005-35001-30M)

95005-35001-30M

$8.63
