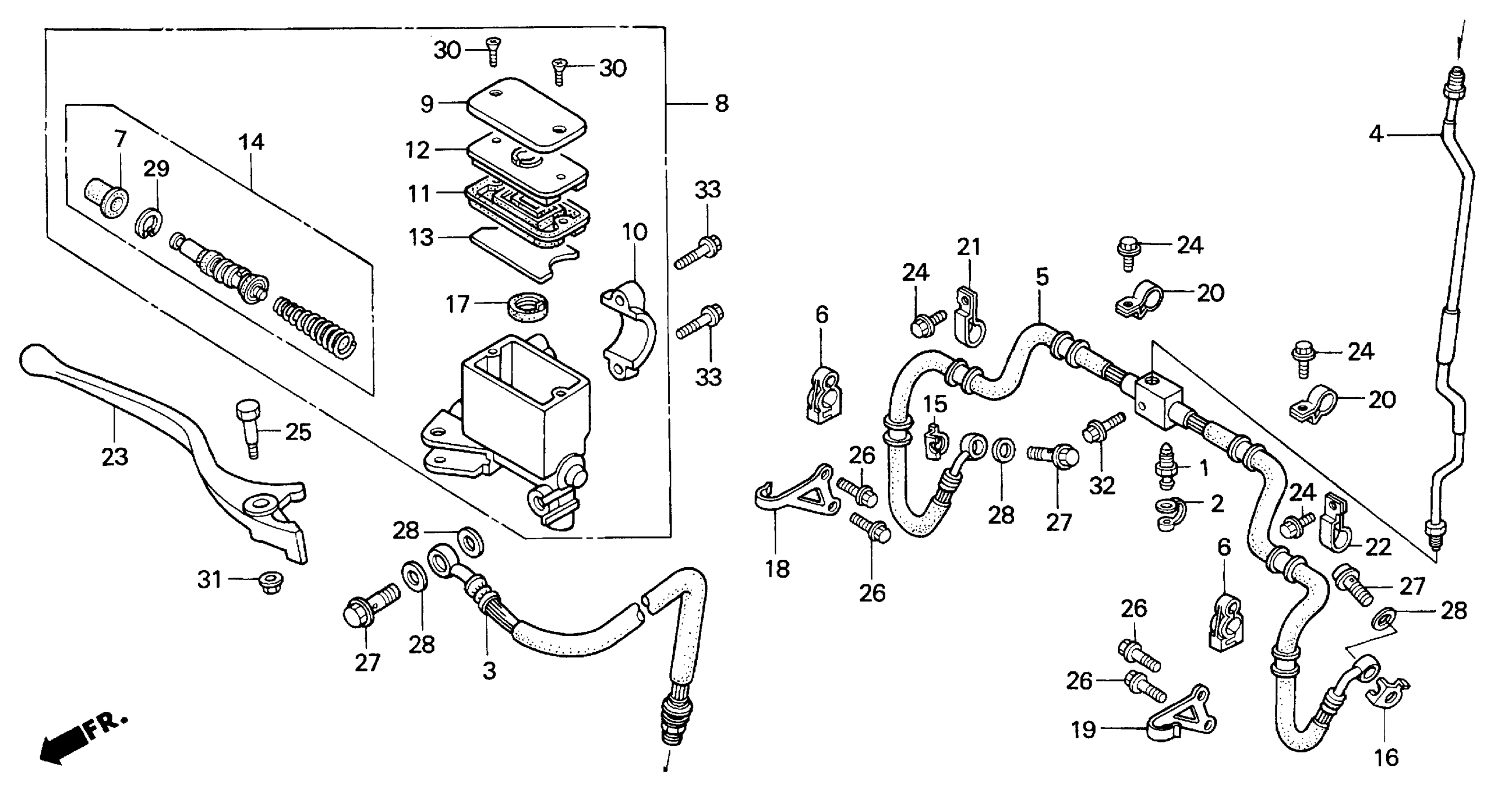

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

2

CAP, BLEEDER

43353-461-771

$4.70

3

HOSE ASSY., FR. BRAKE (UPPER)

45126-HM4-A21

Unavailable

4

PIPE A, FR. BRAKE

45127-HC4-840

Unavailable

5

HOSE B, FR. BRAKE

45128-HM4-A21

Unavailable

6

CLIP, BRAKE HOSE

45401-HM5-850

$1.71

7

BOOT

45504-410-003

$10.93

8

MASTER CYLINDER SUB-ASSY., FR.

45510-HC4-305

$207.44

9

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

10

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

11

DIAPHRAGM

45520-MG7-006

$9.52

12

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

13

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC4-841

Unavailable

14

MASTER CYLINDER SET

45530-HC5-006

$51.15

15

WASHER, R. OIL BOLT

45535-HC4-840

$8.52

16

WASHER, L. OIL BOLT

45545-HC4-840

$8.52

17

SEPARATOR

46666-HB9-006

$8.42

18

CLAMP, R. BRAKE HOSE

51201-HM4-850

Unavailable

19

CLAMP, L. BRAKE HOSE

51202-HM4-850

Unavailable

20

CLAMP A, FR. BRAKE HOSE

51207-HM4-850

Unavailable

21

CLAMP C, R. FR. BRAKE HOSE

51208-HM4-850

Unavailable

22

CLAMP C, L. FR. BRAKE HOSE

51209-HM4-850

Unavailable

23

LEVER, R. HANDLEBAR

53175-HC4-010

$20.46

24

BOLT, FLANGE (6X10)

90107-HC5-000

$2.12

25

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

26

BOLT, FLANGE (8X12)

90115-HM4-930

$3.64

27

BOLT, OIL (10X22)

90145-MS9-612

$6.82

28

WASHER, OIL BOLT

90545-300-000

$3.72

29

CIRCLIP

90651-MA5-671

$2.38

30

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

30

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

31

NUT, FLANGE (6MM)

94050-06000

$0.59

32

BOLT, FLANGE (6X16)

95701-06016-07

$1.48

33

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
