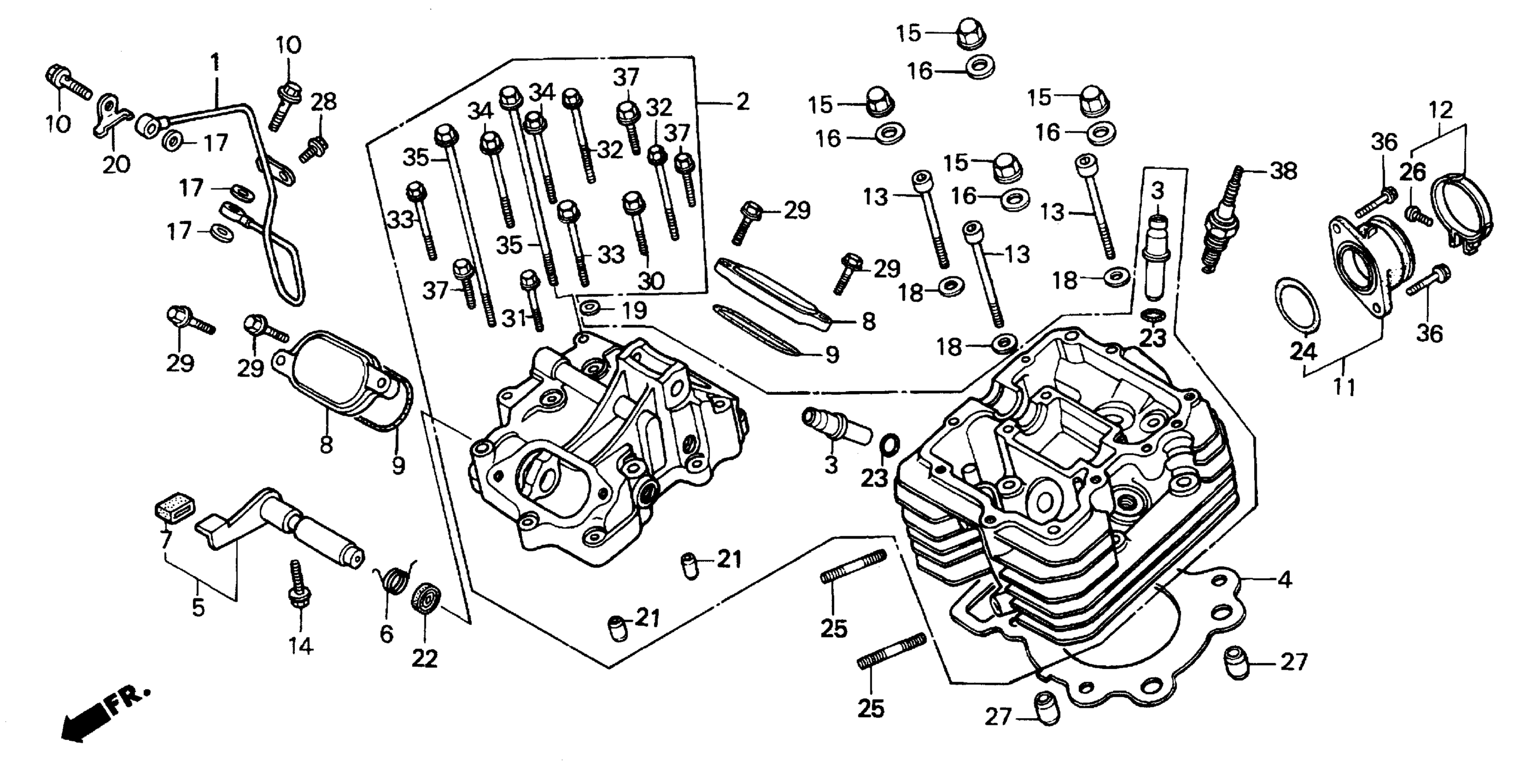

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE This part replaces 11335-HA0-000.

11335-HA0-003

Unavailable

2

CYLINDER HEAD ASSY.

12000-HC4-000

Unavailable

3

GUIDE, VALVE (O.S)

12232-HA0-305

$13.92

4

GASKET, CYLINDER HEAD This part replaces 12251-HA0-003.

12251-HA0-004

$33.54

4

GASKET, CYLINDER HEAD

12251-HA0-004

$33.54

4

GASKET, CYLINDER HEAD (FOR 0.50-1.00 O.S. PISTON) | (Optional).

12252-HA0-305

Unavailable

4

GASKET, CYLINDER HEAD (OS 0.50-1.00) | (Optional). This part replaces 12252-HA0-306.

12252-HA0-305

Unavailable

5

LIFTER, VALVE

12320-HC4-000

Unavailable

6

SPRING, VALVE LIFTER

12321-HC4-000

Unavailable

7

COVER, LEVER

12323-HB3-000

Unavailable

8

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$37.87

9

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

10

BOLT, FLANGE (7X23) This part replaces 15533-HA0-000.

15533-KL8-730

Unavailable

11

INSULATOR, CARBURETOR (KOYO)

16211-HC4-003

Unavailable

12

BAND, INSULATOR

16219-HC4-000

$11.76

13

BOLT, SOCKET (8X88)

90064-HA0-000

Unavailable

14

BOLT, FLANGE (6X17)

90081-HC4-000

Unavailable

15

NUT, CAP (10MM)

90201-HA0-000

$6.45

15

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

16

WASHER (10MM)

90410-HC4-000

$3.81

17

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

18

WASHER, SEALING (8MM)

90441-469-000

$5.28

19

WASHER, SEALING (6MM)

90441-706-000

$1.49

20

WASHER, LOCK (7MM)

90443-HA0-771

$5.57

21

PIN, DOWEL (8X12)

90701-HC4-000

$2.92

22

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

23

O-RING (10X1.6)

91301-200-000

$3.01

24

O-RING (33.7X2.4)

91305-HA0-680

$8.66

25

BOLT, STUD (8X25)

92900-08025-0B

$2.20

26

SCREW, PAN (5X28)

93500-05028-0G

$1.49

27

PIN, DOWEL (12X20)

94301-12200

$2.29

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

30

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

31

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

32

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

33

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

34

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

35

BOLT, FLANGE (6X140)

95701-06140-00

$2.92

36

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

37

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

38

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

38

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

38

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

38

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

38

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

38

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
