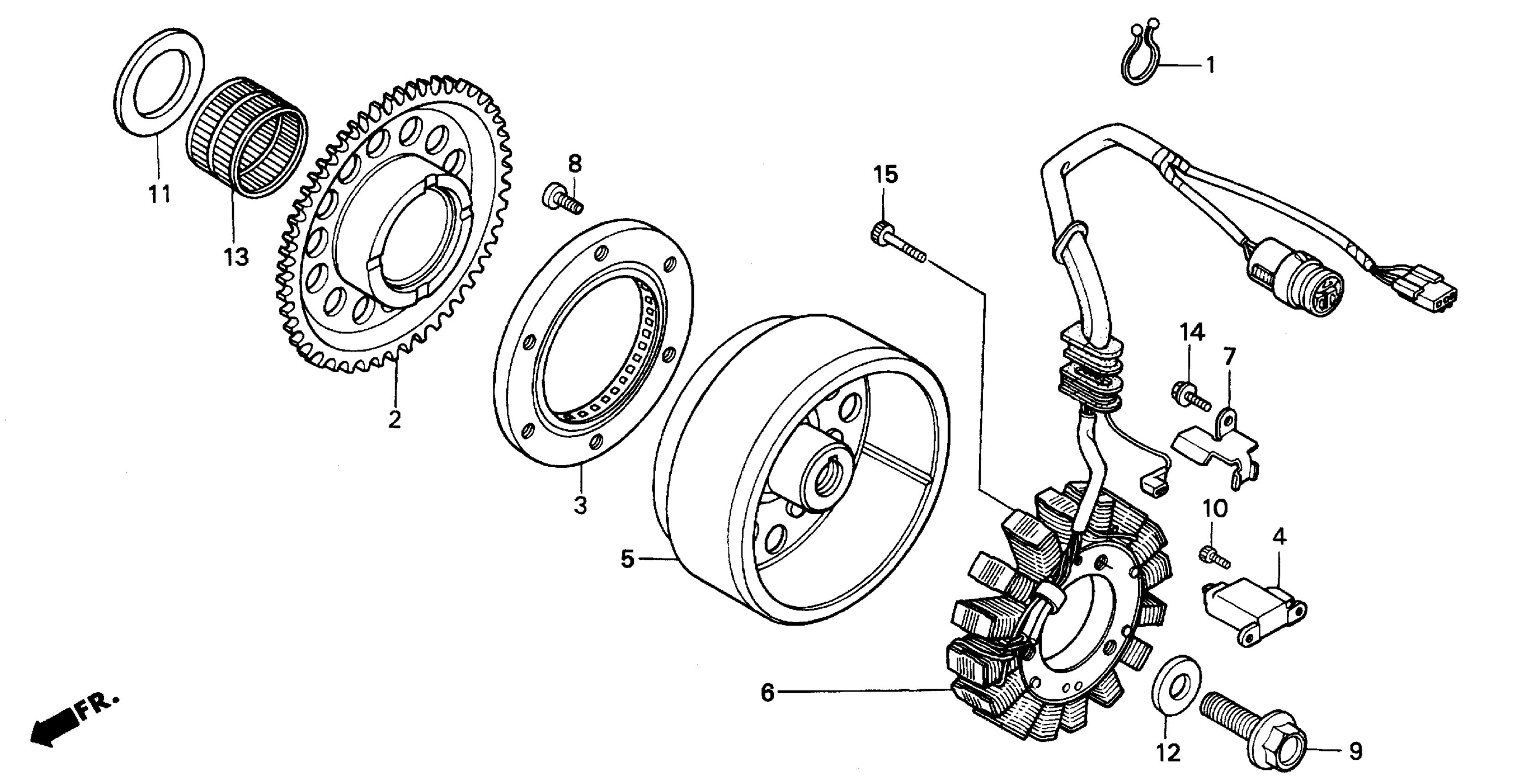

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 ALTERNATOR Diagram

#

Description
Price

1

CLIP, TUBE (26)

17916-PE1-671

Unavailable

2

GEAR, STARTING DRIVEN (70T)

28110-HC4-000

Unavailable

3

CLUTCH, STARTER (OUTER)

28125-HC4-014

Unavailable

4

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$40.74

5

FLYWHEEL (DENSO)

31110-HC4-004

Unavailable

5

FLYWHEEL (MITSUBA)

31110-HC4-013

Unavailable

6

STATOR (12WDGS)

31120-HC4-014

Unavailable

6

STATOR

31120-HC4-750

Unavailable

7

CLAMP, WIRE

32111-HC4-000

Unavailable

8

BOLT, SOCKET (6X20)

90010-HC4-000

$2.56

9

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

9

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

9

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

10

BOLT, SOCKET (5X12)

90089-KR0-000

$2.92

11

WASHER, PLAIN (26X40X2.6)

90402-KM1-670

$9.36

12

WASHER (12X30X4.5) This part replaces 90403-HC4-000.

90401-KK9-960

Unavailable

13

BEARING, NEEDLE (26X31X24) (KOYO)

91102-HC4-004

Unavailable

14

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

15

BOLT, SOCKET (6X28)

96700-06028-00

$4.06
