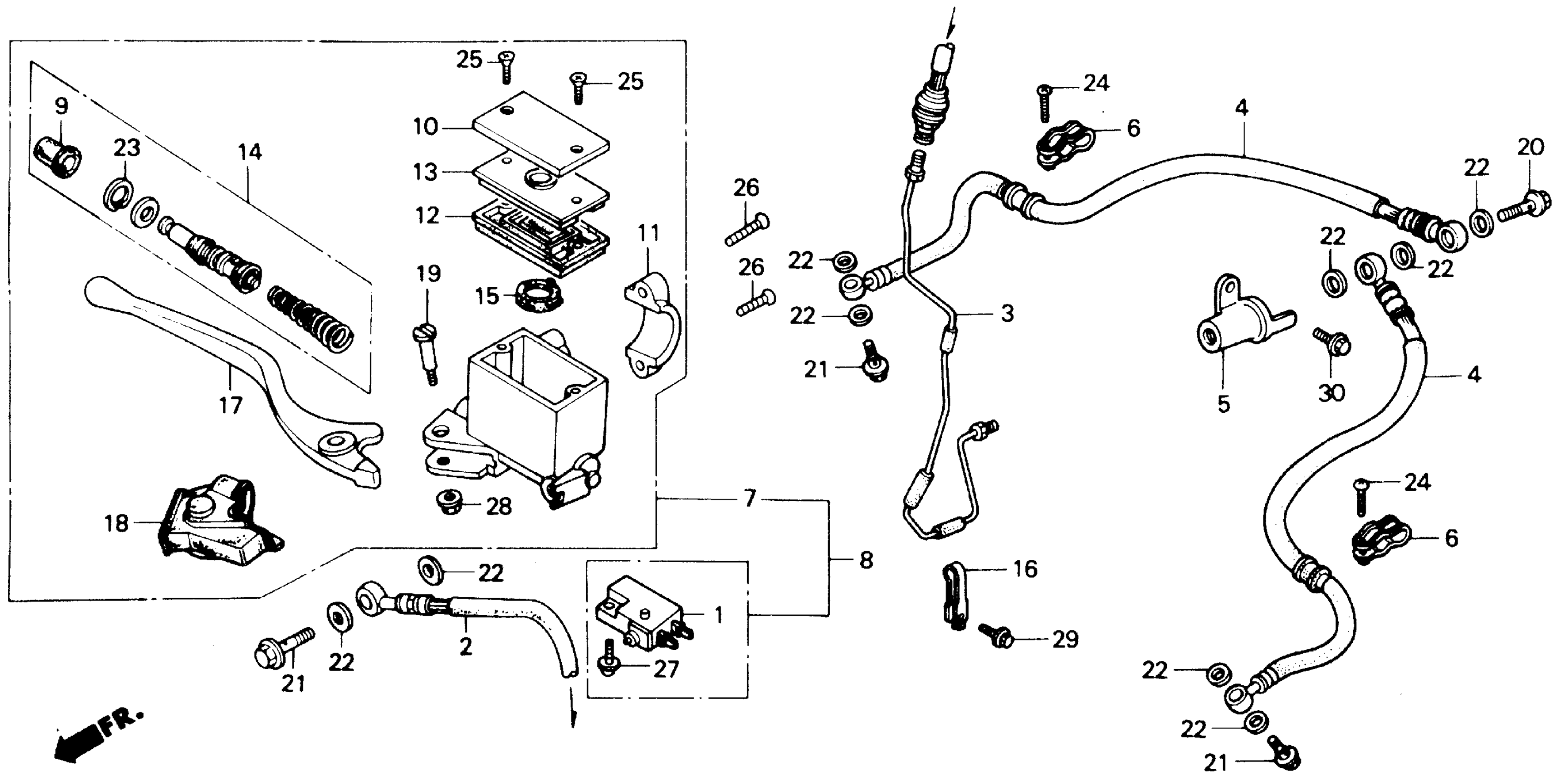

Honda TRX250XAN (92) FOURTRAX 250X, JPN, VIN# JH3TE133-NM400001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

HOSE ASSY., FR. BRAKE (UPPER)

45126-HC0-671

Unavailable

PIPE, FR. BRAKE

45127-HC0-000

Unavailable

HOSE ASSY., FR. BRAKE

45128-HC0-671

Unavailable

JOINT (TWO-WAY) (NISSIN)

45129-HC0-016

Unavailable

CLAMP, FR. BRAKE MIDDLE

45464-HB9-000

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (NISSIN) (NOT AVAILABLE)

45500-HC0-691

Unavailable

BOOT

45504-410-003

$12.16

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-961-000

Unavailable

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET This part replaces 45530-KJ1-701.

45530-KJ1-702

$51.71

MASTER CYLINDER SET

45530-KJ1-702

$51.71

SEPARATOR

46666-HB9-006

$9.38

CLAMP B, FR. BRAKE HOSE (NOT AVAILABLE)

51203-HA7-670

Unavailable

LEVER, R. HANDLEBAR

53175-HC0-670

Unavailable

COVER, R. HANDLE LEVER

53176-HC0-671

$8.43

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X34) (SOURCE: VINTAGE PARTS INC.)

90145-MB0-010

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, PAN (5X16)

93500-05016-0A

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW, OVAL (6X25) (NOT AVAILABLE)

93700-06025-0G

Unavailable

SCREW-WASHER (4X14)

93893-04014-07

$1.49

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
