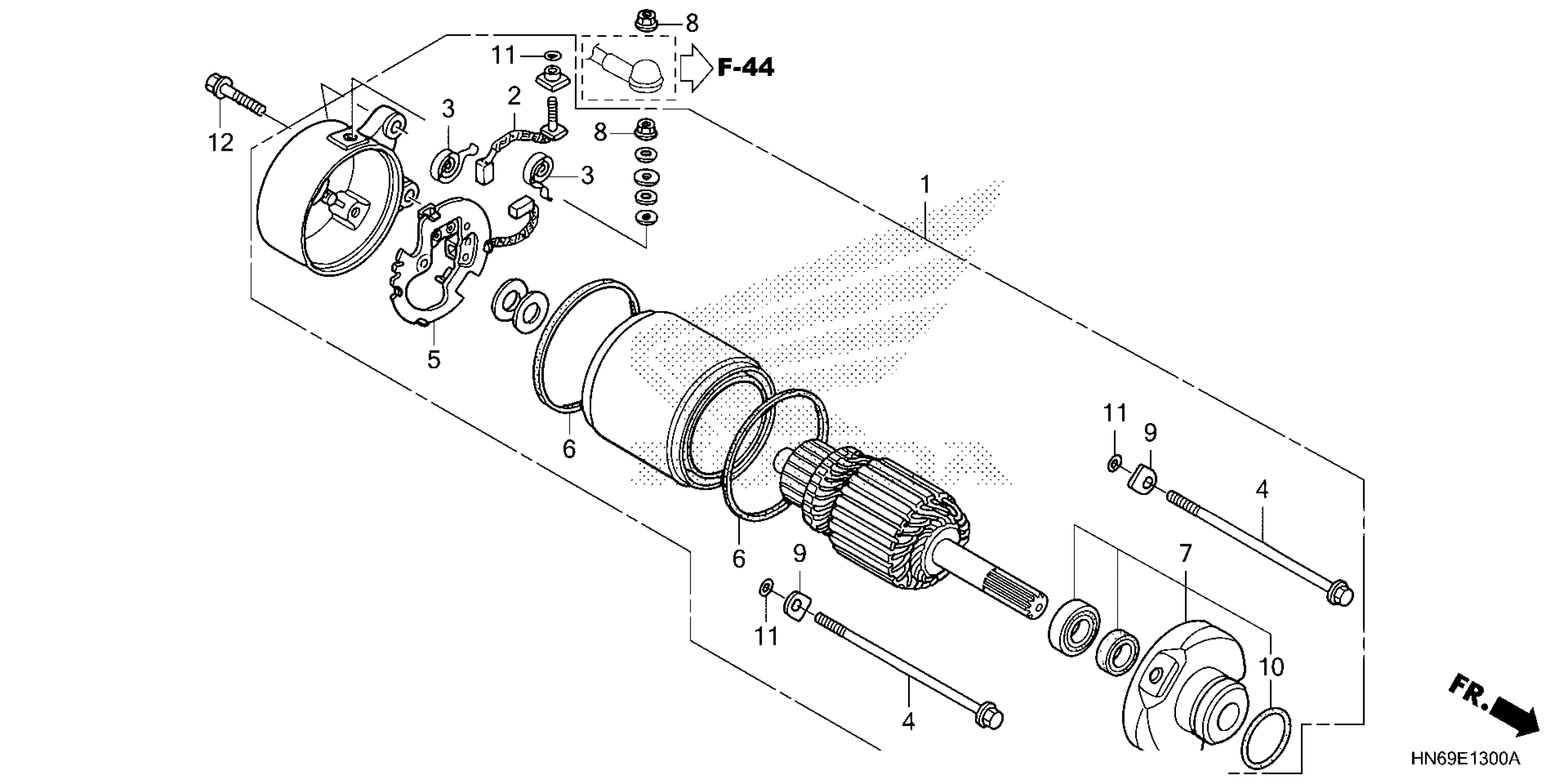

Honda TRX250XAC (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE273-L4900001 TO 1HFTE273-L4999999 STARTER MOTOR (1) Diagram

STARTER MOTOR ASSY.

31200-HM8-003

$501.51

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

BOLT, SETTING

31205-KL8-711

$4.51

HOLDER SET, BRUSH

31206-MN4-008

$23.32

RING (Honda Code 2541985)

31207-KS5-901

$3.12

BRACKET, FR.

31210-HC4-003

$67.21

NUT-WASHER (6MM)

90071-MB0-000

$1.97

WASHER, STEEL PLATE

90122-MN4-008

$2.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

BOLT, FLANGE (6X25)

95801-06025-00

$1.49
