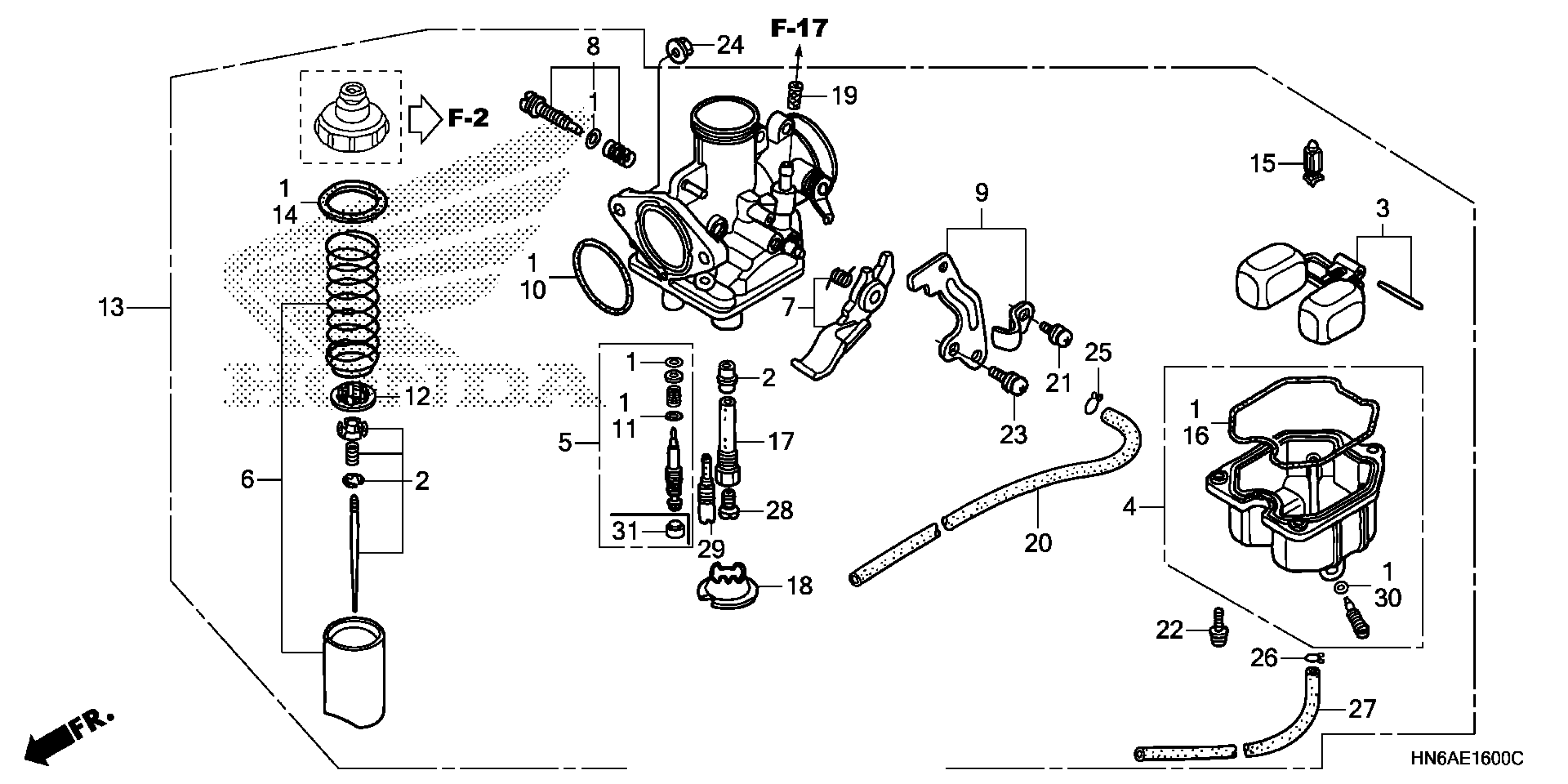

Honda TRX250XAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-E4400001 TO 1HFTE270-E4499999 CARBURETOR (1) Diagram

#

Description
Price

1

GASKET SET

16010-KEB-G01

$40.89

2

NEEDLE SET, JET

16012-HN6-A31

$20.92

3

FLOAT SET

16013-KRP-981

$8.61

4

CHAMBER SET, FLOAT

16015-HN6-003

$123.30

5

SCREW SET A

16016-HN6-A32

$26.80

6

VALVE SET, THROTTLE

16022-HN6-A31

$33.11

7

LEVER SET, CHOKE

16025-HM8-B01

$20.99

8

SCREW SET B

16028-KEB-G01

$12.44

8

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$12.44

9

PLATE SET, STAY

16035-HM8-000

$39.02

10

O-RING (2.4X29)

16075-GHB-B70

$7.81

12

PLATE B, VALVE

16092-HM8-A01

$5.62

13

CARBURETOR ASSY. (PDC1G B)

16100-HN6-A33

$190.31

14

GASKET, TOP

16110-KN4-651

$7.69

15

VALVE, FLOAT

16155-413-751

$32.50

16

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

17

HOLDER, NEEDLE JET

16165-HM8-000

$35.15

18

HOLDER, JET

16168-382-014

$9.81

19

SCREEN, FUEL STRAINER

16176-HM8-B01

$30.93

20

TUBE

16199-HN6-A31

$15.38

21

SCREW-WASHER (4X8)

93892-04008-08

$1.49

21

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

22

SCREW-WASHER (4X16)

93892-04016-08

$1.49

22

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

23

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

23

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

CLIP, TUBE (B1 8)

95002-02089

$1.49

26

CLIP, TUBE (B6.5)

95002-02659

$1.49

27

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-50M

$13.72

28

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.98

28

JET, MAIN (#95)

99101-GHB-0950

$8.77

29

JET, SLOW (#42)

99103-KPT-0420

$10.82

30

O-RING (1.3X4.3)

16075-GHB-640

$2.92

31

CAP, ADJUSTING SCREW

16312-KYK-911

$2.70
