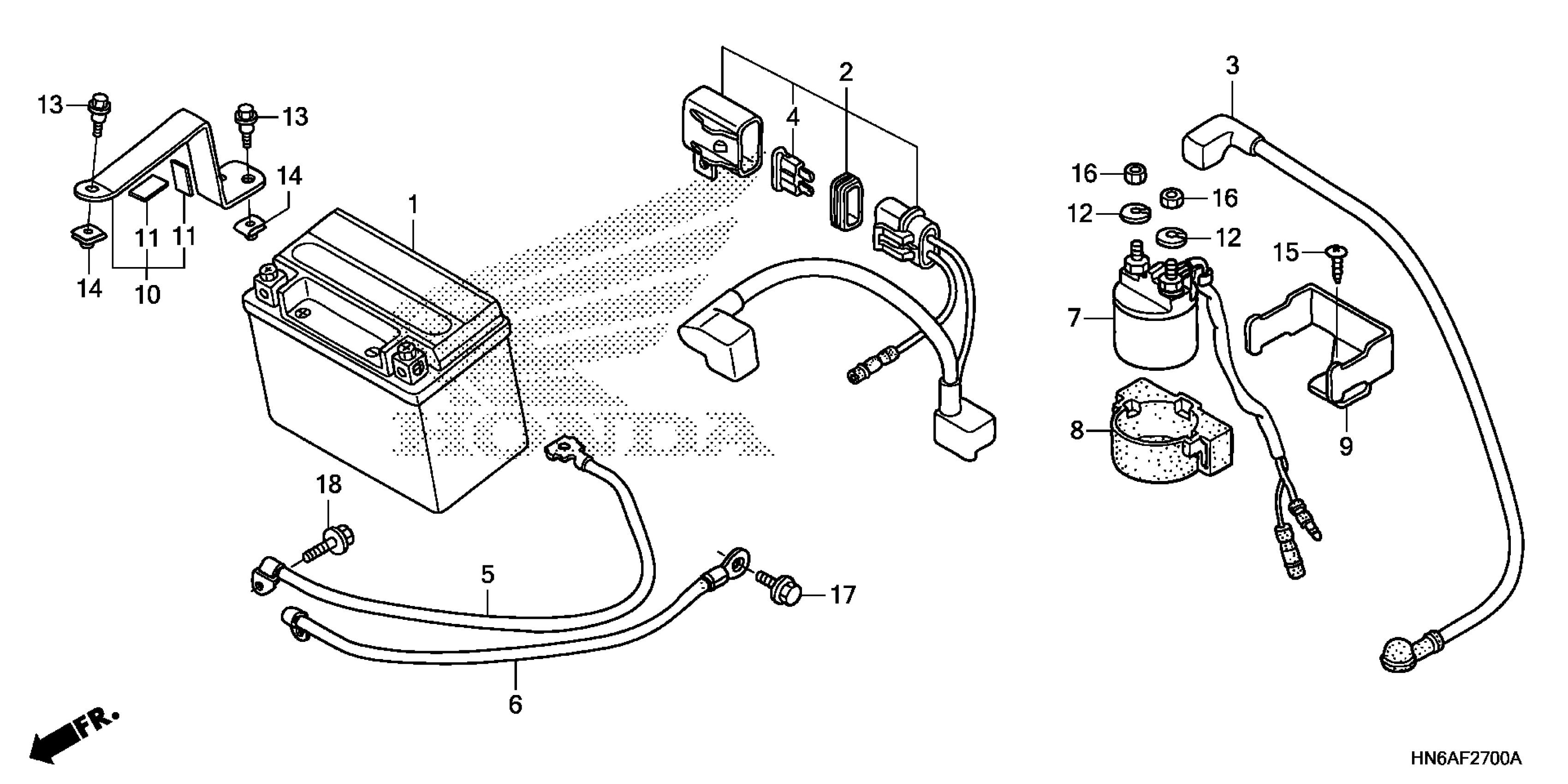

Honda TRX250XAC (13) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-D4300001 TO 1HFTE270-D4399999 BATTERY Diagram

BATTERY (YTX9-BS) (YUASA) (MSDS)

31500-HN1-003AH

Unavailable

CABLE, STARTER BATTERY

32401-HN6-000

$64.47

CABLE, STARTER MOTOR

32402-HN6-000

$109.39

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49

CABLE, BATTERY GROUND

32601-HN6-A30

$42.50

CABLE, FRAME GROUND

32603-HM8-B00

$37.54

SWITCH ASSY., STARTER MAGNETIC

35850-HM8-A41

$55.21

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

STAY, STARTER MAGNETIC

50326-HC4-000

$8.61

BAND, BATTERY

50326-HN6-000

$7.44

RUBBER, RR. COWL

83856-GT4-940

$3.76

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

BOLT, FLANGE (6MM)

90111-147-000

$2.75

NUT, CLIP (6MM)

90673-SB2-000

$6.96

SCREW, TAPPING (5X12)

93903-25220

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
