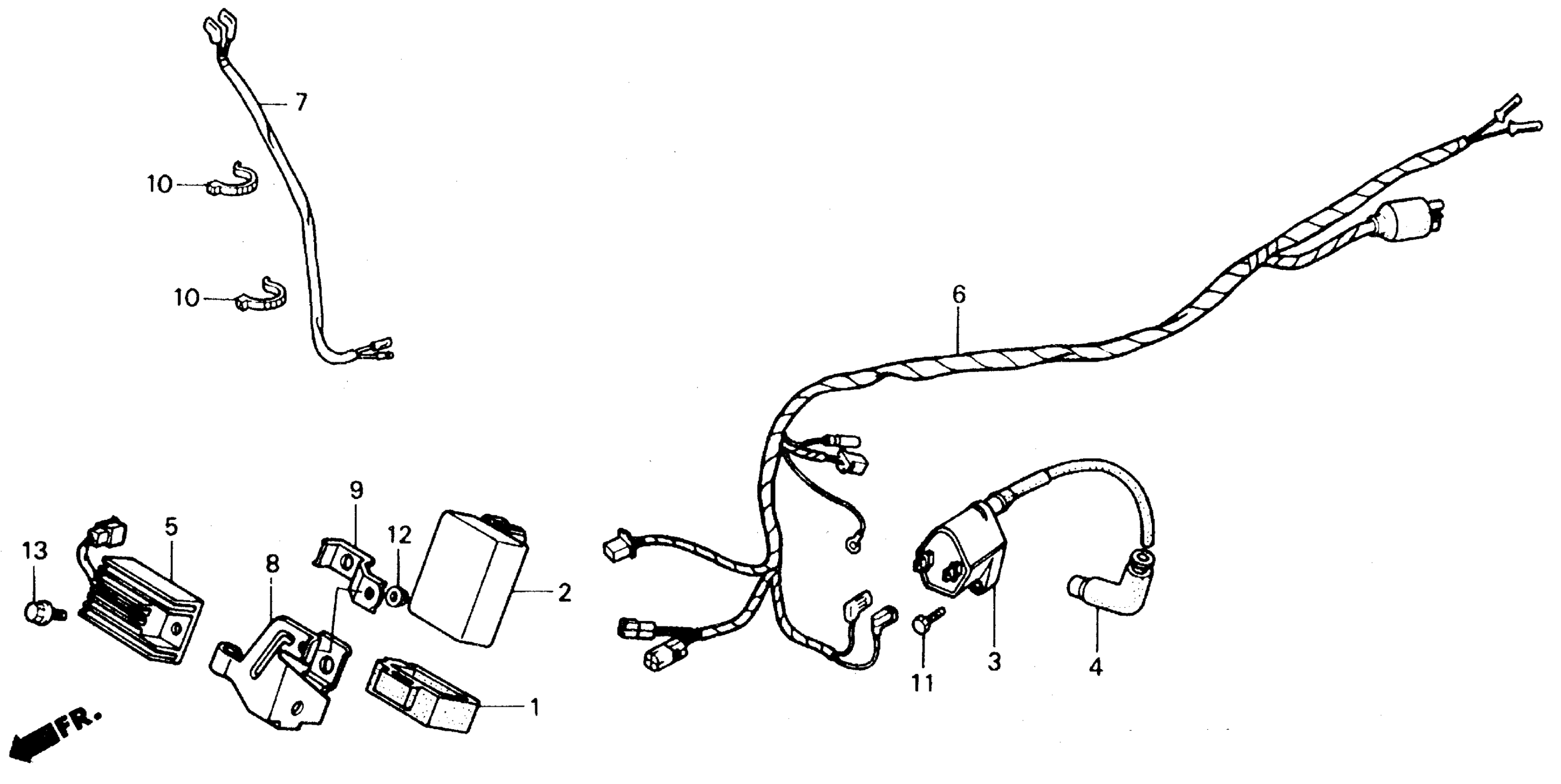

Honda TRX250XA (92) FOURTRAX 250X, JPN, VIN# JH3TE130-NM400001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.21

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KYY-900

$4.21

2

MODULE, IGNITION CONTROL (CDI)

30410-HC0-003

Unavailable

3

COIL, IGNITION (TOYO) (NOT AVAILABLE)

30510-HC0-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

5

REGULATOR, A.C. This part replaces 31410-HB5-671.

31410-KZ1-680

Unavailable

5

REGULATOR, A.C.

31410-KZ1-680

Unavailable

6

WIRE HARNESS (NOT AVAILABLE)

32100-HC0-010

Unavailable

8

BRACKET, IGNITION CONTROL MODULE (NOT AVAILABLE)

50301-HC0-000

Unavailable

9

BRACKET, IGNITION CONTROL MODULE HOLDER (NOT AVAILABLE)

50302-HC0-010

Unavailable

11

BOLT, HEX. (5X22) (SOURCE: VINTAGE PARTS INC.)

92201-05022-0A

Unavailable

12

NUT, FLANGE (6MM)

94050-06080

$1.49

13

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
