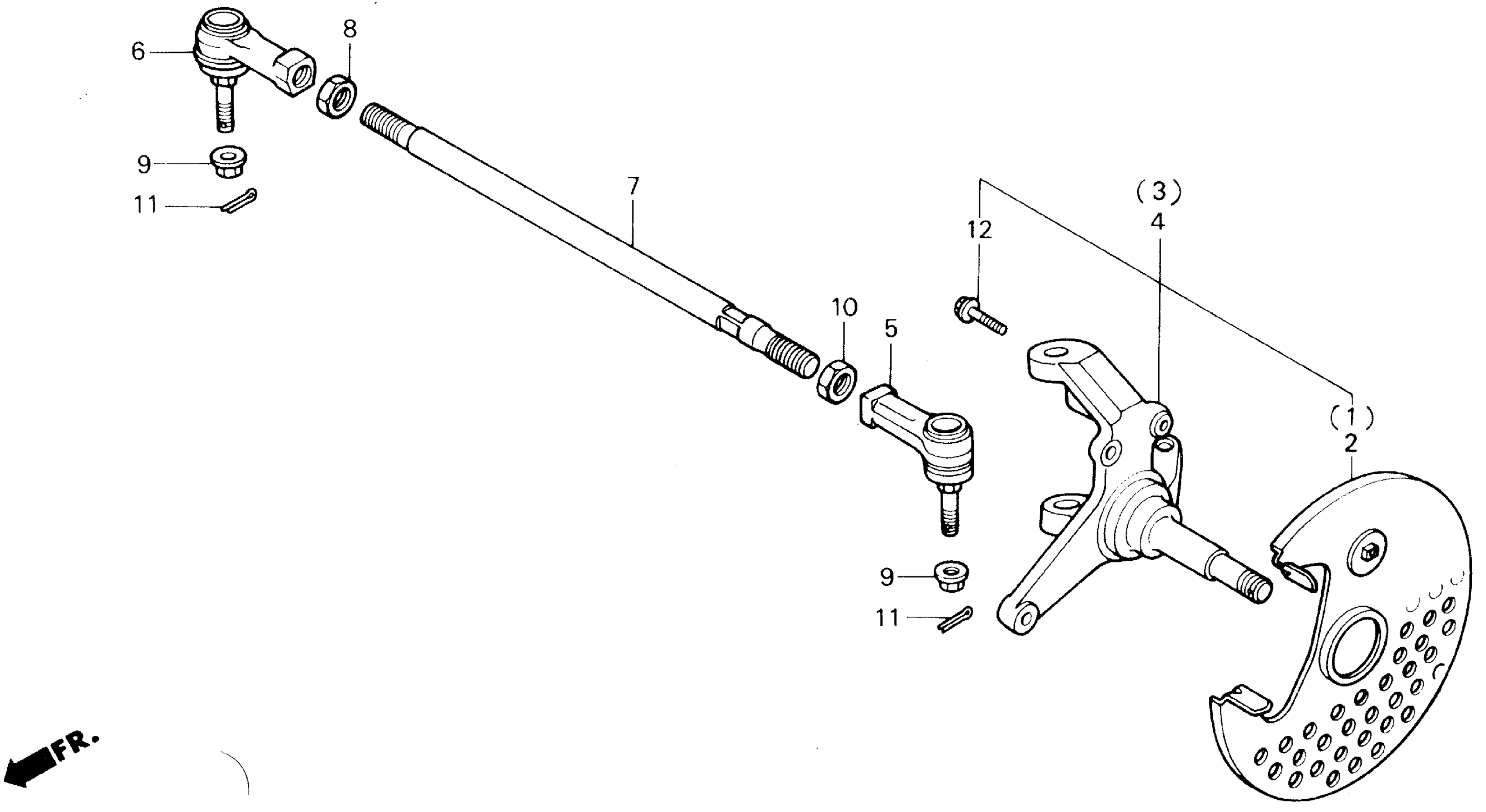

Honda TRX250XA (92) FOURTRAX 250X, JPN, VIN# JH3TE130-NM400001 TIE ROD Diagram

#

Description
Price

1

SPLASH GUARD, R. FR. BRAKE

45255-HC0-000

$64.69

2

SPLASH GUARD, L. FR. BRAKE

45256-HC0-000

$64.69

3

KNUCKLE, R.

51210-HC0-780

Unavailable

4

KNUCKLE, L.

51220-HC0-780

Unavailable

5

END, TIE ROD This part replaces 53157-HB9-003.

53157-HB9-004

Unavailable

6

END, TIE ROD (LEFT HAND THREAD) This part replaces 53158-HB9-003.

53158-HB9-004

Unavailable

6

END, TIE ROD (LEFT HAND THREAD)

53158-HB9-004

Unavailable

7

TIE ROD This part replaces 53521-HC0-003.

53521-HC0-004

$19.98

7

TIE ROD

53521-HC0-004

$19.98

8

NUT, TIE ROD LOCK (LEFT HAND THREAD)

53526-679-000

$3.10

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

10

NUT, HEX. (12MM)

94031-12280

$1.49

11

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$1.49

11

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$1.49

11

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

11

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$1.49

11

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$1.49

11

PIN, COTTER (1.6X25)

94201-16250

$1.49

12

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
