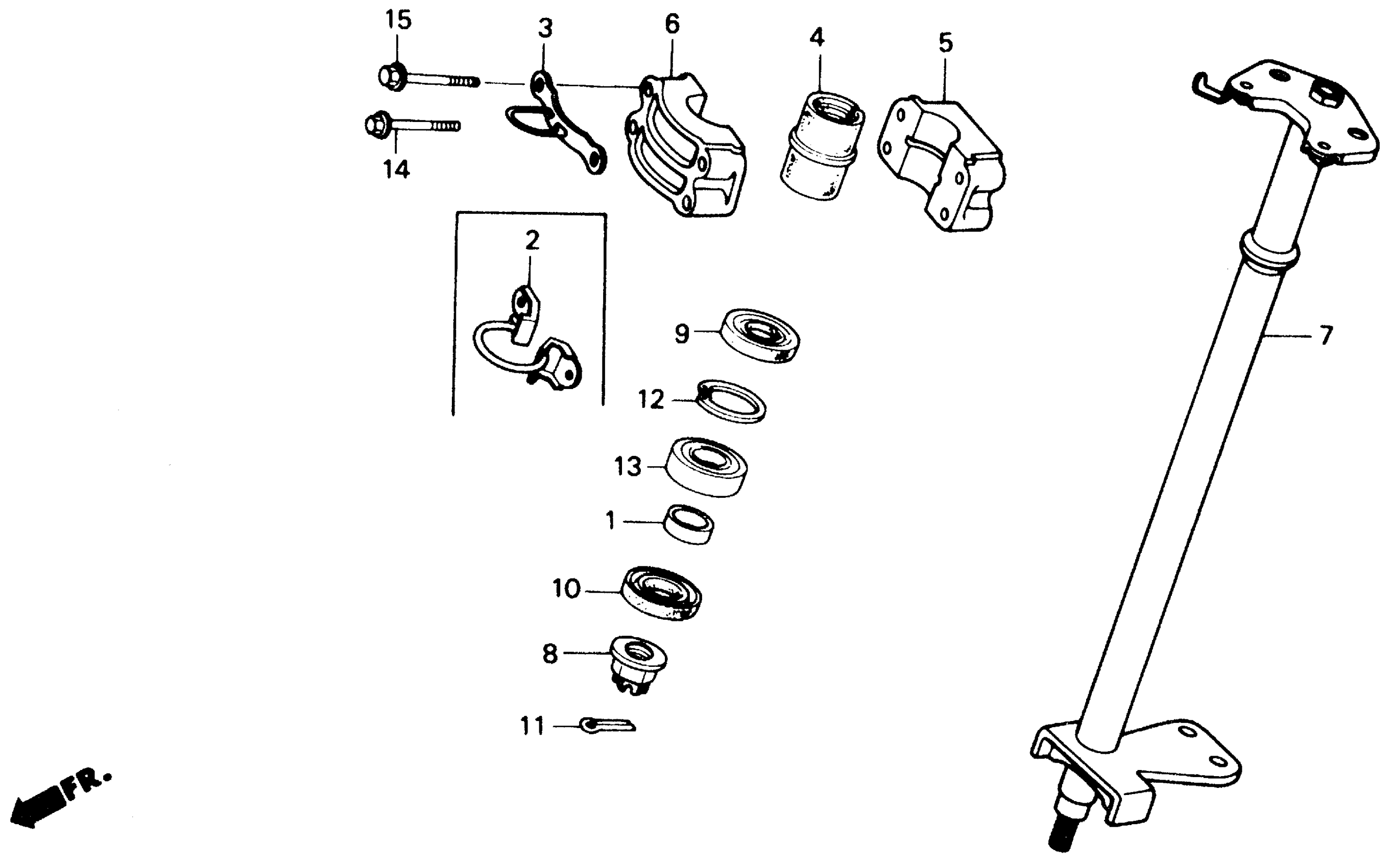

Honda TRX250XA (92) FOURTRAX 250X, JPN, VIN# JH3TE130-NM400001 STEERING SHAFT Diagram

COLLAR, STEERING SHAFT

53317-HB9-000

Unavailable

CLIP, FR. BRAKE (UPPER)

45461-HC0-670

Unavailable

BUSH, STEERING (YAMASHITA)

53221-HB9-670

$34.70

HOLDER, STEERING SHAFT (INNER)

53223-HB3-000

Unavailable

HOLDER, STEERING SHAFT (OUTER)

53224-HB3-000

Unavailable

SHAFT, STEERING (NOT AVAILABLE)

53310-HC0-010

Unavailable

NUT, U (14MM)

90305-GE8-003

$3.86

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$8.66

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$8.66

DUST SEAL (35X20X7) (ARAI)

91257-HB3-003

$8.80

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

BEARING, RADIAL BALL (6203UU)

96150-62033-10

$18.12

BOLT, FLANGE (8X55)

96300-08055-00

$2.39

BOLT, FLANGE (8X55)

96300-08055-00

$2.39
