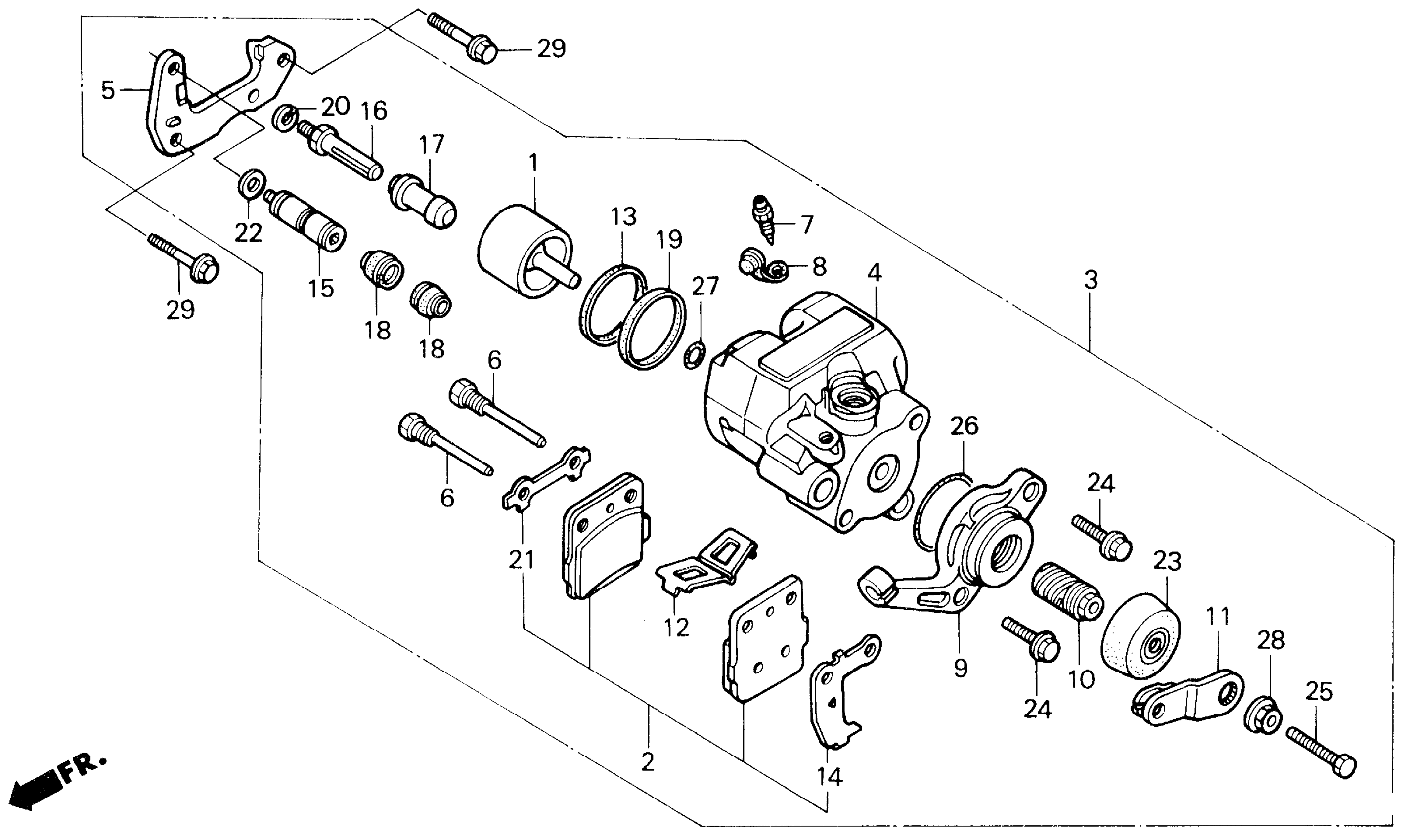

Honda TRX250XA (92) FOURTRAX 250X, JPN, VIN# JH3TE130-NM400001 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, RR. (NISSIN) This part replaces 431A0-HA5-670.

43120-HA5-305

$43.85

NI

PAD SET, RR. (NISSIN)

43120-HA5-305

$43.85

1

PISTON (NISSIN)

43109-HC0-681

$115.97

2

PAD SET, RR. (NISSIN)

43120-HA5-305

$43.85

2

PAD SET, RR. (NISSIN) This part replaces 43120-HA5-670.

43120-HA5-305

$43.85

3

CALIPER ASSY., RR. (NISSIN) (NOT AVAILABLE)

43200-HC0-681

Unavailable

4

CALIPER, RR. (NOT AVAILABLE)

43201-HA5-026

Unavailable

5

BRACKET, RR.

43210-HC0-671

Unavailable

6

PIN, HANGER This part replaces 43215-HC0-671.

45215-166-006

$13.51

6

PIN, HANGER

45215-166-006

$13.51

7

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

8

CAP, BLEEDER

43353-461-771

$5.05

9

BRAKE, PARKING (NISSIN) (NOT AVAILABLE)

43360-HC0-006

Unavailable

10

SHAFT, L.

43361-961-006

$17.88

11

ARM

43362-HA2-006

Unavailable

12

SPRING, PAD

45108-166-006

$7.46

14

SHIM

45114-GE3-601

$5.92

15

PIN, SLIDE

45115-166-006

$17.27

16

BOLT, PIN

45131-166-016

$7.63

17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

18

BOOT, PIN

45133-166-016

$3.85

20

WASHER, WAVE

45216-166-006

$2.34

21

WASHER, TONGUED

45217-166-006

$5.33

22

WASHER, CONICAL SPRING

45218-166-006

$3.78

23

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

23

DUST SEAL, MASTER CYLINDER This part replaces 46184-611-010.

46184-611-000

$10.61

24

BOLT (8X25)

90116-410-006

$6.07

25

BOLT (8X40)

90126-961-006

$5.16

26

O-RING (31)

91357-964-006

$4.31

27

O-RING (P8)

91358-964-006

$2.39

28

NUT-WASHER (8MM)

94071-08080

$1.49

29

BOLT, FLANGE (8X28)

90102-KV3-700

$3.92
