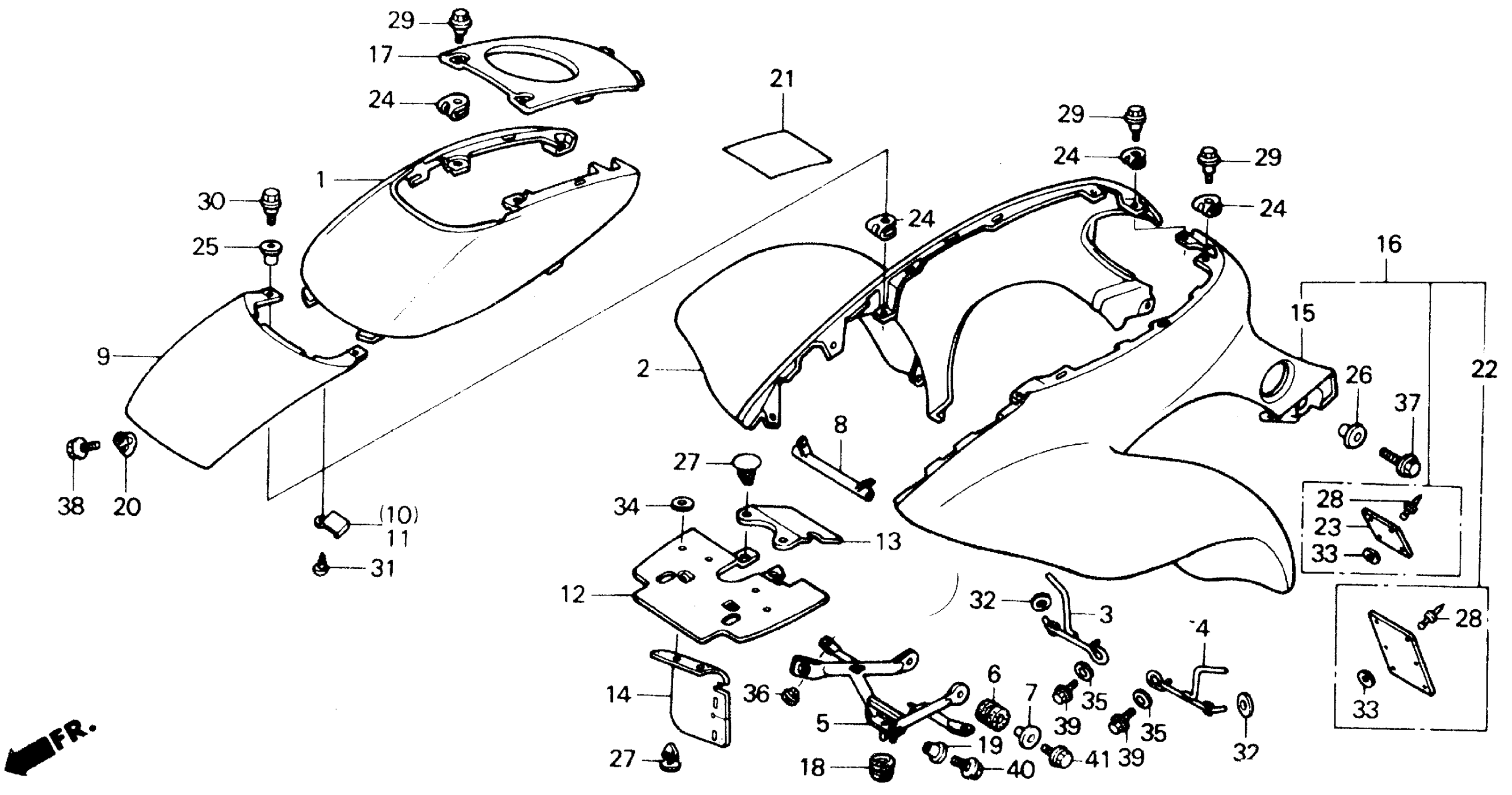

Honda TRX250XA (92) FOURTRAX 250X, JPN, VIN# JH3TE130-NM400001 FRONT FENDER Diagram

#

Description
Price

1

COVER, FUEL TANK *NH138* (SHASTA WHITE) (NOT AVAILABLE)

17610-HC0-670ZA

Unavailable

2

FENDER, R. FR. *PB198* (NEO BLUE) (NOT AVAILABLE)

61100-HC0-670ZA

Unavailable

3

STAY, R. FR. FENDER SUPPORT

61101-HC0-670

$21.19

4

STAY, L. FR. FENDER SUPPORT

61102-HC0-670

Unavailable

5

STAY, FR. FENDER

61103-HC0-000

Unavailable

6

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.13

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.28

7

COLLAR, FR. FENDER (WHITE)

61104-428-010

$4.28

7

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.01

8

PIPE, FR. FENDER CROSS

61109-HC0-000

Unavailable

9

COVER, FR. *PB198* (NEO BLUE) (NOT AVAILABLE)

61110-HC0-670ZA

Unavailable

10

PLATE, R. FR. FENDER SETTING

61111-HC0-000

Unavailable

11

PLATE, L. FR. FENDER SETTING

61112-HC0-000

$7.31

12

GUIDE, FR. AIR

61120-HC0-010

Unavailable

13

GUIDE, RR. AIR

61121-HC0-000

Unavailable

14

FENDER (INNER)

61122-HC0-000

Unavailable

16

FENDER, L. FR. *PB198* (NEO BLUE) (NOT AVAILABLE)

61200-HC0-670ZA

Unavailable

17

COVER, TANK CENTER *NH138* (SHASTA WHITE) (NOT AVAILABLE)

61701-HC0-670ZA

Unavailable

18

RUBBER, RR. FENDER CUSHION

80101-283-000

$5.42

20

NUT, FENDER SETTING

84601-HA7-670

$5.28

23

LABEL, SIXTEEN AGE RECOMMEND WARNING

87704-HC0-670

$17.16

24

NUT, SPRING (5MM)

90320-HB9-000

$2.97

25

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.46

27

CLIP, COVER (LOWER)

90685-SA5-003

$9.50

28

RIVET, POP (3.2)

90841-HF1-670

$1.50

29

BOLT, FENDER SETTING (5X11.5)

91509-HC0-000

$3.71

30

BOLT, HEX. (5X14)

92101-05014-0A

$0.90

31

SCREW, TAPPING (4X12)

93903-24380

Unavailable

32

WASHER, PLAIN (8MM)

94101-08000

$0.76

33

WASHER, PLAIN (3MM)

94103-03800

$0.79

34

WASHER, PLAIN (6MM)

94103-06000

$0.91

35

WASHER, PLAIN (6MM)

94103-06000

$0.91

36

RUBBER C, STAND STOPPER

95011-63000

$3.73

37

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.05

38

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

39

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

40

BOLT, FLANGE (6MM)

90110-MG9-700

$4.24

41

BOLT, FLANGE (6X20)

95701-06020-00

$1.63
