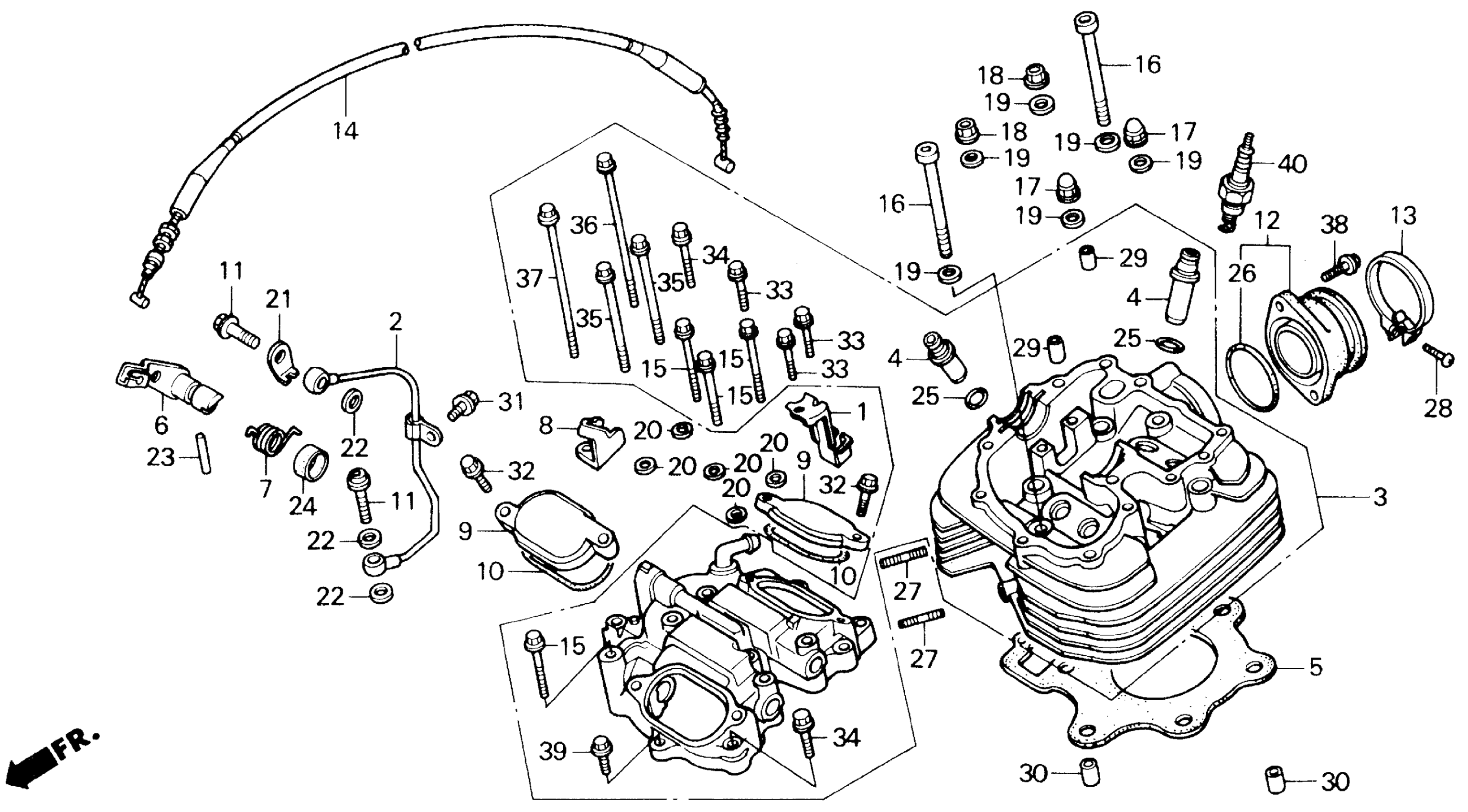

Honda TRX250XA (92) FOURTRAX 250X, JPN, VIN# JH3TE130-NM400001 CYLINDER HEAD Diagram

#

Description
Price

1

CLAMP, BREATHER TUBE (NOT AVAILABLE)

11106-HC0-000

Unavailable

2

PIPE, OIL PASSAGE

11335-HC0-000

Unavailable

3

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12000-HC0-020

Unavailable

4

GUIDE, VALVE (O.S)

12233-HA5-305

$19.92

5

GASKET, CYLINDER HEAD (NIPPON LEAKLESS) This part replaces 12251-HC0-003.

12251-HC0-013

$35.06

5

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-HC0-013

$35.06

5

GASKET, CYLINDER HEAD (O.S) | (Optional).

12252-HC0-305

$35.57

6

LIFTER, VALVE (NOT AVAILABLE)

12319-HC0-000

Unavailable

7

SPRING, VALVE LIFTER (NOT AVAILABLE)

12321-HA5-000

Unavailable

8

RECEIVER, DECOMPRESSION CABLE (NOT AVAILABLE)

12323-HC0-000

Unavailable

9

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$37.87

10

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

11

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$10.35

12

INSULATOR, CARBURETOR (KOYO)

16211-HC0-003

$46.70

13

BAND, INSULATOR

16219-422-000

$12.72

14

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-HC0-000

Unavailable

15

BOLT, FLANGE (6X52)

90009-HA0-000

$4.24

16

BOLT, SOCKET (10X110)

90064-HC0-000

$12.69

17

NUT, CAP (10MM)

90201-HA0-000

$6.45

17

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

18

NUT, CAP (10MM)

90201-HA0-000

$6.45

18

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

19

WASHER (10MM)

90410-HC4-000

$3.81

20

WASHER, SEALING (6MM)

90441-706-000

$1.49

21

WASHER, LOCK (8MM)

90443-HC0-003

$8.80

22

WASHER C (8MM)

90475-703-000

$1.49

23

PIN, DOWEL (5X28)

91101-428-000

$3.83

24

OIL SEAL (17X27X5) (KOYO) This part replaces 91201-428-005.

91202-HC5-005

$3.56

24

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

25

O-RING (10X1.6)

91301-200-000

$3.01

26

O-RING (35.4X2.9)

91305-HA5-000

$9.55

27

BOLT, STUD (8X25)

92900-08025-0B

$2.20

28

SCREW, PAN (5X20)

93500-05020-0G

$1.49

29

PIN, DOWEL (8X12)

90701-HC4-000

$2.92

30

PIN, DOWEL (12X20)

94301-12200

$2.29

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

32

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

33

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

34

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

35

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

36

BOLT, FLANGE (6X115)

95701-06115-00

$3.09

37

BOLT, FLANGE (6X140)

95701-06140-00

$2.92

38

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

39

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

40

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

40

SPARK PLUG

98069-38719

$2.62

40

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.44

40

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.44

40

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.44

40

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.50

40

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.50

40

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

40

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.54
