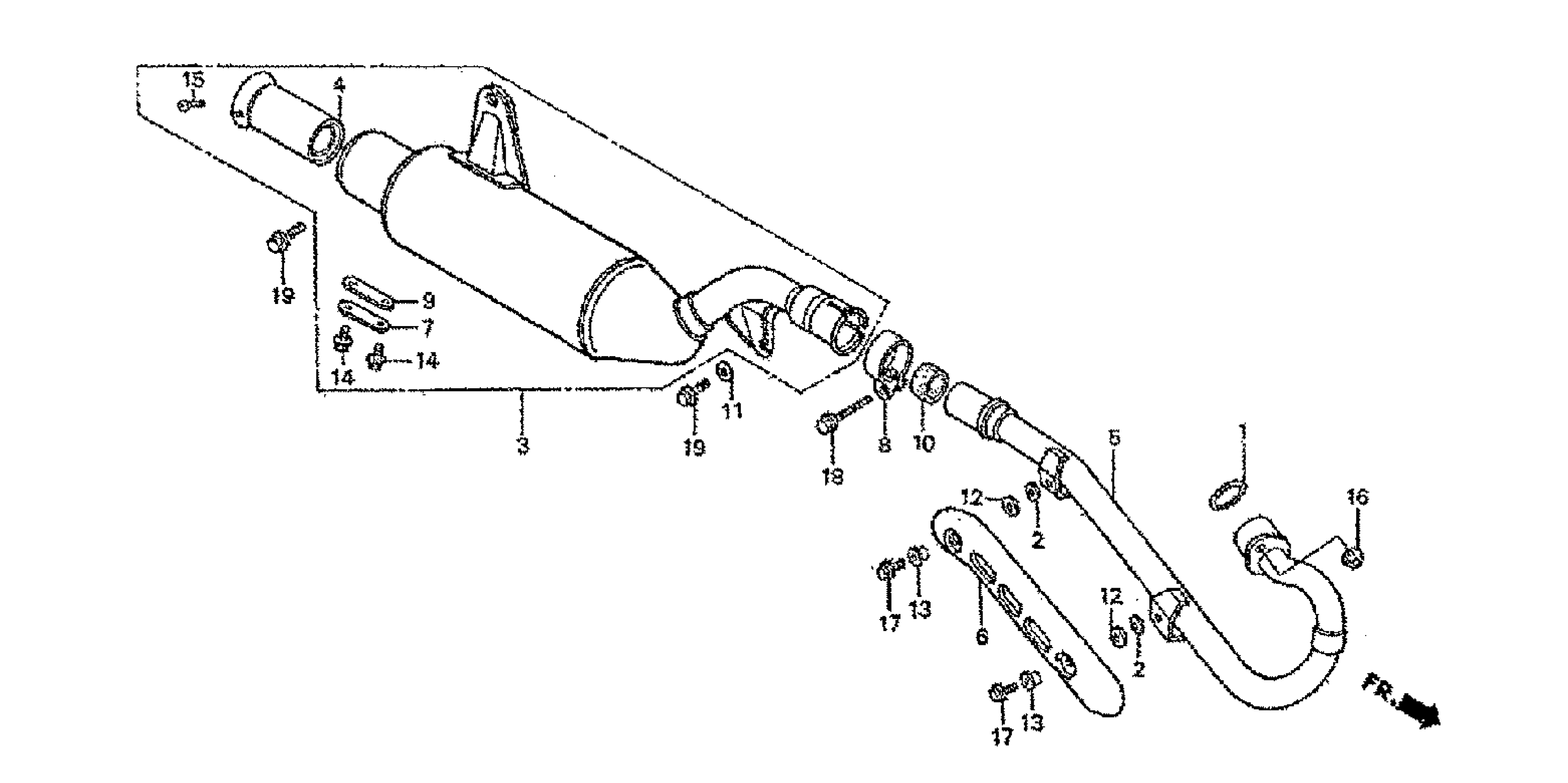

Honda TRX250XA (91) FOURTRAX 250X, JPN, VIN# JH3TE130-MK300004 TO JH3TE130-MK310158 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$5.07

2

GASKET, PROTECTOR

18293-MCA-780

$4.63

2

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.63

2

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.63

3

MUFFLER This part replaces 18310-HC0-670.

18310-HM3-000

Unavailable

3

MUFFLER This part replaces 18310-HC0-671.

18310-HM3-000

Unavailable

3

MUFFLER This part replaces 18310-HC0-680.

18310-HM3-000

Unavailable

3

MUFFLER

18310-HM3-000

Unavailable

4

PIPE, TAIL

18311-MA0-010

$61.60

5

PIPE, EX. (NOT AVAILABLE)

18320-HC0-013

Unavailable

6

PROTECTOR, EX. PIPE

18321-HC0-000

$42.83

7

LID, MUFFLER

18373-429-010

$8.43

8

BAND, L. EX. PIPE

18374-MB6-003

Unavailable

9

GASKET, MUFFLER LID

18374-MN1-880

$4.01

9

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.01

10

GASKET, MUFFLER

18391-MN5-650

$18.92

10

GASKET, MUFFLER This part replaces 18391-310-000.

18391-MN5-650

$18.92

10

GASKET, MUFFLER This part replaces 18391-310-306.

18391-MN5-650

$18.92

11

WASHER, PLAIN (10MM)

90401-437-000

$2.59

13

COLLAR, RR. COVER

90554-GC3-000

$2.32

14

BOLT-WASHER (6X12)

93401-06012-07

$1.50

14

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.50

14

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.50

15

SCREW-WASHER (6X12)

93891-06012-07

$1.18

16

NUT, FLANGE (8MM)

94050-08020

$1.85

17

BOLT, FENDER (6X12) (SOURCE: VINTAGE PARTS INC.)

90101-HC0-000

Unavailable

18

BOLT, FLANGE (8X35)

96300-08035-00

$1.81

19

BOLT, FLANGE (10X16) (SOURCE: VINTAGE PARTS INC.)

96300-10016-00

Unavailable
