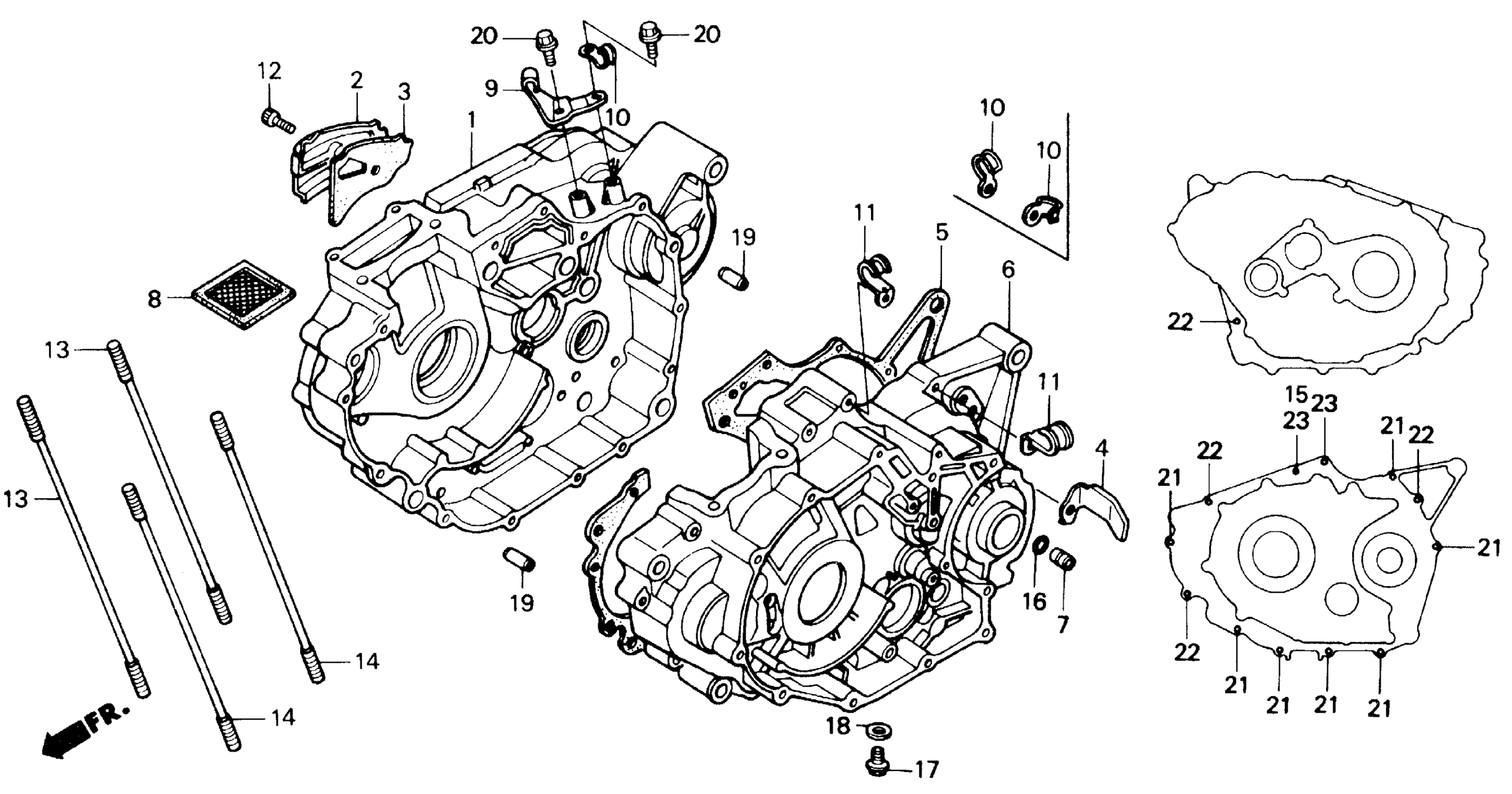

Honda TRX250XA (91) FOURTRAX 250X, JPN, VIN# JH3TE130-MK300004 TO JH3TE130-MK310158 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (SOURCE: VINTAGE PARTS INC.)

11100-HC0-000

$296.17

2

PLATE, BREATHER

11104-HA5-000

Unavailable

3

GASKET, BREATHER PLATE This part replaces 11105-HA5-000.

11105-HA5-306

Unavailable

4

CLAMP, BREATHER TUBE (B)

11107-HC0-000

$7.03

5

GASKET, CRANKCASE (NOT AVAILABLE) This part replaces 11191-HC0-000.

11191-HC0-680

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE)

11200-HC0-000

Unavailable

7

ORIFICE, TRANSMISSION (NOT AVAILABLE)

11212-HC0-000

Unavailable

8

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

9

HOLDER, CLUTCH WIRE (NOT AVAILABLE)

22838-HC0-000

Unavailable

10

CLAMP, WIRE (NOT AVAILABLE)

32922-MB2-000

Unavailable

11

CLIP A, HARNESS (NOT AVAILABLE)

50305-MK7-000

Unavailable

12

BOLT, SOCKET (6X12)

90003-HA0-003

$2.61

13

BOLT, STUD (10X166)

90031-HC0-000

$11.54

14

BOLT, STUD (10X158)

90032-HC0-000

$15.15

15

WASHER, SEALING (6MM)

90441-706-000

$1.49

16

O-RING (5.5X1.4)

91319-ME5-003

$1.85

17

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN, DOWEL (10X16)

94301-10160

$2.28

20

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

21

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

22

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

22

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

23

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
