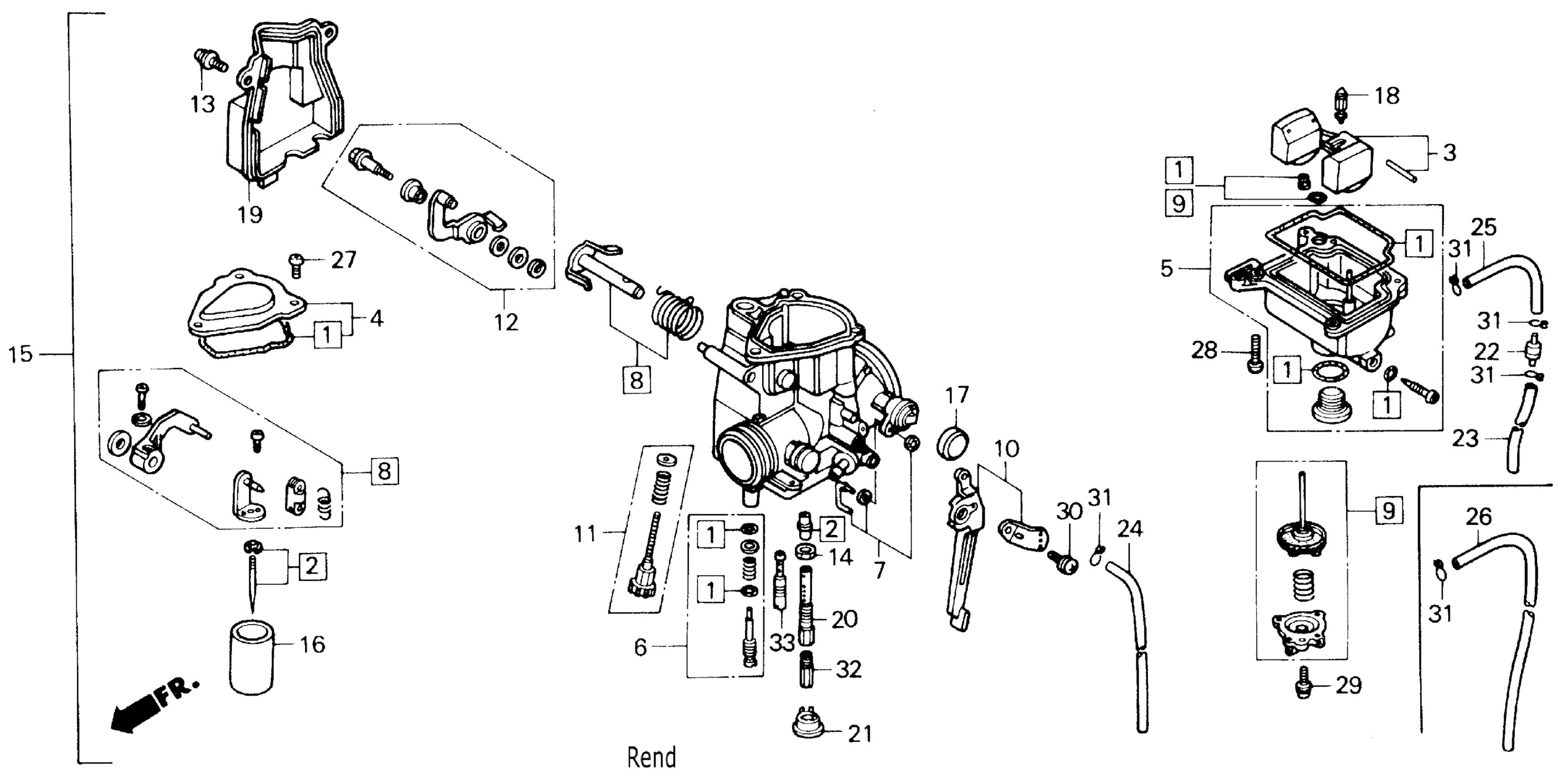

Honda TRX250XA (91) FOURTRAX 250X, JPN, VIN# JH3TE130-MK300004 TO JH3TE130-MK310158 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-HC0-003.

16010-HM3-A61

$27.92

1

GASKET SET

16010-HM3-A61

$27.92

1

GASKET SET This part replaces 16010-HM3-L00.

16010-HM3-A61

$27.92

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-HC0-670

Unavailable

3

FLOAT SET

16013-KR3-980

$55.27

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

TOP SET This part replaces 16014-HA0-003.

16014-HM3-L00

Unavailable

4

TOP SET

16014-HM3-L00

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-HC0-003.

16015-HM3-A61

Unavailable

5

CHAMBER SET, FLOAT

16015-HM3-A61

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-HM3-L00.

16015-HM3-A61

Unavailable

6

SCREW SET (NOT AVAILABLE)

16016-HC0-670

Unavailable

7

ROD SET, CHOKE This part replaces 16017-HC0-003.

16017-HM3-L00

Unavailable

7

ROD SET, CHOKE

16017-HM3-L00

Unavailable

8

ARM SET, LINK (NOT AVAILABLE)

16018-HA7-771

Unavailable

9

DIAPHRAGM SET, PUMP This part replaces 16021-HC0-003.

16021-HM3-L00

$88.02

9

DIAPHRAGM SET, PUMP

16021-HM3-L00

$88.02

10

LEVER SET, CHOKE (NOT AVAILABLE)

16025-HC0-003

Unavailable

11

SCREW SET This part replaces 16028-MK4-603.

16028-KL8-900

Unavailable

12

ARM SET, PUMP This part replaces 16031-HC0-003.

16031-HM3-L00

$82.33

13

SCREW-WASHER

16080-HC0-003

$4.15

14

NUT, HEX.

16096-HC0-003

$4.15

15

CARBURETOR ASSY. (QB01B A) (NOT AVAILABLE)

16100-HC0-670

Unavailable

16

VALVE, THROTTLE

16111-HC0-003

Unavailable

17

CAP, CHOKE DUST

16148-141-881

$4.75

18

VALVE, FLOAT

16155-397-971

$41.45

19

COVER, BODY

16160-HC0-003

Unavailable

20

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-HC0-003

Unavailable

21

HOLDER, JET

16168-HC4-003

$12.24

21

HOLDER, JET This part replaces 16168-HC4-004.

16168-HC4-003

$12.24

22

VALVE, ONE-WAY

16180-HC4-003

$18.02

23

TUBE (NOT AVAILABLE)

16198-HC0-003

Unavailable

24

TUBE, FUEL This part replaces 16199-GJ3-601.

16199-KG4-405

$9.49

24

PIPE, OVERFLOW

16199-KG4-405

$9.49

25

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

25

TUBE, FUEL This part replaces 16199-HC0-003.

16199-KG4-405

$9.49

25

TUBE

16199-KG4-405

$9.49

27

SCREW, PAN (4X8)

93500-04008-0H

$1.49

27

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

28

SCREW, PAN (4X14)

93500-04014-0H

$1.49

28

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

29

SCREW-WASHER (4X12)

93892-04012-08

$1.49

29

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

30

SCREW-WASHER (5X10)

93892-05010-18

$1.49

31

CLIP, TUBE (B7)

95002-02070

$1.80

32

JET, MAIN (#118) | (Optional).

99101-357-1180

$9.43

32

JET, MAIN (#122)

99101-357-1220

$17.99

33

JET, SLOW (#38) (NOT AVAILABLE)

99103-KR3-0380

Unavailable
