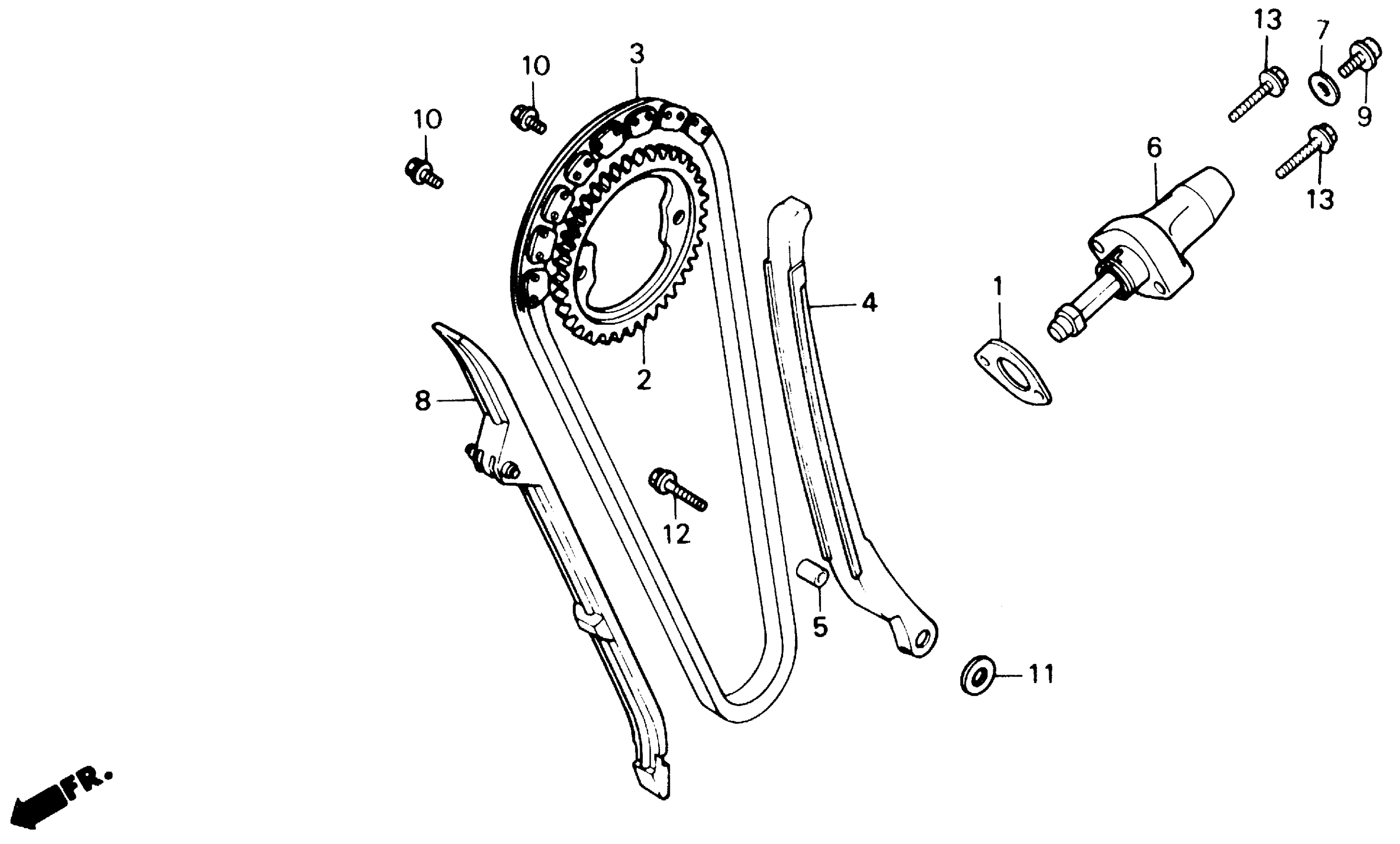

Honda TRX250XA (91) FOURTRAX 250X, JPN, VIN# JH3TE130-MK300004 TO JH3TE130-MK310158 CAM CHAIN Diagram

#

Description

Price

1

GASKET, TENSIONER HOLE This part replaces 12194-HA0-000.

12194-HC5-740

$2.29

1

GASKET, TENSIONER HOLE This part replaces 12194-HA0-306.

12194-HC5-740

$2.29

1

GASKET, TENSIONER HOLE

12194-HC5-740

$2.29

2

SPROCKET, CAM (38T)

14321-MN1-670

$35.85

3

CHAIN, CAM (110L) (BORG WARNER)

14401-HC0-003

$167.44

4

TENSIONER, CAM CHAIN (KOYO)

14511-HC4-005

$75.05

5

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.53

6

LIFTER ASSY., TENSIONER

14520-HA0-771

$108.08

7

WASHER, SEALING (6MM)

90442-397-000

$2.60

8

GUIDE, CAM CHAIN (KOYO)

14620-HC4-005

$44.48

9

BOLT, FLANGE (6X13)

90002-HA7-670

$4.05

10

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.82

11

WASHER, DRUM STOPPER

90417-360-000

$1.60

12

BOLT, FLANGE (6X25)

95801-06025-00

$1.00

13

BOLT, FLANGE (6X25)

96001-06025-00

$2.49
