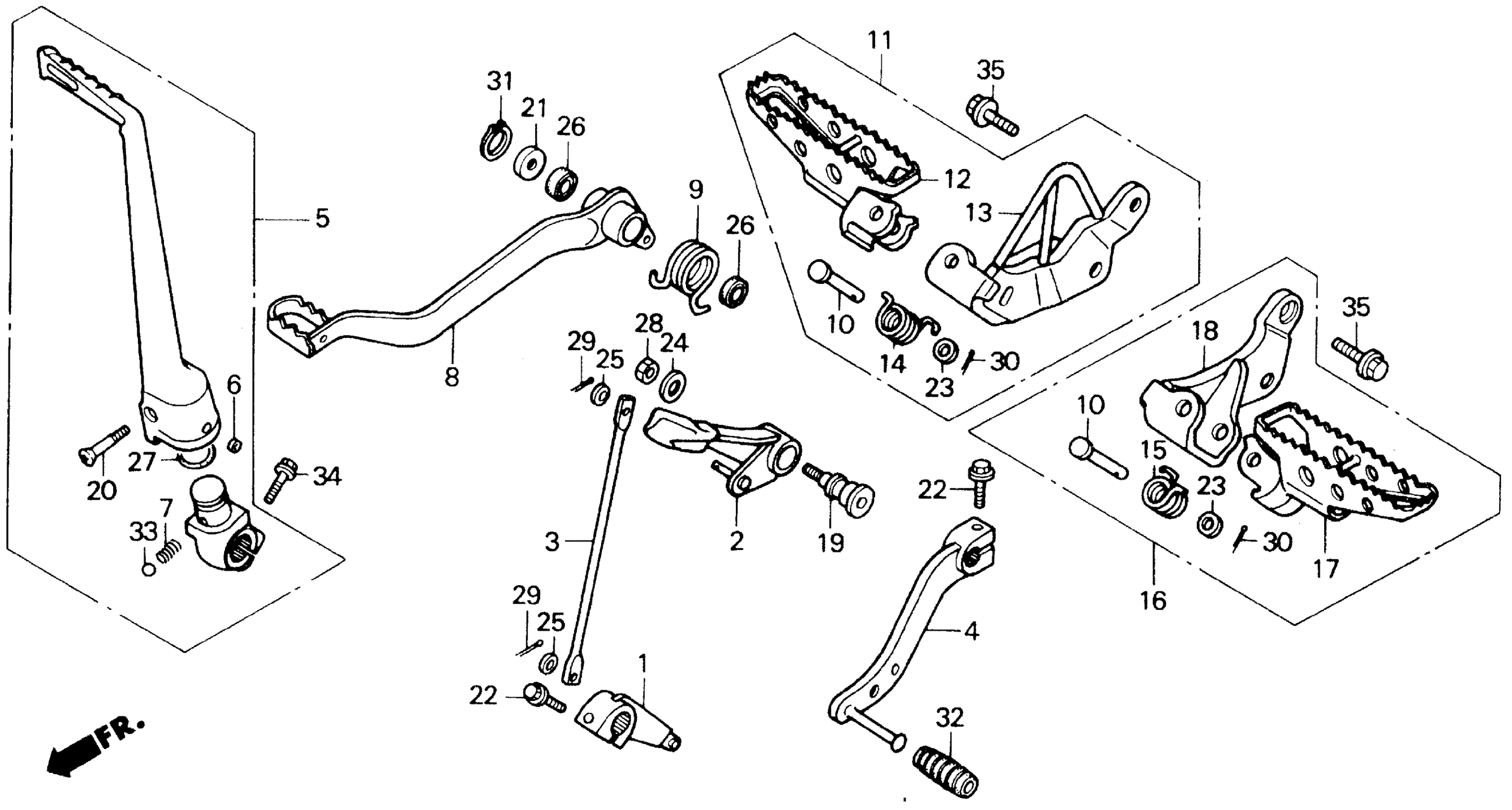

Honda TRX250XA (88) FOURTRAX 250X, JPN, VIN# JH3TE130-JK100002 TO JH3TE130-JK104166 STEP 87-88 Diagram

#

Description
Price

1

LEVER, REVERSE SHIFT (NOT AVAILABLE)

24670-HC0-000

Unavailable

2

PEDAL, REVERSE SHIFT (NOT AVAILABLE)

24671-HC0-000

$33.20

3

ROD, REVERSE SHIFT (NOT AVAILABLE)

24672-HC0-000

Unavailable

4

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-HC0-000

Unavailable

5

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-HC0-000

Unavailable

6

PLUG, KICK ARM

28302-965-000

$2.59

7

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

8

PEDAL, BRAKE

46500-HC0-000

Unavailable

9

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-HC0-000

Unavailable

10

PIN, STEP JOINT (NOT AVAILABLE)

50603-HA5-000

Unavailable

11

ARM ASSY., R. STEP (NOT AVAILABLE)

50610-HC0-000

Unavailable

12

STEP, R. (NOT AVAILABLE)

50611-HC0-000

Unavailable

13

PLATE, R. STEP (SOURCE: VINTAGE PARTS INC.)

50616-HC0-000

Unavailable

14

SPRING, R. STEP RETURN This part replaces 50617-964-000.

50617-HA0-680

Unavailable

15

SPRING, L. STEP RETURN This part replaces 50618-964-000.

50618-HA0-680

Unavailable

16

ARM ASSY., L. STEP (NOT AVAILABLE)

50640-HC0-000

Unavailable

17

STEP, L. (NOT AVAILABLE)

50641-HC0-000

Unavailable

18

PLATE, L. STEP (SOURCE: VINTAGE PARTS INC.)

50642-HC0-000

Unavailable

19

PIVOT, CHANGE PEDAL (NOT AVAILABLE)

90102-HC0-000

Unavailable

20

SCREW (6X28) (NOT AVAILABLE) | Use up to Frame SN JK104133

90104-965-003

Unavailable

20

SCREW, OVAL (6X28) (NOT AVAILABLE) | Use from Frame SN JK104134

90101-HC4-000

Unavailable

21

WASHER (17.5MM)

90117-HC0-000

$5.90

22

BOLT, FLANGE (6X20)

90118-968-000

$4.24

23

WASHER (10.2MM)

90401-430-000

$1.64

24

WASHER, SPECIAL (10MM) This part replaces 90432-HA2-000.

90432-HA2-670

$3.28

24

WASHER, SPECIAL (10MM)

90432-HA2-670

$3.28

25

WASHER (6MM) (NOT AVAILABLE)

90436-ME5-000

Unavailable

26

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

27

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

28

NUT, HEX. (8MM)

94030-08000

$1.49

29

PIN, SPLIT (1.6X10)

94201-16100

$1.49

30

PIN, SPLIT (2.0X15)

94201-20150

$1.49

31

CIRCLIP (OUTER) (17MM)

94511-17000

$1.49

32

RUBBER, CHANGE PEDAL

95011-40000

$1.49

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

34

BOLT, FLANGE (8X28) | Use up to Frame SN JK104133

96300-08028-00

$1.79

34

BOLT, FLANGE (8X28) | Use from Frame SN JK104134

96300-08028-07

$2.13

35

BOLT, FLANGE (10X35)

96400-10035-00

$2.25
