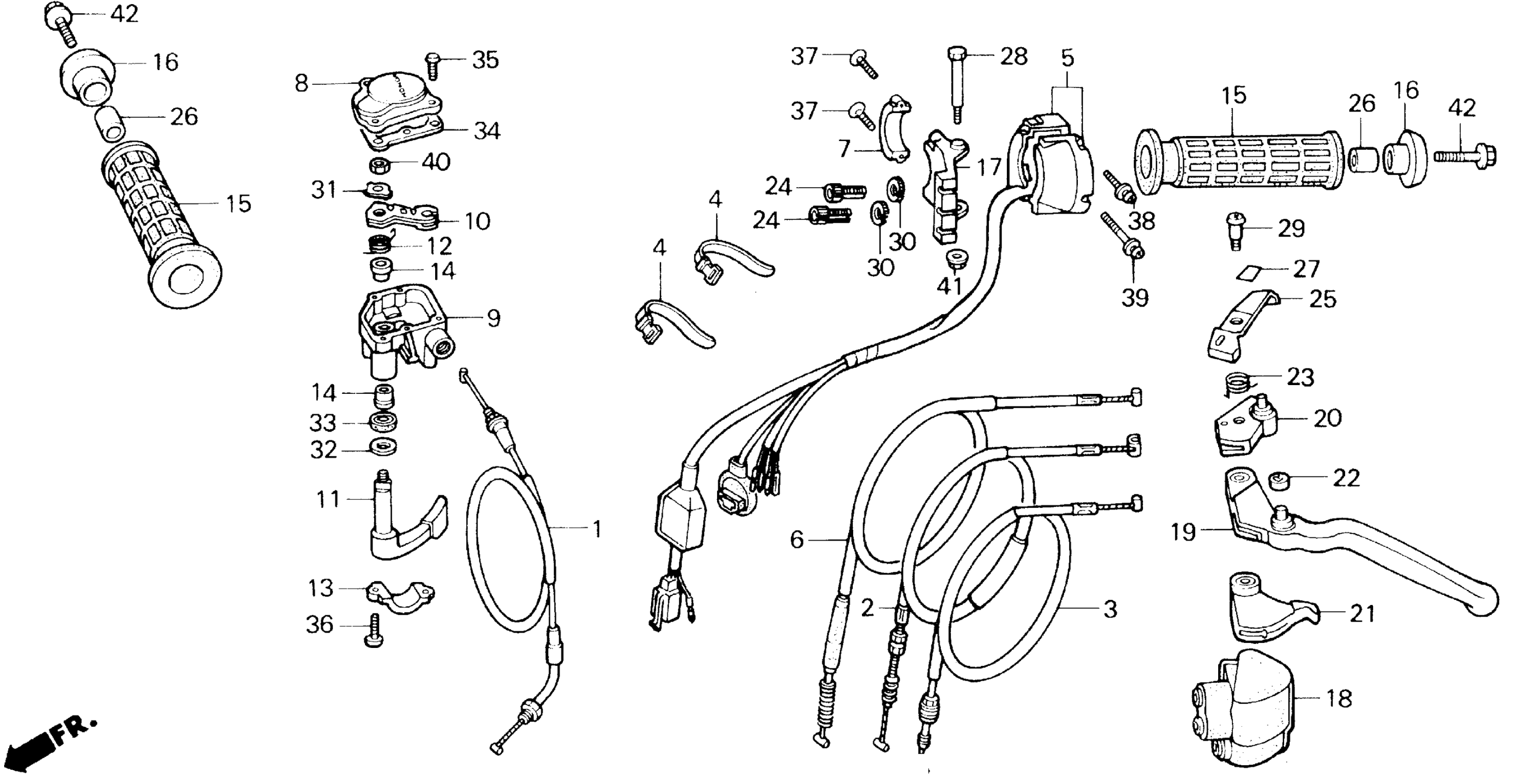

Honda TRX250XA (87) FOURTRAX 250X, JPN, VIN# JH3TE130-HK000001 TO JH3TE130-HK030684 SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-HC0-000.

17910-HC0-670

$45.03

1

CABLE, THROTTLE

17910-HC0-670

$45.03

2

CABLE, CLUTCH (NOT AVAILABLE) This part replaces 22870-HC0-010.

22870-HC0-670

Unavailable

3

CABLE, REVERSE ASSIST

22880-HC0-000

Unavailable

4

BAND B1, WIRE

32161-404-000

$2.23

5

SWITCH ASSY., LIGHTING ENGINE (NOT AVAILABLE) This part replaces 35200-HC0-000.

35200-HC0-010

Unavailable

6

CABLE, PARKING BRAKE (NIPPON) (NOT AVAILABLE)

43455-HC0-003

Unavailable

7

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-961-000

Unavailable

8

COVER, THROTTLE CASE (NOT AVAILABLE)

53141-HA0-010

Unavailable

9

CASE, THROTTLE LEVER (NOT AVAILABLE)

53142-HA0-020

Unavailable

10

ARM, THROTTLE

53144-HA0-010

$7.72

11

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

11

LEVER, THROTTLE

53145-HA0-770

$24.05

12

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

13

HOLDER, THROTTLE CASE (NOT AVAILABLE)

53147-965-000

Unavailable

14

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

15

GRIP, HANDLE

53165-958-010

$13.38

16

GUARD, HANDLE END

53167-958-680

$6.40

17

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-HC0-000

Unavailable

18

COVER, L. HANDLEBAR (NOT AVAILABLE)

53177-HC0-000

Unavailable

19

LEVER, L. HANDLEBAR

53178-HC0-000

$29.30

20

ARM ASSY., PARKING BRAKE (NOT AVAILABLE)

53180-961-010

Unavailable

21

ARM, REVERSE ASSIST

53182-HC0-000

Unavailable

22

CAP, REVERSE PIN

53187-VM6-000

$3.89

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

24

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

25

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

26

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

27

MARK, PARKING BRAKE LEVER

87574-HA5-300

$2.13

28

BOLT, HANDLE LEVER PIVOT

90113-HC0-000

Unavailable

29

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

30

NUT, FIXING

90321-315-670

$7.31

31

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

32

WASHER (9X20)

90504-HA0-000

$2.28

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

34

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

35

SCREW, PAN (4X16)

93500-04016-0G

$1.49

36

SCREW, PAN (5X18)

93500-05018-0G

$1.49

37

SCREW, OVAL (6X25) (NOT AVAILABLE)

93700-06025-0G

Unavailable

38

SCREW-WASHER (5X25)

93892-05025-07

$1.49

39

SCREW-WASHER (5X32) (NOT AVAILABLE)

93892-05032-07

Unavailable

40

NUT, HEX. (6MM)

94002-06000-0S

$1.49

41

NUT, FLANGE (6MM)

94050-06000

$1.49

42

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
