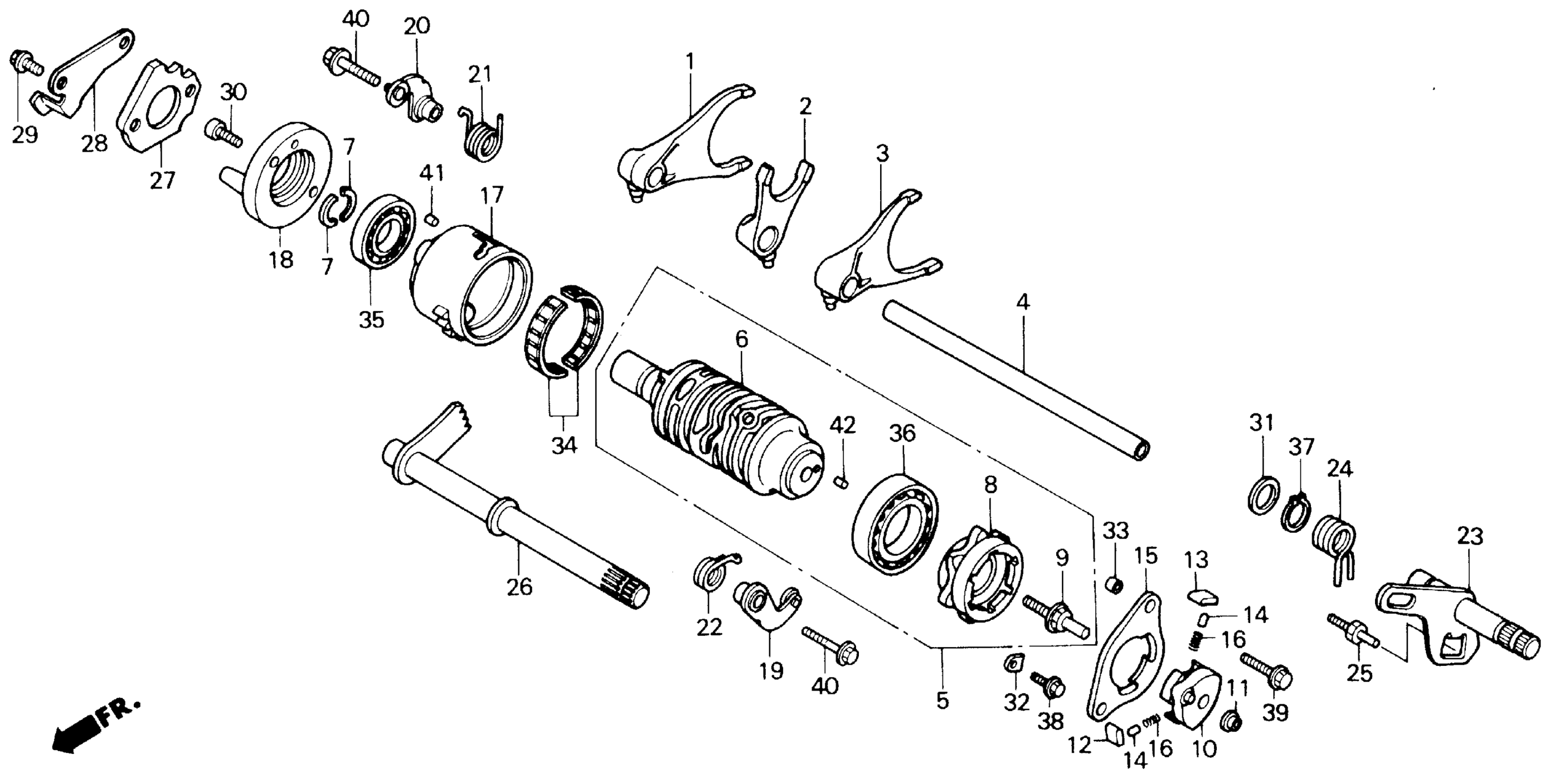

Honda TRX250XA (87) FOURTRAX 250X, JPN, VIN# JH3TE130-HK000001 TO JH3TE130-HK030684 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-HC0-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-HC0-000

Unavailable

3

FORK, L. GEARSHIFT This part replaces 24213-HC0-000.

24213-HC0-010

Unavailable

3

FORK, L. GEARSHIFT

24213-HC0-010

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24241-HC0-000

Unavailable

5

DRUM ASSY., GEARSHIFT (SOURCE: VINTAGE PARTS INC.) | Use up to Engine SN 8022240 This part replaces 24300-HC0-000.

24300-HC0-020

Unavailable

5

DRUM ASSY., GEARSHIFT (SOURCE: VINTAGE PARTS INC.) This part replaces 24300-HC0-010.

24300-HC0-020

Unavailable

5

DRUM ASSY., GEARSHIFT (SOURCE: VINTAGE PARTS INC.)

24300-HC0-020

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 8022240 This part replaces 24301-HC0-000.

24301-HC0-010

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 8022241

24301-HC0-010

Unavailable

7

RING, BEARING SETTING SEPARATE

24302-HC0-000

$6.41

8

CENTER, SHIFT DRUM This part replaces 24312-HC0-000.

24312-HC0-010

$42.52

8

CENTER, SHIFT DRUM

24312-HC0-010

$42.52

9

PIN, SHIFTER

24315-HA0-000

$12.60

10

SHIFTER, DRUM

24321-HC0-000

$57.10

11

COLLAR, SHIFTER

24322-HA0-000

$5.49

12

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

12

PAWL A, RATCHET

24324-KA3-711

$13.21

13

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

13

PAWL B, RATCHET

24325-KA3-711

$13.21

14

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLUNGER, PAWL This part replaces 24326-KT7-000.

24326-KBH-901

$5.81

15

PLATE, GUIDE

24328-HA5-010

Unavailable

16

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

17

DRUM, REVERSE GEARSHIFT | Use up to Engine SN 8026120 This part replaces 24351-HC0-000.

24351-HC0-010

$86.74

17

DRUM, REVERSE GEARSHIFT

24351-HC0-010

$86.74

18

HOLDER, REVERSE DRUM BEARING

24361-HC0-000

$49.21

19

STOPPER, GEARSHIFT DRUM

24430-HA0-000

Unavailable

20

STOPPER, REVERSE SHIFT

24430-HC0-000

Unavailable

21

SPRING, REVERSE SHIFT DRUM STOPPER

24435-HC0-000

Unavailable

22

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24436-HC0-000

Unavailable

23

ARM, GEARSHIFT

24610-HC0-000

Unavailable

24

SPRING, SHIFT RETURN

24651-HC0-003

$9.02

25

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-HA5-000

Unavailable

26

SPINDLE, REVERSE SHIFT (SOURCE: VINTAGE PARTS INC.)

24665-HC0-000

Unavailable

27

CAM, REVERSE STOPPER

24666-HC0-000

$23.69

28

ROTOR, REVERSE SWITCH (NOT AVAILABLE)

24667-HC0-000

Unavailable

29

BOLT, FLANGE KNOCK (6X16.5)

90001-HC0-000

$3.17

30

BOLT, SOCKET (6X14)

90002-HC0-000

$3.48

31

WASHER, THRUST (13MM)

90401-HA5-000

$4.22

32

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

33

PIN A, DOWEL (8X12) This part replaces 90701-HC0-000.

94301-08120

$2.19

33

PIN A, DOWEL (8X12)

94301-08120

$2.19

34

BEARING, SPECIAL NEEDLE (37X43X13)

91008-HC0-003

Unavailable

35

BEARING, RADIAL BALL (6902) (NTN)

91008-KV0-003

$32.41

36

BEARING (16005) (KOYO)

91051-719-003

$28.92

37

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

38

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

39

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

40

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

41

ROLLER (3X8.5)

96220-30085

$1.49

42

ROLLER (4X8)

96220-40080

$1.49
