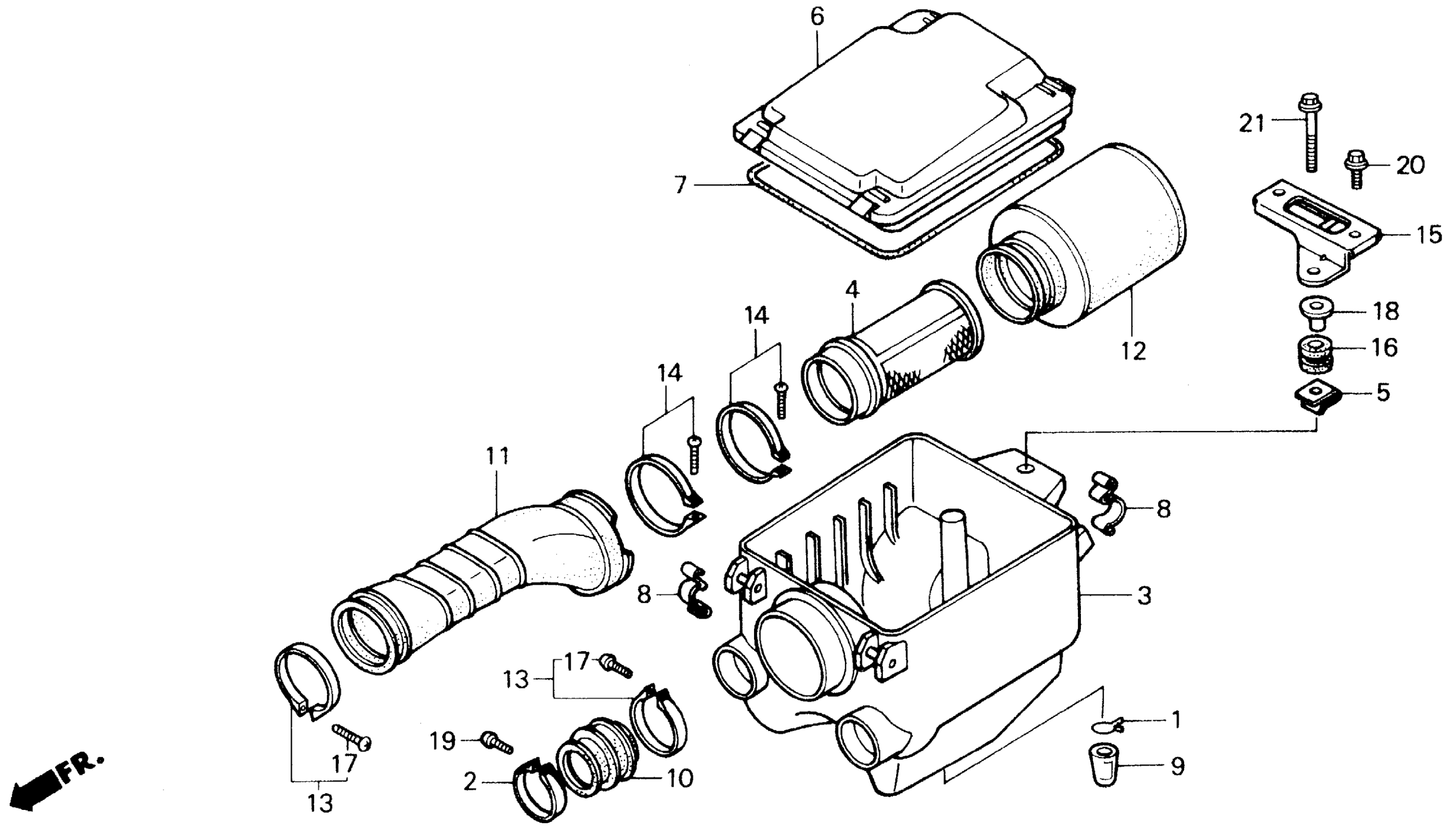

Honda TRX250XA (87) FOURTRAX 250X, JPN, VIN# JH3TE130-HK000001 TO JH3TE130-HK030684 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.64

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.64

2

BAND, INSULATOR

16223-KA3-740

Unavailable

3

AIR CLEANER HOUSING This part replaces 17210-HC0-000.

17210-HC0-010

Unavailable

3

AIR CLEANER HOUSING

17210-HC0-010

Unavailable

4

BODY, AIR CLEANER

17211-HC0-000

$66.01

5

NUT, AIR CLEANER HOUSING SETTING

17212-965-000

Unavailable

6

LID, AIR CLEANER HOUSING

17217-HC0-000

$39.64

7

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.55

7

SEAL, AIR CLEANER COVER This part replaces 17219-HC0-000.

17219-HA2-405

$5.55

8

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

9

TUBE, VINYL (11X15X45)

17227-HC0-000

$6.86

10

SEAL, AIR IN.

17252-HC0-000

$14.22

11

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-HC0-000

Unavailable

12

AIR CLEANER This part replaces 17254-HC0-000.

17254-HC0-680

$23.41

12

AIR CLEANER

17254-HC0-680

$23.41

13

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$5.81

13

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-680.

95018-60250

$5.81

13

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$5.81

14

BAND, AIR CLEANER

17257-HB5-000

$12.58

15

PLATE, SEAT LOCK

50190-HC0-000

Unavailable

16

RUBBER, SEAT SETTING

77206-MJ0-000

$3.66

17

SCREW

90101-HB5-000

$2.70

18

SCREW, PAN (4X25)

90107-HA0-680

$2.36

19

COLLAR (6X14.8)

90501-438-000

$4.70

20

SCREW, PAN (5X25)

93500-05025-0G

$0.68

21

BOLT, FLANGE (6X10)

96300-06010-00

$0.86

22

BOLT, FLANGE (6X28) (NOT AVAILABLE) | Use from Frame SN HK009640

96300-06028-08

Unavailable

22

BOLT, FLANGE (6X32) (NOT AVAILABLE) | Use up to Frame SN HK009639

96300-06032-08

Unavailable
