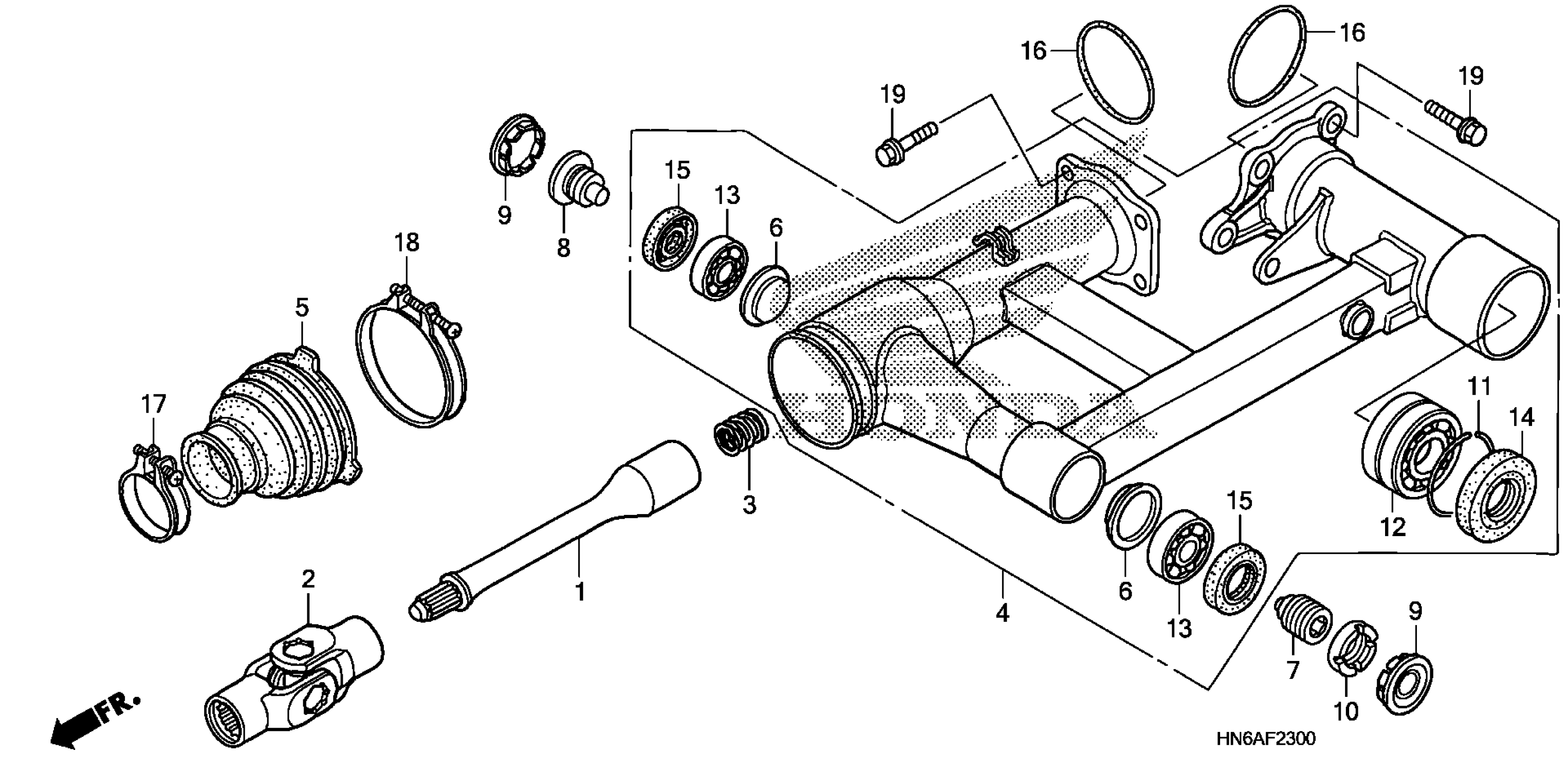

Honda TRX250XA (18) TRX250X, USA, VIN# 1HFTE274-J4700001 SWINGARM Diagram

SHAFT, PROPELLER

40201-HM8-000

$72.34

JOINT, YOKE

40210-HN7-010

$60.66

SPRING, PROPELLER SHAFT

40215-HN0-671

$3.22

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-HN6-F30ZA

$340.82

BOOT, JOINT

52101-HM8-000

$7.09

HOLDER, RR. SWINGARM GREASE

52112-MA1-300

$7.04

BOLT A, PIVOT

90121-HM5-930

$9.41

BOLT B, PIVOT

90122-HM5-930

$10.85

CAP, LOCK NUT

90312-HM5-670

$11.71

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

CLIP, BEARING

90601-HM8-000

$2.72

BEARING, RADIAL BALL (32X58X13X2)

91054-HA0-771

$56.86

BEARING, ANGULAR (7203)

91066-HC4-004

$35.11

DUST SEAL (32X58X10)

91255-HN6-003

$17.59

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.71

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

BAND, AIR CLEANER CONNECTING TUBE (44)

95018-44250

$5.90

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90320

$6.78

BOLT, FLANGE (10X25)

95701-10025-00

$2.19
