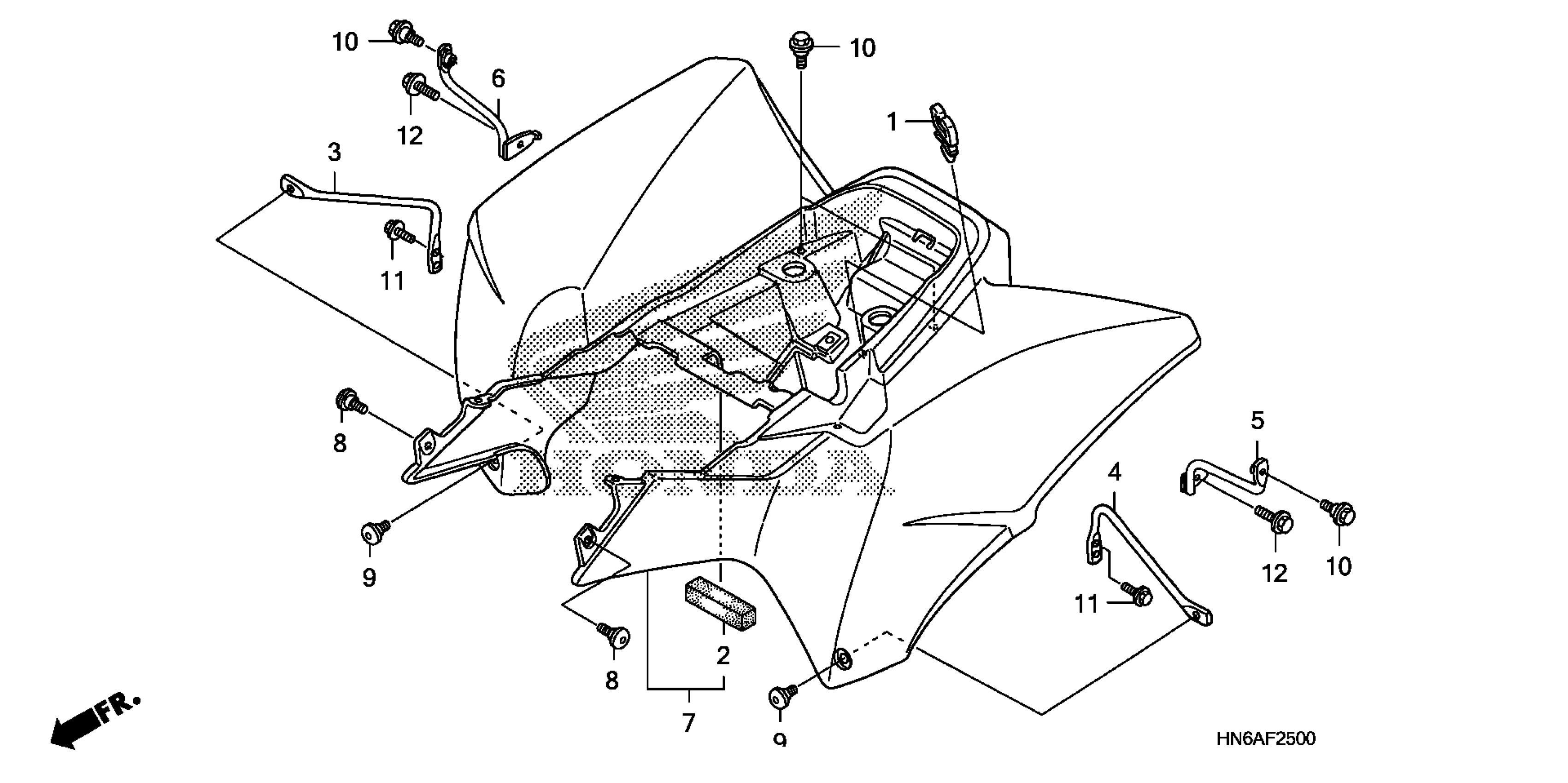

Honda TRX250XA (18) TRX250X, USA, VIN# 1HFTE274-J4700001 REAR FENDER Diagram

CLIP, WIRE HARNESS

53105-KJ9-003

$3.13

SEAL C, HEADLIGHT

64236-MR8-610

$5.53

STAY, R. RR. FENDER

80103-HN6-A30

$27.91

STAY, L. RR. FENDER

80104-HN6-A30

$27.15

STAY, R. RR. FENDER SUPPORT (L. SIDE)

80107-HN6-A30

$9.76

STAY, L. RR. FENDER SUPPORT (R. SIDE)

80108-HN6-A30

$9.76

FENDER SET, RR. (TYPE2) (WL)

80150-HN6-F80ZA

$102.15

FENDER SET, RR. (TYPE1) (WL)

80150-HN6-F80ZB

$141.22

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.66

SCREW, PAN (6X11)

90106-KY2-701

$4.05

BOLT, FLANGE (6MM)

90111-187-000

$7.39

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

BOLT, FLANGE (8X16)

95701-08016-00

$1.79
