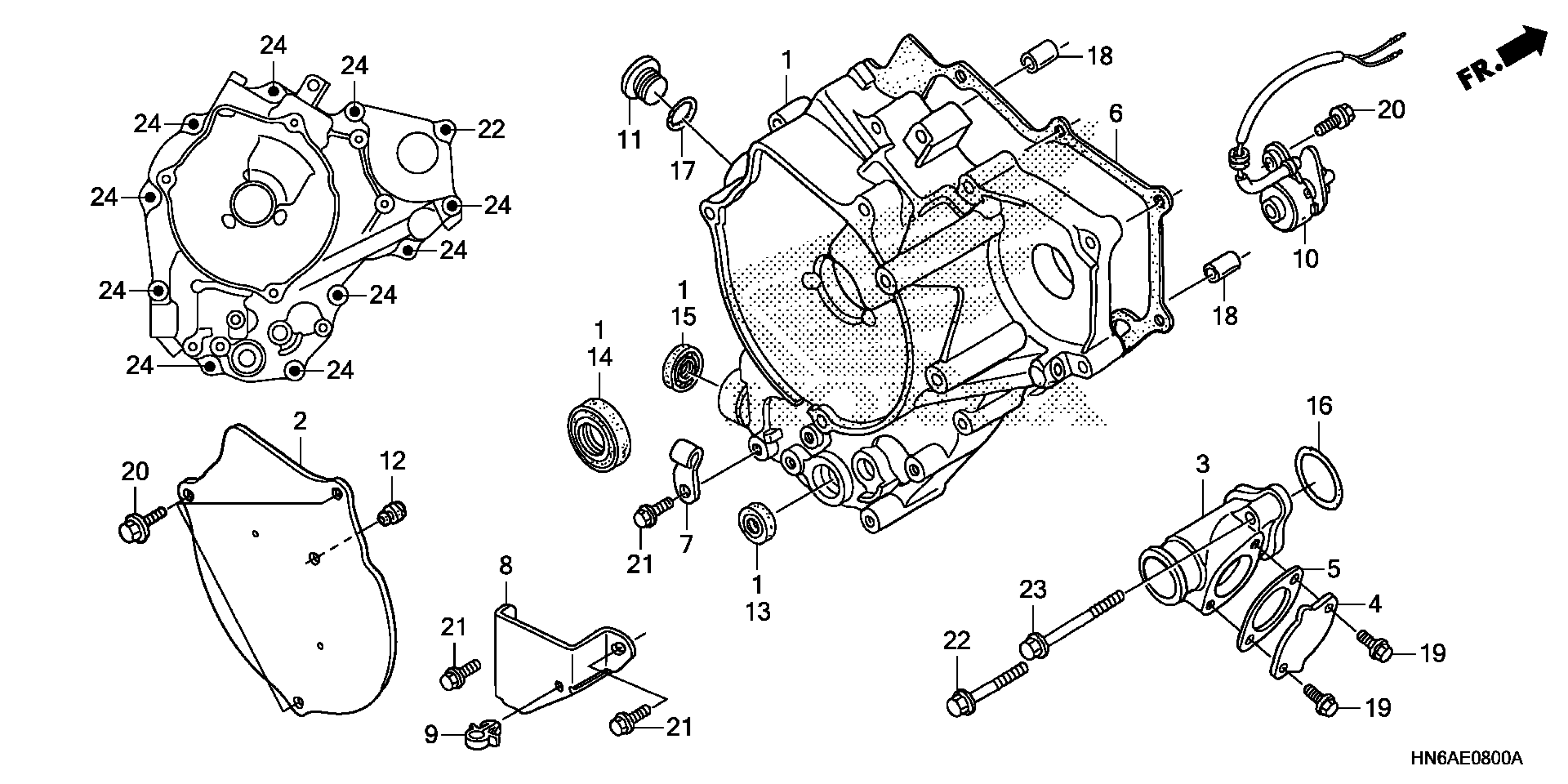

Honda TRX250XA (18) TRX250X, USA, VIN# 1HFTE274-J4700001 REAR CRANKCASE COVER Diagram

#

Description
Price

1

COVER, RR. CRANKCASE

11340-HM8-A40

$162.57

2

SUB-COVER, RR.

11350-HN6-000

$17.69

3

PROTECTOR, COUNTERSHAFT

11355-HM8-A41

$52.11

4

CAP, SPEED SENSOR

11356-HN5-670

$3.80

5

GASKET, SPEED SENSOR INSULATOR

11357-HM8-000

$2.18

6

GASKET, RR. CRANKCASE COVER

11395-HM8-A40

$15.12

7

HOLDER, REVERSE STOPPER WIRE

24866-HM8-A40

$3.10

8

PROTECTOR, REVERSE LEVER

24880-HM8-B00

$10.90

9

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.91

10

SWITCH ASSY., CHANGE

35759-HN6-A31

$48.28

11

CAP (14MM)

90084-KY2-000

$15.97

12

RUBBER, NUMBER BRACKET CUSHION

90899-MB2-000

$3.80

13

OIL SEAL (12X22X5)

91201-965-000

$4.06

14

OIL SEAL (22X32X7) (ARAI)

91202-HB3-003

$9.96

15

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

16

O-RING (44.1X2.2) (NOK)

91302-P0Z-003

$7.02

17

O-RING (13.8X2.5)

91303-377-000

$3.42

18

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

19

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

21

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

23

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

24

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80
