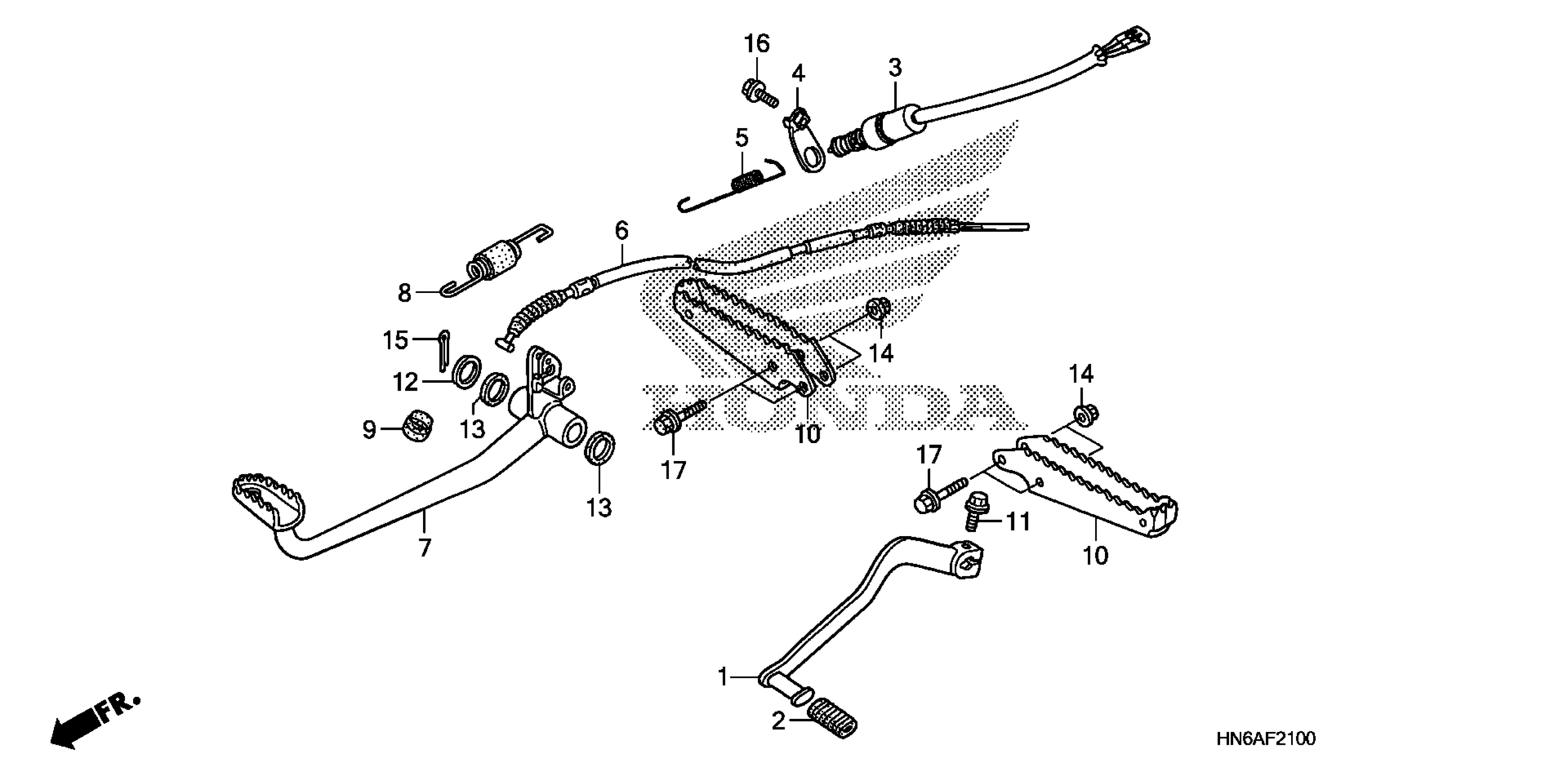

Honda TRX250XA (18) TRX250X, USA, VIN# 1HFTE274-J4700001 PEDAL@STEP Diagram

PEDAL, GEARSHIFT

24701-HN6-A30

$66.28

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

SWITCH ASSY., RR. STOP

35350-HM8-B00

$56.28

STAY, STOP SWITCH

35351-HM8-B00

$1.74

SPRING, STOP SWITCH

35357-HM8-B00

$2.72

CABLE, FOOT BRAKE

43470-HM8-000

$8.76

PEDAL, BRAKE

46500-HN6-A30

$24.10

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

RUBBER, STOPPER

47117-196-000

$2.67

STEP

50610-HM8-000

$17.17

BOLT, FLANGE (6X20)

90118-968-000

$4.24

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
