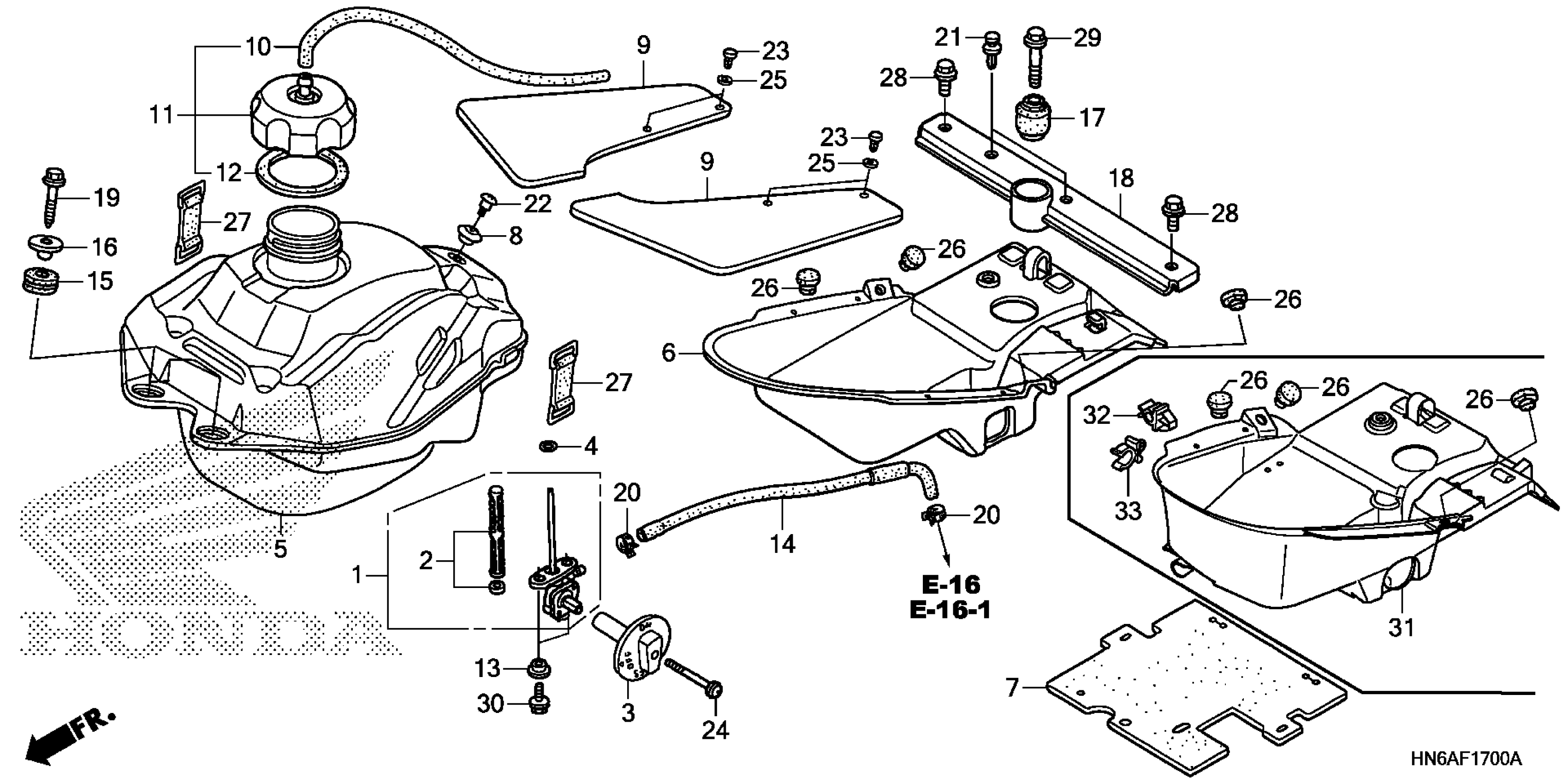

Honda TRX250XA (18) TRX250X, USA, VIN# 1HFTE274-J4700001 FUEL TANK Diagram

PETCOCK ASSY.

16950-HM8-003

$97.35

SCREEN SET, FUEL STRAINER

16952-HM8-003

$23.67

LEVER, PETCOCK

16963-HN6-000

$5.12

O-RING (11.8X3.55)

16997-467-000

$2.11

TANK, FUEL

17510-HN6-A50

$428.87

RUBBER, HEAT PROTECTOR

17518-HN6-A30

$5.30

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

RUBBER, DUST PROTECTOR

17519-HN6-A30

$8.07

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.99

CAP ASSY., FUEL TANK

17620-HF7-000

$55.16

GASKET, FUEL CAP (Honda Code 4067716)

17624-HF7-000

$7.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

TUBE, FUEL

17681-HN6-A50

$11.26

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

RUBBER, ENGINE HEAD MOUNTING

50201-HN6-000

$11.31

PLATE, CROSS

50300-HN6-000

$18.33

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.39

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

PLUG, DOOR LINING SEAL (BLACK)

91564-SE3-003

$3.79

SCREW-WASHER (5X35)

90101-HN6-000

$2.05

WASHER, PLAIN (4MM)

94103-04700

$1.49

RUBBER C, STAND STOPPER

95011-63000

$3.90

BAND A, BATTERY

95012-11001

$2.92

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X45)

95801-08045-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

PROTECTOR, TANK HEAT (LOWER)

17530-HS0-A00

$37.89

CLIP, TUBE

50304-Z11-003

$2.31

CLAMP (18.5MM)

91546-SP0-A01

$5.72
