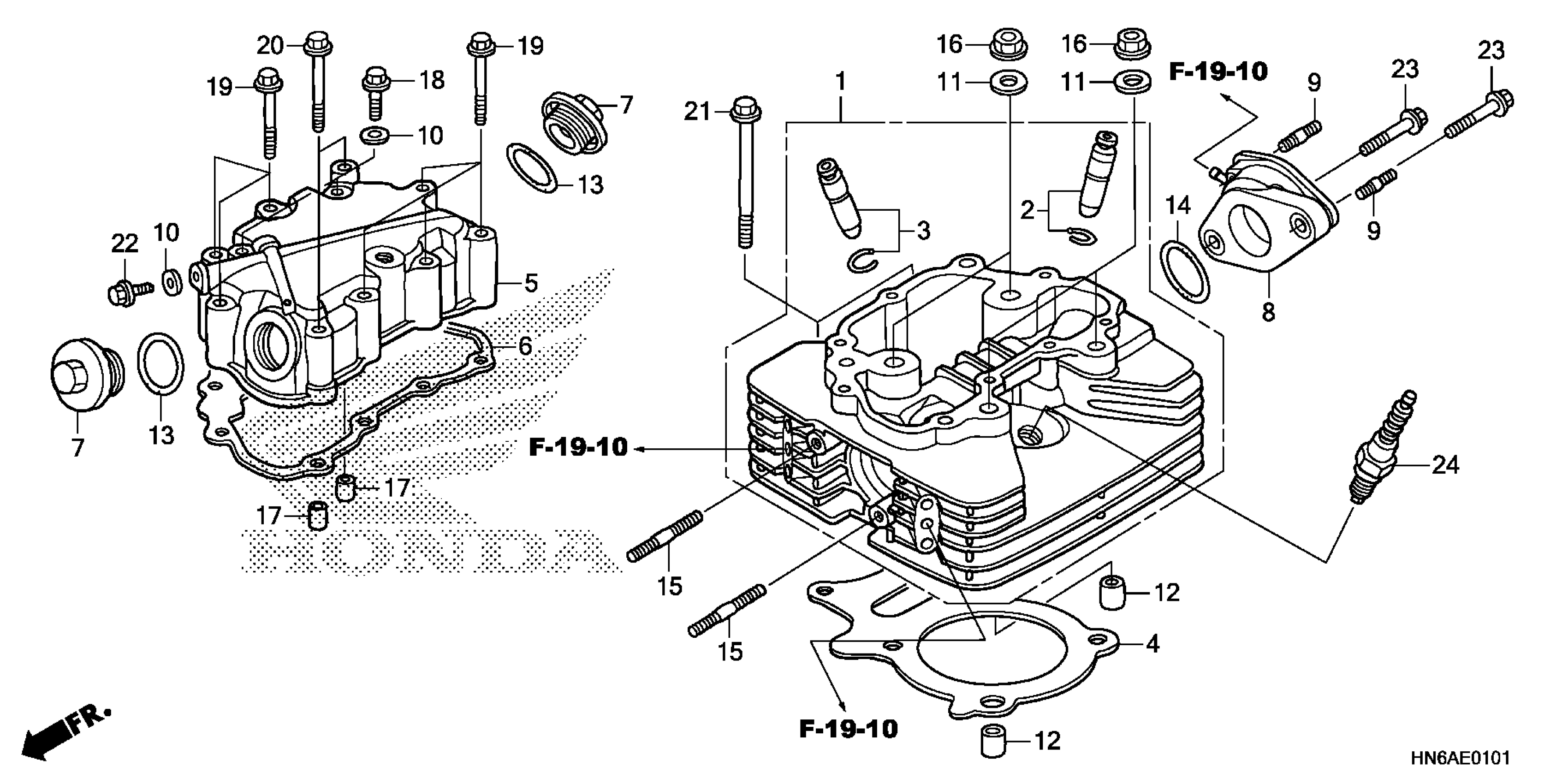

Honda TRX250XA (18) TRX250X, USA, VIN# 1HFTE274-J4700001 CYLINDER HEAD (2) Diagram

CYLINDER HEAD

12200-HS0-A00

$643.78

GUIDE, VALVE (OVER SIZE)

12204-HM8-306

$15.70

GUIDE, EX. VALVE (OVER SIZE)

12205-HM8-306

$15.70

GASKET, CYLINDER HEAD

12251-HN6-000

$20.28

COVER, CYLINDER HEAD

12310-HN6-010

$161.79

GASKET, HEAD COVER

12315-HN6-010

$17.82

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

INSULATOR, CARBURETOR

16210-HS0-A00

$46.35

BOLT, STUD (6X18)

90011-HM8-000

$3.42

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER (8MM)

90465-MC4-000

$2.51

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

PIN A, DOWEL (10X14) PIN, DOWEL (10X14)

94301-10140

$2.28

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

O-RING (33.7X2.4)

91305-HA0-680

$8.66

BOLT, STUD (8X25)

92900-08025-0B

$2.20

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.51

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
