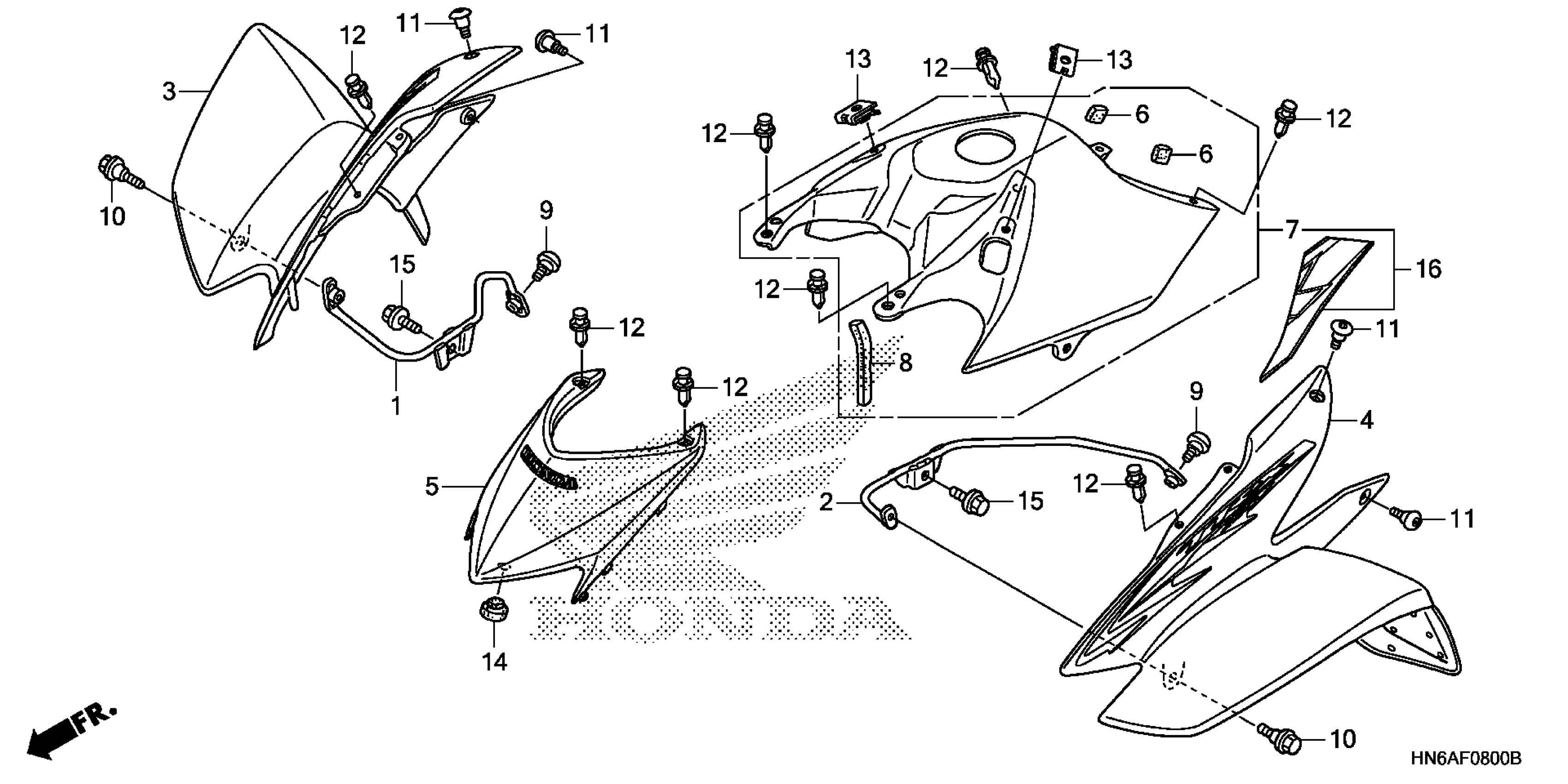

Honda TRX250XA (11) SPORTRAX, USA, VIN# 1HFTE270-B4100001 TO 1HFTE270-B4199999 FRONT FENDER Diagram

STAY, R. FR. FENDER

61101-HN6-A30

$12.18

STAY, L. FR. FENDER

61102-HN6-A30

$12.18

FENDER SET, R. FR. (TYPE1) (WL)

61150-HN6-A70ZA

$184.46

FENDER SET, R. FR. (TYPE2) (WL)

61150-HN6-A70ZB

$206.03

FENDER SET, L. FR. (TYPE1) (WL)

61250-HN6-A70ZA

$184.48

FENDER SET, L. FR. (TYPE2) (WL)

61250-HN6-A70ZB

$184.46

COVER SET, FR. CENTER *NHA79MR* (WL) (CHAOS BLACK METALLIC-R)

61350-HN6-A60ZA

$16.24

COVER SET, FR. CENTER *NHA79MR* (WL) (CHAOS BLACK METALLIC-R) This part replaces 61350-HN6-A60ZE.

61350-HN6-A60ZA

$16.24

RUBBER, CUSHION PAD

64207-MAM-A00

$4.54

COVER, TANK *R299R* (NITRO RED)

83500-HN6-A50ZC

$72.25

COVER, TANK *NHA79MR* (CHAOS BLACK METALLIC-R)

83500-HN6-A50ZA

$62.10

SEAL, TANK COVER

83615-HN6-A50

$7.87

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.87

BOLT, FLANGE (6MM)

90111-187-000

$5.59

SCREW, SPECIAL (6MM)

90137-MCA-000

$2.92

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

NUT, CLIP (6MM)

90673-SB2-000

$6.96

RUBBER C, STAND STOPPER

95011-63000

$3.90

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
