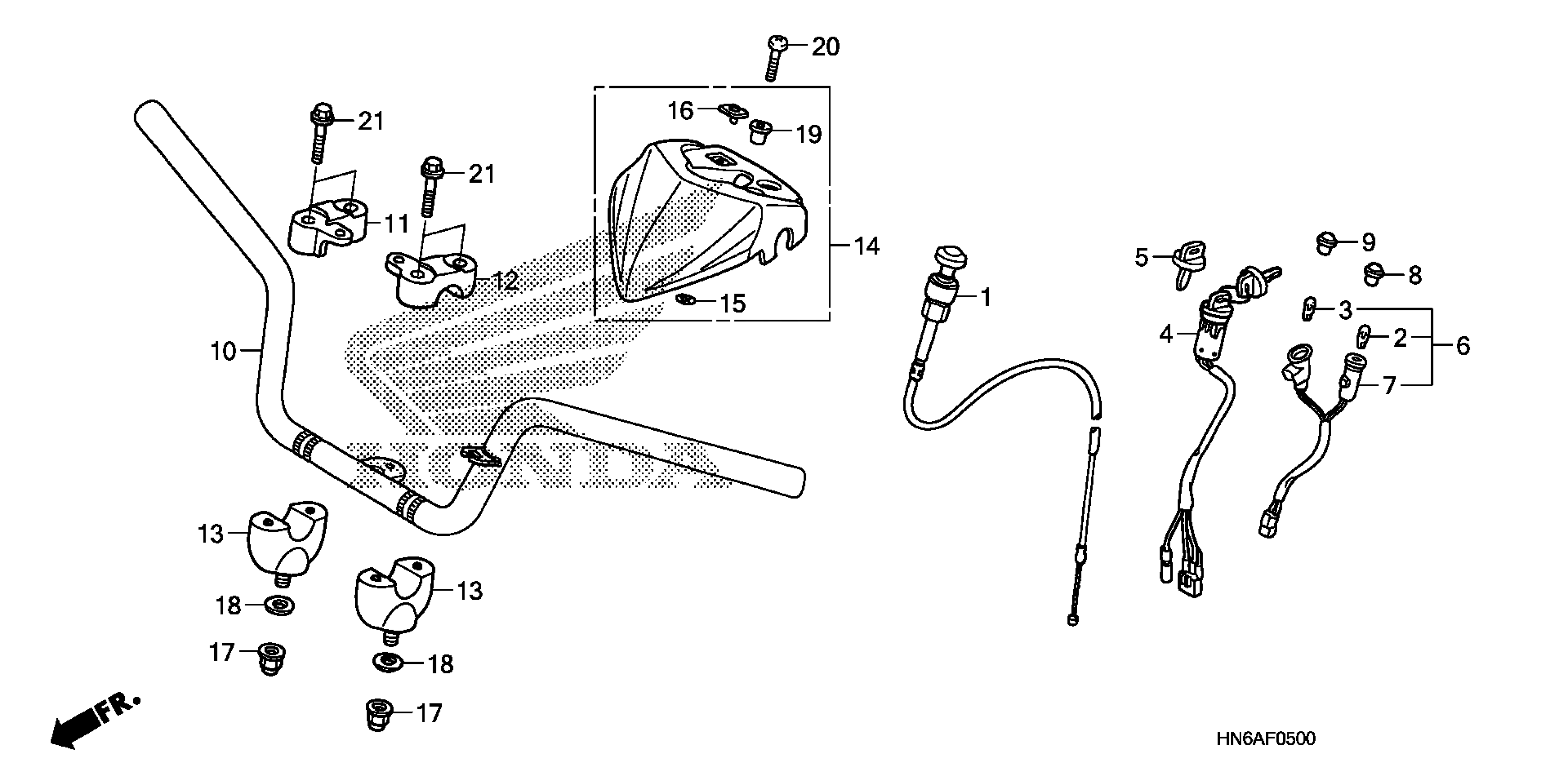

Honda TRX250XA (09) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-94800001 TO 1HFTE270-94999999 HANDLEBAR Diagram

CABLE, CHOKE

17950-HN6-A30

$7.64

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$3.90

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$3.90

BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)

37237-SA5-003

$3.90

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$3.90

BULB, WEDGE BASE (12V3W) (TOSHIBA)

34908-KM1-671

$6.58

SWITCH ASSY., IGNITION

35100-HN6-A30

$46.49

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) KEY, BLANK (TYPE2) | (Optional).

35121-HF1-881

$8.61

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.61

INDICATOR ASSY.

37570-HN1-A41

$17.77

WIRE

37572-HN1-A41

$14.59

LENS, OIL INDICATOR (RED)

37602-HM5-670

$3.45

LENS, NEUTRAL INDICATOR (GREEN)

37603-HM5-670

$3.37

HANDLEBAR

53100-HN6-A50

$67.62

HOLDER, R. HANDLE (UPPER)

53111-HC3-000

$17.14

HOLDER, L. HANDLE (UPPER)

53121-HC3-000

$17.14

HOLDER, HANDLE (LOWER)

53130-HB3-770

$19.01

COVER ASSY., HANDLE *NHA79MR* (CHAOS BLACK METALLIC-R)

53204-HN1-A40ZB

$12.07

NUT, SPEED (4MM)

64206-MJ0-000

$1.38

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$6.84

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

WASHER (10.3MM)

90521-427-770

$2.17

WASHER, FR. FENDER SETTING WASHER (6X20)

90556-044-000

$3.39

SCREW, PAN (6X14)

93500-06014-0A

$0.90

BOLT, FLANGE (8X35)

95701-08035-08

$1.28
