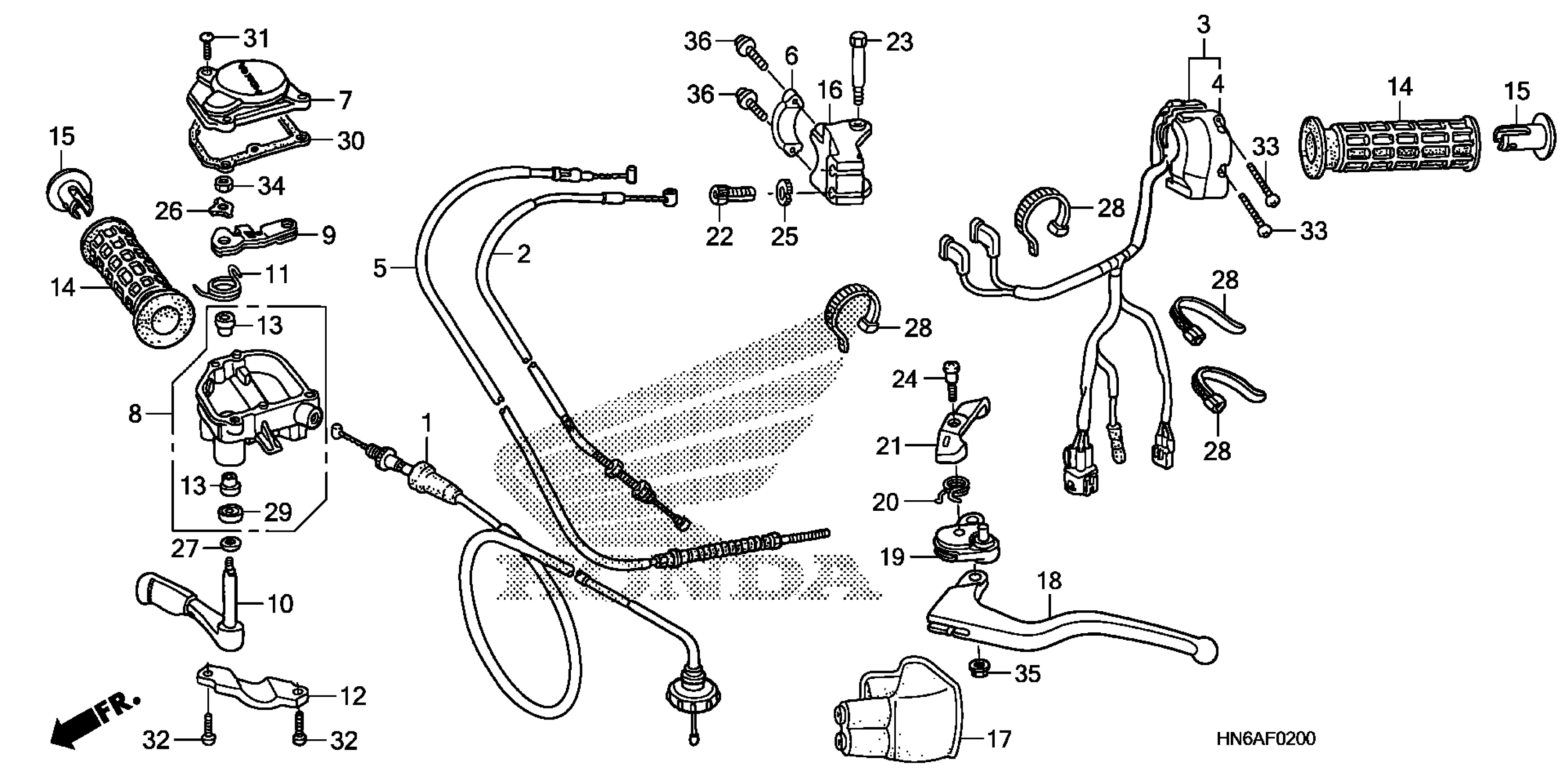

Honda TRX250XA (09) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-94800001 TO 1HFTE270-94999999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HN6-305

$48.93

2

CABLE, CLUTCH

22870-HN6-A30

$24.44

3

SWITCH ASSY., LIGHTING & STARTER & ENGINE STOP This part replaces 35150-HN6-A51.

35150-HN6-A53

$38.75

3

SWITCH ASSY., LIGHTING & STARTER & ENGINE STOP This part replaces 35150-HN6-A52.

35150-HN6-A53

$38.75

4

COVER, SWITCH

35201-HB7-671

$13.47

5

CABLE, PARKING BRAKE

43455-HN6-A30

$11.60

6

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

7

COVER, THROTTLE CASE

53141-HP1-000

$36.58

8

CASE ASSY., THROTTLE LEVER (FOR CASE WITH SWITCH PLEASE USE 53143-HN0-305)

53143-HM7-305

$50.26

9

ARM, THROTTLE

53144-HA0-010

$7.72

10

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

10

LEVER, THROTTLE

53145-HA0-770

$24.05

11

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

12

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

14

GRIP, HANDLE

53165-HP5-600

$3.83

15

GUARD, HANDLE END

53167-HP5-600

$2.33

16

BRACKET, L. HANDLE LEVER

53172-HN6-A30

$43.44

17

COVER, L. HANDLE LEVER

53177-HA5-000

$8.76

18

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HP1-000.

53178-HP1-305

$35.90

19

ARM ASSY., PARKING

53180-HM3-000

$41.39

20

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

21

LEVER, PARKING BRAKE LOCK

53192-HN6-A30

$9.61

22

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

23

BOLT, HANDLE LEVER PIVOT

90115-HB5-671

$4.80

24

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

25

NUT, FIXING

90321-315-670

$7.31

26

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

27

WASHER (9X20)

90504-HA0-000

$2.28

28

BAND, WIRE HARNESS

90651-MA6-720

$3.73

29

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

29

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

30

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

31

SCREW, PAN (4X16)

93500-04016-0G

$1.49

32

SCREW, PAN (5X14)

93500-05014-0G

$3.67

33

SCREW, PAN (5X25)

93500-05025-0G

$1.49

34

NUT, HEX. (6MM)

94002-06000-0S

$1.49

35

NUT, FLANGE (6MM)

94050-06000

$1.49

36

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
