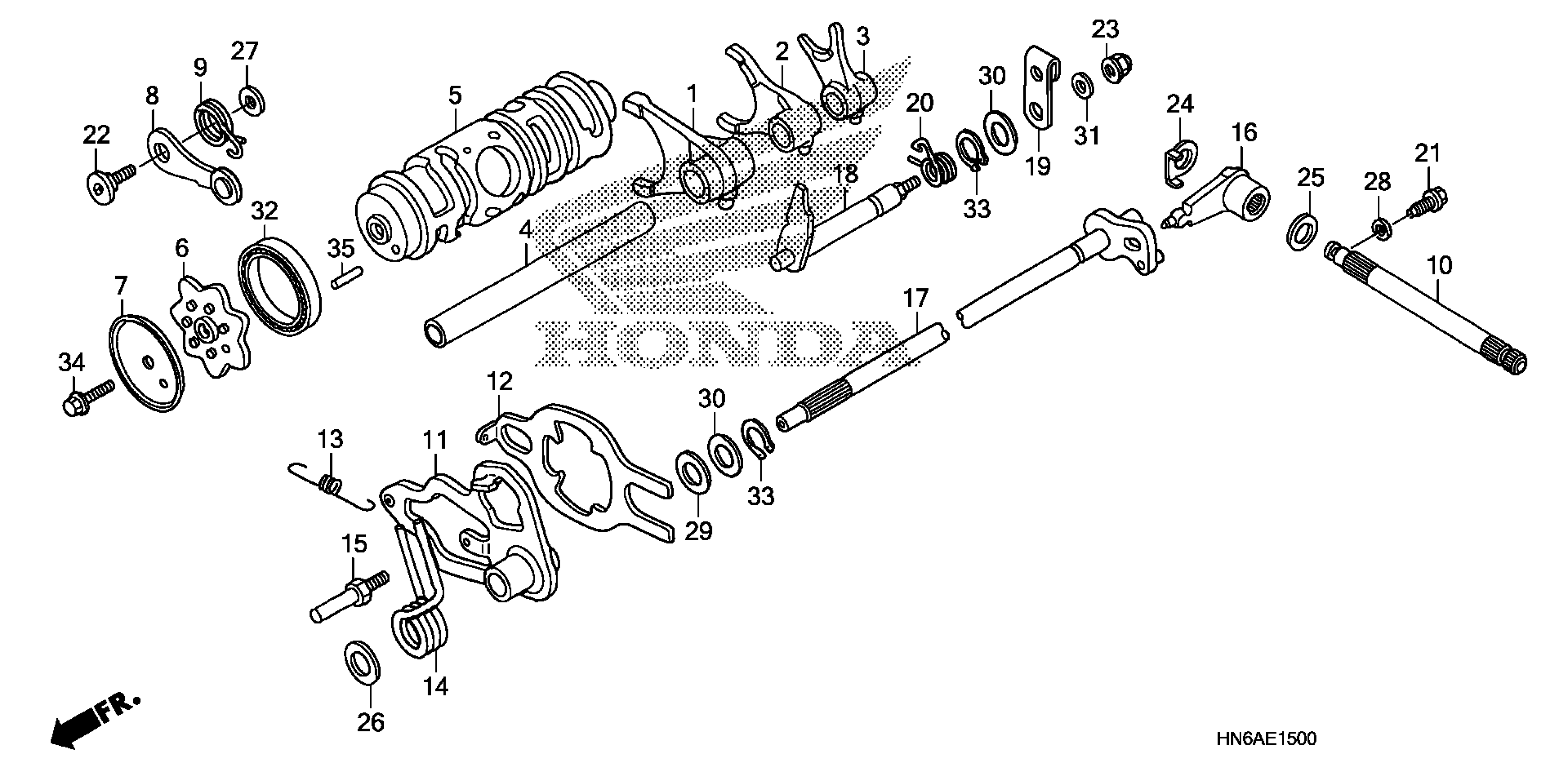

Honda TRX250XA (09) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-94800001 TO 1HFTE270-94999999 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-HN6-000

$59.25

2

FORK, CENTER GEARSHIFT

24212-HN6-000

$59.25

3

SWINGARM, GEARSHIFT

24213-HN6-000

$59.25

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HF1-670

$20.13

5

DRUM, GEARSHIFT

24301-HN6-A00

$84.41

6

SHIFTER, DRUM

24321-HN6-A30

$9.75

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HM8-A40

$12.25

9

SPRING, SHIFT DRUM STOPPER

24435-HM8-A40

$2.89

10

SPINDLE, GEARSHIFT

24611-HM8-A40

$47.96

11

ARM, GEARSHIFT MASTER

24620-HN6-A30

$37.89

12

PLATE, GEARSHIFT

24631-HM8-A40

$14.20

13

SPRING, SHIFT ARM

24641-HB3-004

$2.90

14

SPRING, GEARSHIFT RETURN

24651-HN6-A30

$6.51

15

PIN, RETURN SPRING

24652-KY4-900

$7.99

16

ARM A, GEARSHIFT

24661-HN5-670

$23.75

17

SPINDLE, SUB-GEARSHIFT

24680-HN6-A30

$67.08

18

PLATE A, REVERSE STOPPER

24860-HM8-A40

$15.85

19

LEVER, REVERSE STOPPER

24865-HN5-670

$4.49

20

SPRING, REVERSE STOPPER

24867-HN6-A30

$3.85

21

BOLT, SPECIAL FLANGE (6X15.2)

90009-HN5-670

$2.90

22

PIVOT, SHIFT DRUM STOPPER ARM

90022-HM8-A40

$2.48

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

24

WASHER

90407-HM8-A40

$2.98

25

WASHER

90408-HM8-A40

$1.93

26

WASHER (10X21.5)

90413-GE0-000

$3.90

27

WASHER, DRUM STOPPER

90417-360-000

$1.74

28

WASHER, SEALING (6MM)

90442-397-000

$2.28

29

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

30

WASHER, THRUST (12MM)

90452-166-600

$2.39

31

WASHER, CRANK ARM

90545-044-000

$1.75

32

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$59.77

33

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

34

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

35

ROLLER (4X13.8)

96220-40138

$1.49
