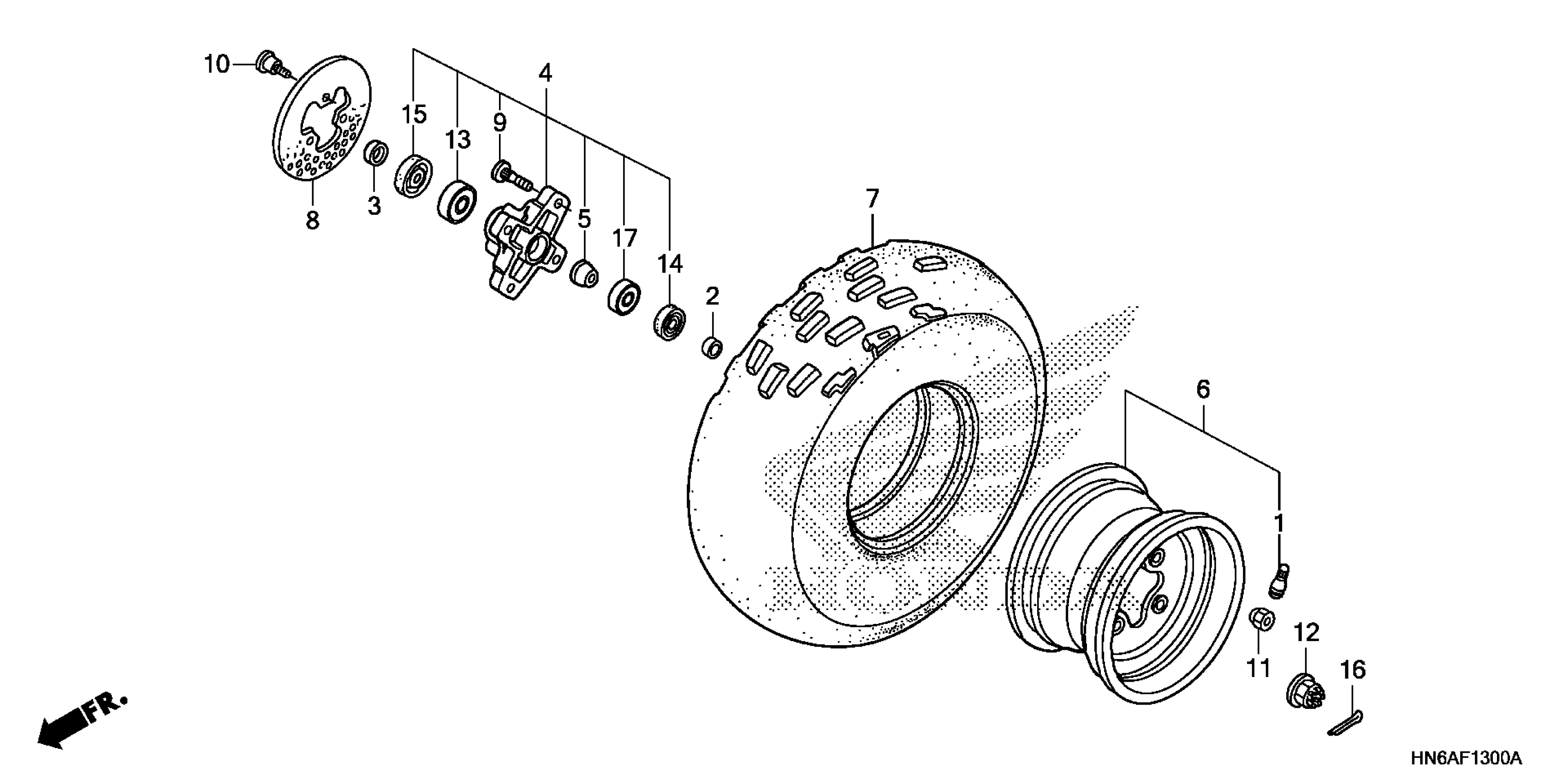

Honda TRX250XA (09) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-94800001 TO 1HFTE270-94999999 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$5.37

COLLAR, WHEEL SIDE

44311-HN6-000

$7.91

COLLAR, WHEEL SIDE

44313-HN1-000

$6.96

HUB SUB-ASSY., FR. This part replaces 44615-HN6-A20.

44615-HN6-F30

$115.98

COLLAR, FR. WHEEL DISTANCE

44620-HB9-740

$14.04

WHEEL SET, FR. This part replaces 44650-HN1-010.

44650-HN6-F00

$261.16

WHEEL SET, FR.

44650-HN6-F00

$261.16

TIRE, FR. (22X7-10) (DUNLOP) (NOT AVAILABLE)

44711-HN6-004

Unavailable

DISK, FR. BRAKE

45251-HN1-003

$103.87

BOLT, WHEEL (10X36)

90103-HA2-003

$8.57

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

NUT, WHEEL CLIP

90304-HA2-003

$5.62

NUT, AXLE (14MM)

90309-HC4-000

$15.40

BEARING, RADIAL BALL (6004) (OD 42MM)

91053-HC4-000

$19.94

BEARING, RADIAL BALL (6004) This part replaces 91053-HC4-003.

91053-HC4-000

$19.94

DUST SEAL (23X35X7)

91205-VM6-003

$9.59

DUST SEAL (28X42X6)

91257-VM0-004

$11.19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
