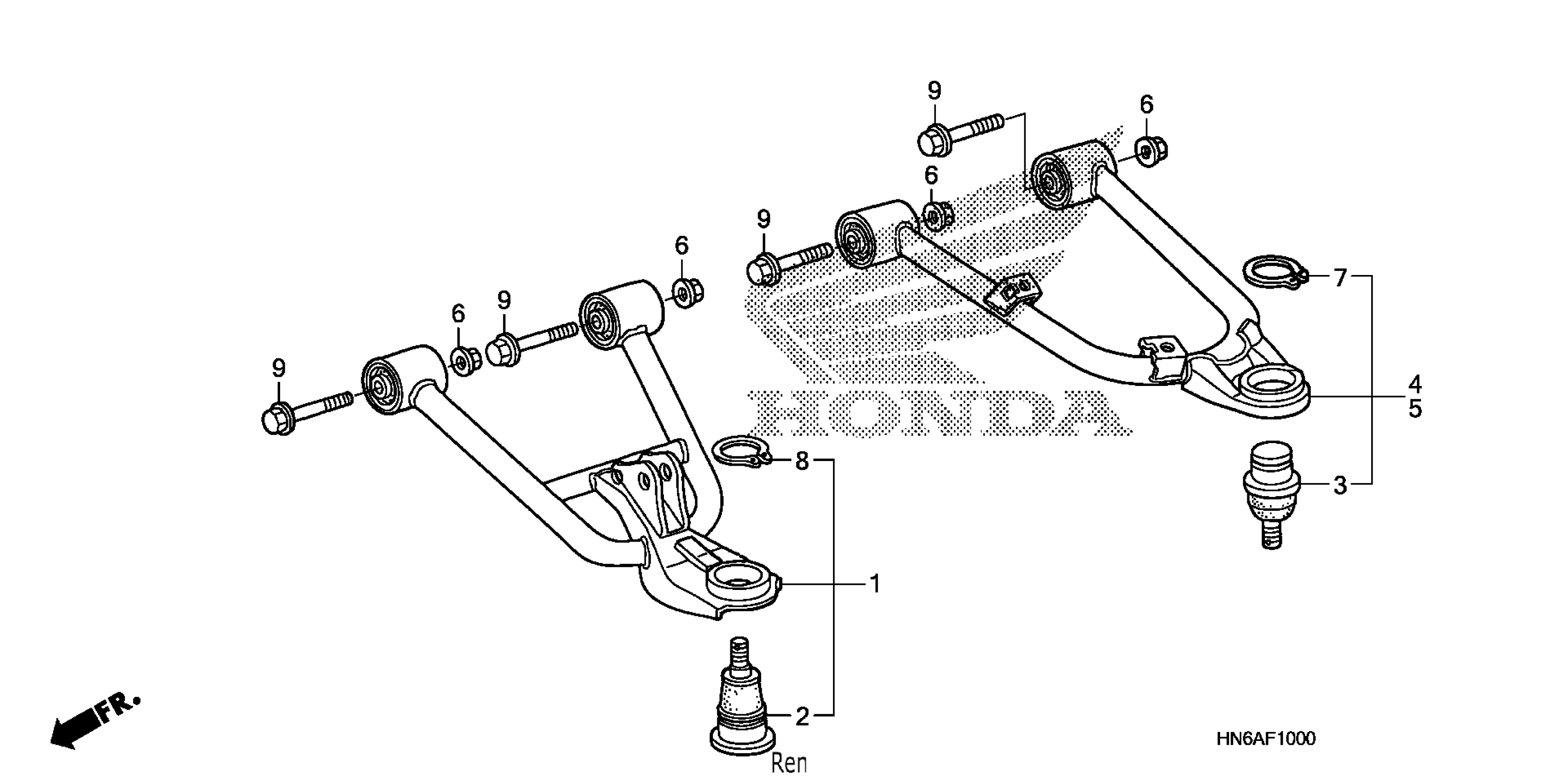

Honda TRX250XA (09) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-94800001 TO 1HFTE270-94999999 FRONT ARM Diagram

ARM ASSY., FR. (LOWER)

51350-HN6-A30

$447.89

JOINT A, ARM BALL

51355-HN6-005

$74.79

JOINT A, ARM BALL

51355-HP5-601

$19.41

ARM ASSY., R. (UPPER)

51370-HN6-A50

$231.09

ARM ASSY., L. (UPPER)

51380-HN6-A50

$78.69

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

CIRCLIP (OUTER) (40MM)

94514-40000

$2.03

BOLT, FLANGE (10X62) BOLT, FLANGE (10X65)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
