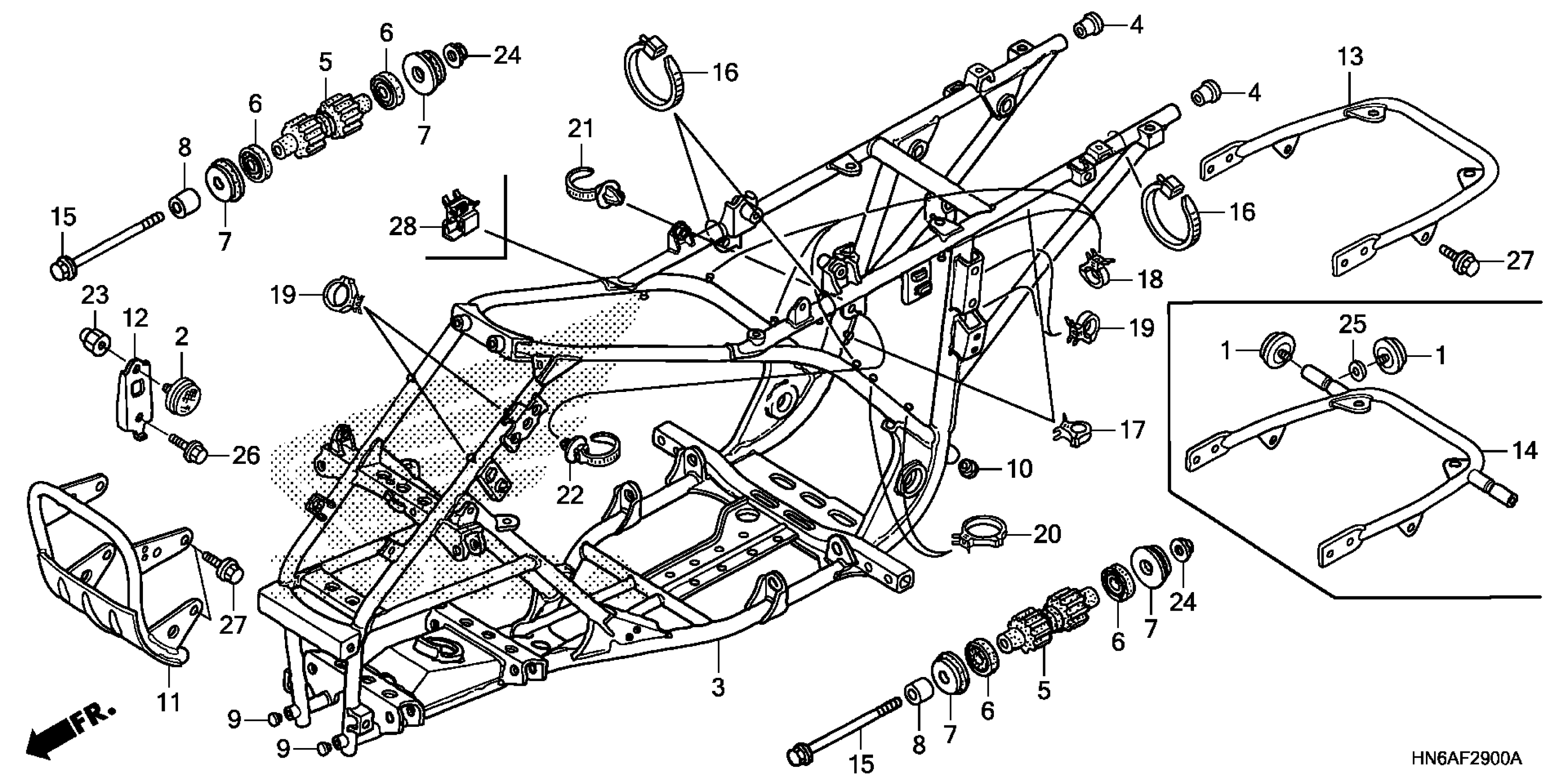

Honda TRX250XA (09) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE270-94800001 TO 1HFTE270-94999999 FRAME Diagram

FRAME *NH456M* (SILVER METALLIC)

50100-HN6-A30ZA

$1,316.72

CAP, FRAME END

50190-HN6-000

$3.39

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-B41

$18.40

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

RUBBER C, MOUNTING

50204-HM8-000

$6.98

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

CAP, END (LOWER)

50750-HN6-A30

$4.07

CAP, RR. PIPE END

50760-HN6-A30

$4.07

PIPE, FR. CARRY *NH456M* (SILVER METALLIC)

81150-HN6-A30ZA

$187.97

PIPE, CARRIER *NH456M* (SILVER METALLIC)

81200-HN6-A30ZA

$80.11

BOLT, FLANGE (10X145)

90115-HM8-003

$6.58

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.90

BAND, WIRE HARNESS (93.5MM) (WHITE)

91567-SE0-003

$8.14

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
