Description

Price

1

CABLE SET, THROTTLE

17920-HN6-305

$43.94

2

CABLE, CLUTCH

22870-HN6-A30

$21.94

3

SWITCH ASSY., LIGHTING & STARTER & ENGINE STOP

35150-HN6-A53

$34.26

5

CABLE, PARKING BRAKE

43455-HN6-F30

$10.42

6

HOLDER, MASTER CYLINDER

45517-GW0-751

$11.14

7

COVER, THROTTLE CASE

53141-HP1-000

$32.85

8

CASE ASSY., THROTTLE LEVER (FOR CASE WITH SWITCH PLEASE USE 53143-HN0-305)

53143-HM7-305

$45.77

9

ARM, THROTTLE

53144-HA0-010

$7.18

10

LEVER, THROTTLE

53145-HA0-770

$21.43

11

SPRING, THROTTLE RETURN

53146-HM8-000

$2.88

12

HOLDER, THROTTLE CASE

53147-HM5-850

$3.35

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.45

14

GRIP, HANDLE

53165-HP5-600

$3.46

15

GUARD, HANDLE END

53167-HP5-600

$2.12

16

BRACKET, L. HANDLE LEVER

53172-HN6-A30

Unavailable

17

COVER, L. HANDLE LEVER

53177-HA5-000

$7.86

18

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HP1-000.

53178-HP1-305

$32.00

19

ARM ASSY., PARKING

53180-HM3-000

$37.70

20

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.22

21

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

22

LEVER, PARKING BRAKE LOCK

53192-HN6-A30

$8.75

23

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.80

24

BOLT, HANDLE LEVER PIVOT

90115-HB5-671

$4.47

25

NUT, FIXING

90321-315-670

$6.80

26

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

27

WASHER (9X20)

90504-HA0-000

$2.07

28

BAND, WIRE HARNESS

90651-MA6-720

$3.47

29

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.66

29

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.66

30

GASKET, THROTTLE CASE

91532-HA0-020

$5.73

31

SCREW, PAN (4X16)

93500-04016-0G

$0.75

32

SCREW, PAN (5X14)

93500-05014-0G

$3.32

33

SCREW, PAN (5X25)

93500-05025-0G

$0.68

34

NUT, HEX. (6MM)

94002-06000-0S

$1.19

35

NUT, FLANGE (6MM)

94050-06000

$0.59

36

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

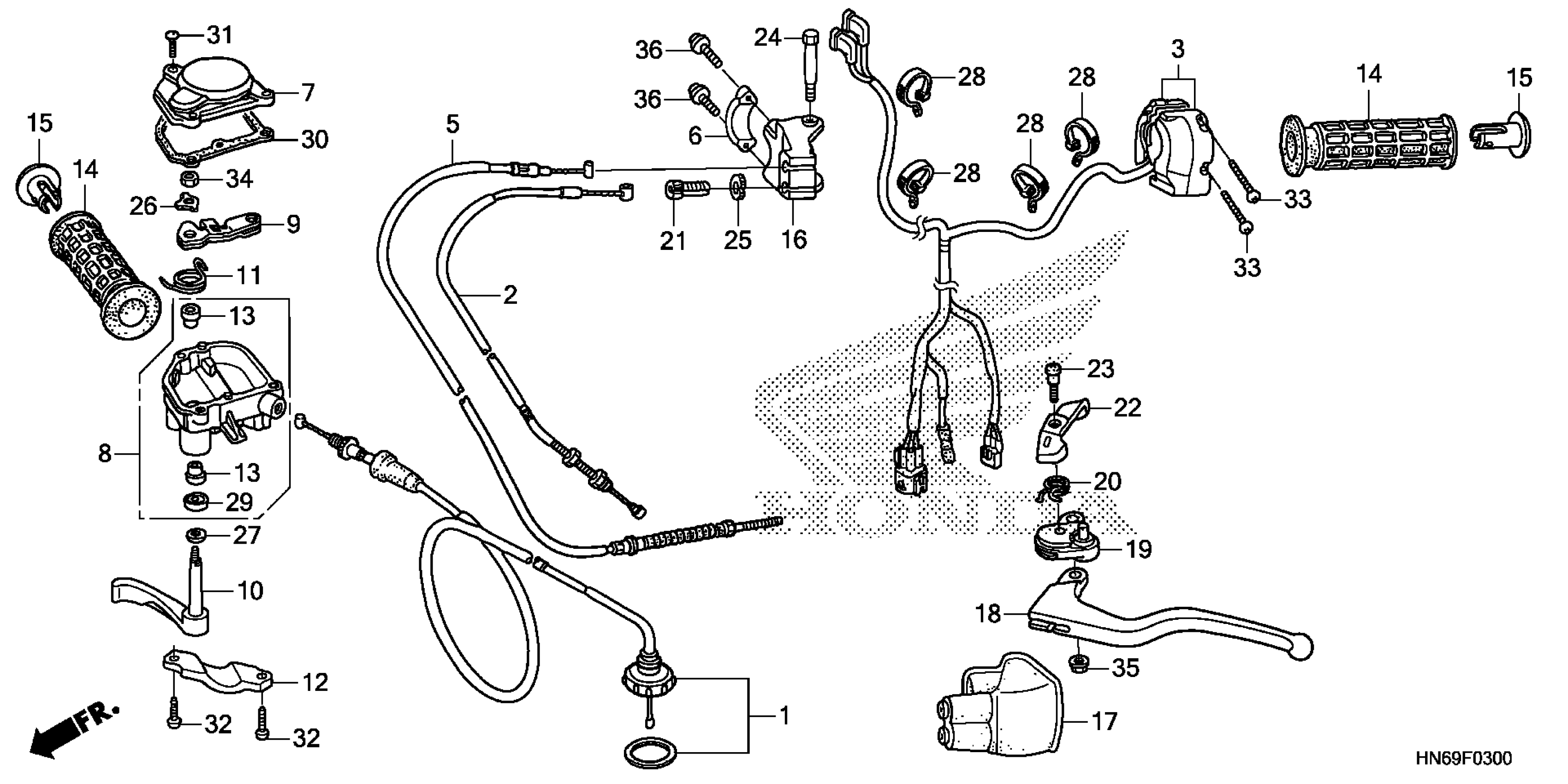

Honda TRX250X1A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE274-R4300001 TO 1HFTE274-R4399999 HANDLE LEVER@SWITCH@CABLE Diagram
