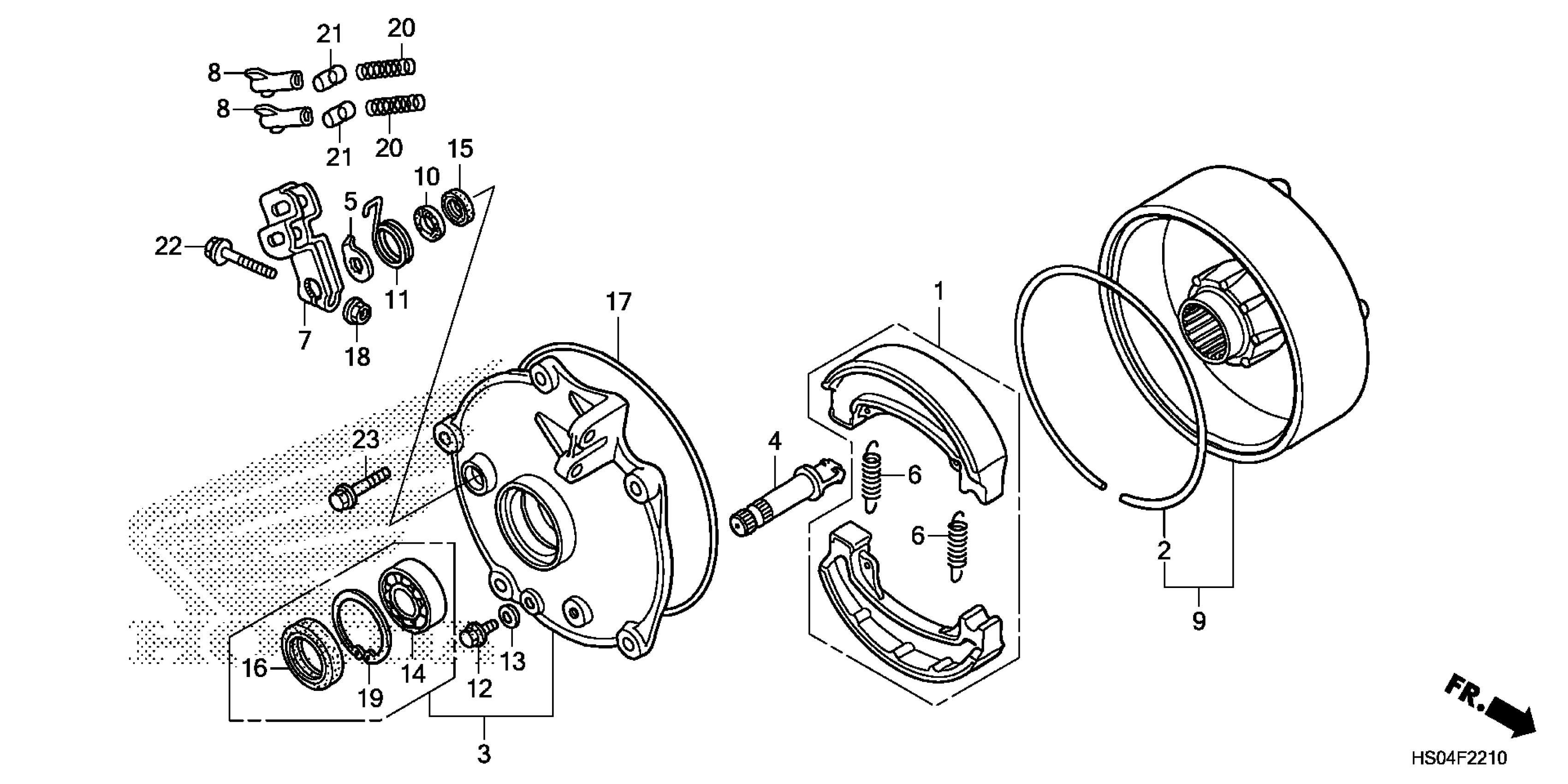

Honda TRX250TMAC (17) TRX250TM, USA, VIN# 1HFTE210-H4100001 TO 1HFTE210-H4199999 REAR BRAKE DRUM Diagram

SHOE SET, BRAKE (ASK)

06430-HM8-A00

$33.06

SHOE SET, BRAKE (ASK) This part replaces 06430-HM8-A10.

06430-HM8-A00

$33.06

RING, DAMPER

42624-HB3-000

$16.63

PANEL SET, RR. BRAKE

43010-HM8-000

$230.23

CAM, RR. BRAKE

43141-KB4-003

$32.76

INDICATOR, RR. BRAKE

43145-HM8-000

$3.73

SPRING, BRAKE SHOE (THIS APPLICATION-FRONT)

43151-329-000

$2.62

ARM, RR. BRAKE

43410-HM8-000

$16.76

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.53

DRUM ASSY., RR. BRAKE

43620-HM8-000

$259.48

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

SPRING, BRAKE ARM RETURN

45411-GB4-680

$4.20

BOLT, SEALING (8MM)

90109-371-000

$2.46

WASHER (8MM)

90471-580-000

$2.80

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$38.31

DUST SEAL (14X20X4) (NOK)

91208-HF7-005

$5.41

DUST SEAL (43X58X10)

91252-HM8-003

$11.70

O-RING (166X2.6)

91355-HM8-003

$5.99

NUT, FLANGE (6MM)

94050-06000

$0.59

CIRCLIP (INNER) (58MM)

94520-58000

$2.92

SPRING A, BRAKE ROD

95014-73100

$1.17

JOINT B, BRAKE ARM

95015-32001

$0.86

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

BOLT, FLANGE (8X25)

95701-08025-00

$1.62

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.62
