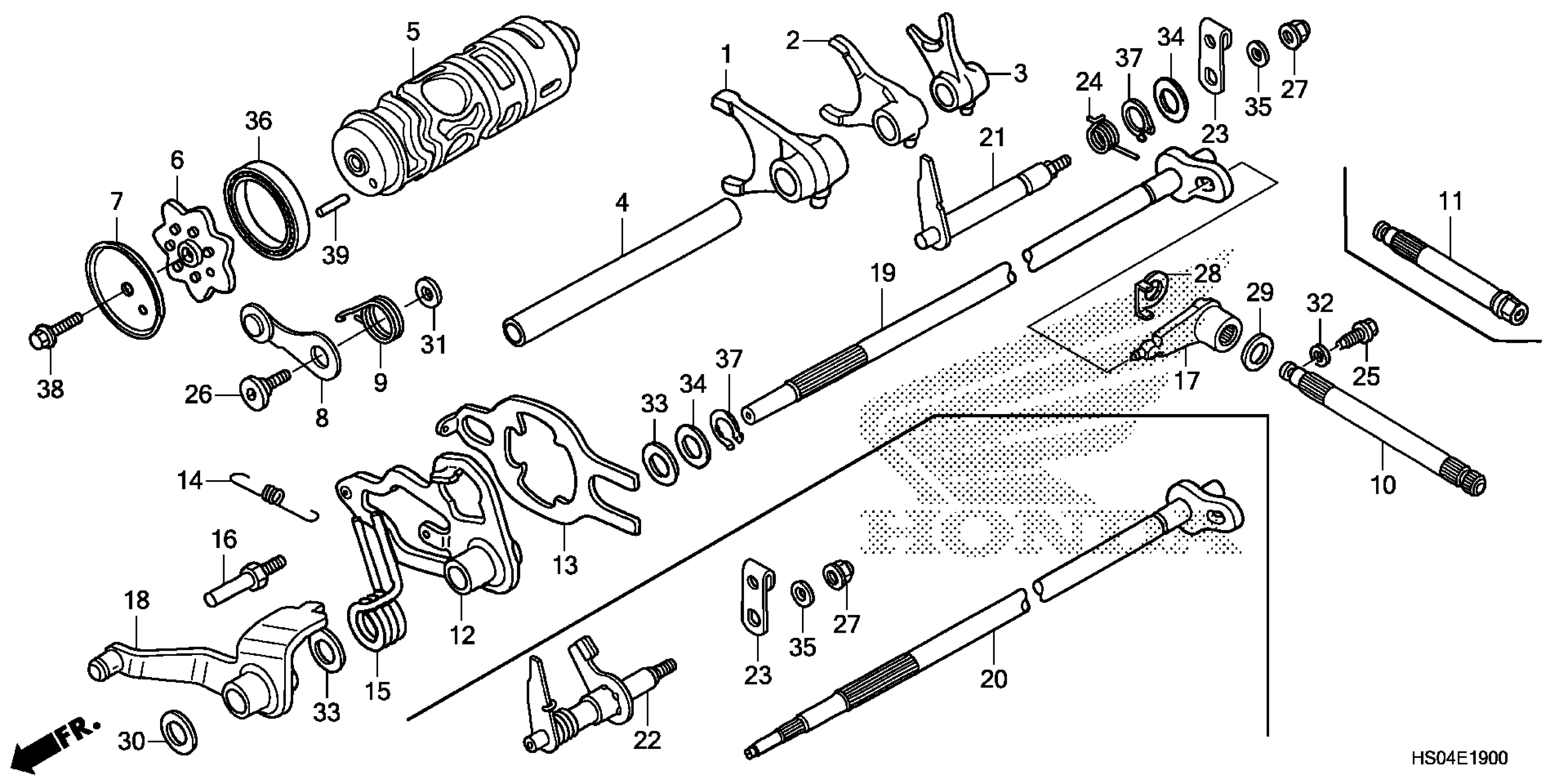

Honda TRX250TMAC (17) TRX250TM, USA, VIN# 1HFTE210-H4100001 TO 1HFTE210-H4199999 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-HN6-000

$53.96

2

FORK, CENTER GEARSHIFT

24212-HM8-A40

$48.52

3

SWINGARM, GEARSHIFT

24213-HM8-A40

$48.52

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HF1-670

$18.33

5

DRUM, GEARSHIFT

24301-HM8-A40

$82.28

6

SHIFTER, DRUM

24321-HM8-B40

$22.74

7

PLATE, SHIFT GUIDE

24328-HB3-000

$6.69

8

STOPPER, GEARSHIFT DRUM

24430-HM8-A40

$11.14

9

SPRING, SHIFT DRUM STOPPER

24435-HM8-A40

$2.62

10

SPINDLE, GEARSHIFT

24611-HM8-A40

$43.06

12

ARM, GEARSHIFT MASTER

24620-HF1-670

$40.71

13

PLATE, GEARSHIFT

24631-HM8-A40

$12.93

14

SPRING, SHIFT ARM

24641-HB3-004

$2.64

15

SPRING, GEARSHIFT RETURN

24651-HN6-000

$6.29

16

PIN, RETURN SPRING

24652-KY4-900

$7.44

17

ARM A, GEARSHIFT

24661-HM8-A40

$26.91

18

ARM, SUB-GEARSHIFT SPINDLE

24670-HM8-A40

$31.26

19

SPINDLE, SUB-GEARSHIFT

24680-HM8-A40

$50.99

21

PLATE A, REVERSE STOPPER

24860-HM8-A40

$14.43

23

LEVER, REVERSE STOPPER

24865-HN5-670

$4.18

24

SPRING, REVERSE STOPPER

24867-HM8-A40

$2.80

25

BOLT, SPECIAL FLANGE (6X15.2)

90009-HN5-670

$2.64

26

PIVOT, SHIFT DRUM STOPPER ARM

90022-HM8-A40

$2.26

27

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.79

28

WASHER

90407-HM8-A40

$2.71

29

WASHER

90408-HM8-A40

$1.77

30

WASHER (10X21.5)

90413-GE0-000

$3.64

31

WASHER, DRUM STOPPER

90417-360-000

$1.58

32

WASHER, SEALING (6MM)

90442-397-000

$2.25

33

WASHER, THRUST (12MM)

90451-GF6-000

$2.03

34

WASHER, THRUST (12MM)

90452-166-600

$2.17

35

WASHER, CRANK ARM

90545-044-000

$1.67

36

BEARING, RADIAL BALL (6807)

91008-HS0-A01

$38.25

37

CIRCLIP (OUTER) (12MM)

94510-12000

$1.65

38

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

39

ROLLER (4X13.8)

96220-40138

$0.48
