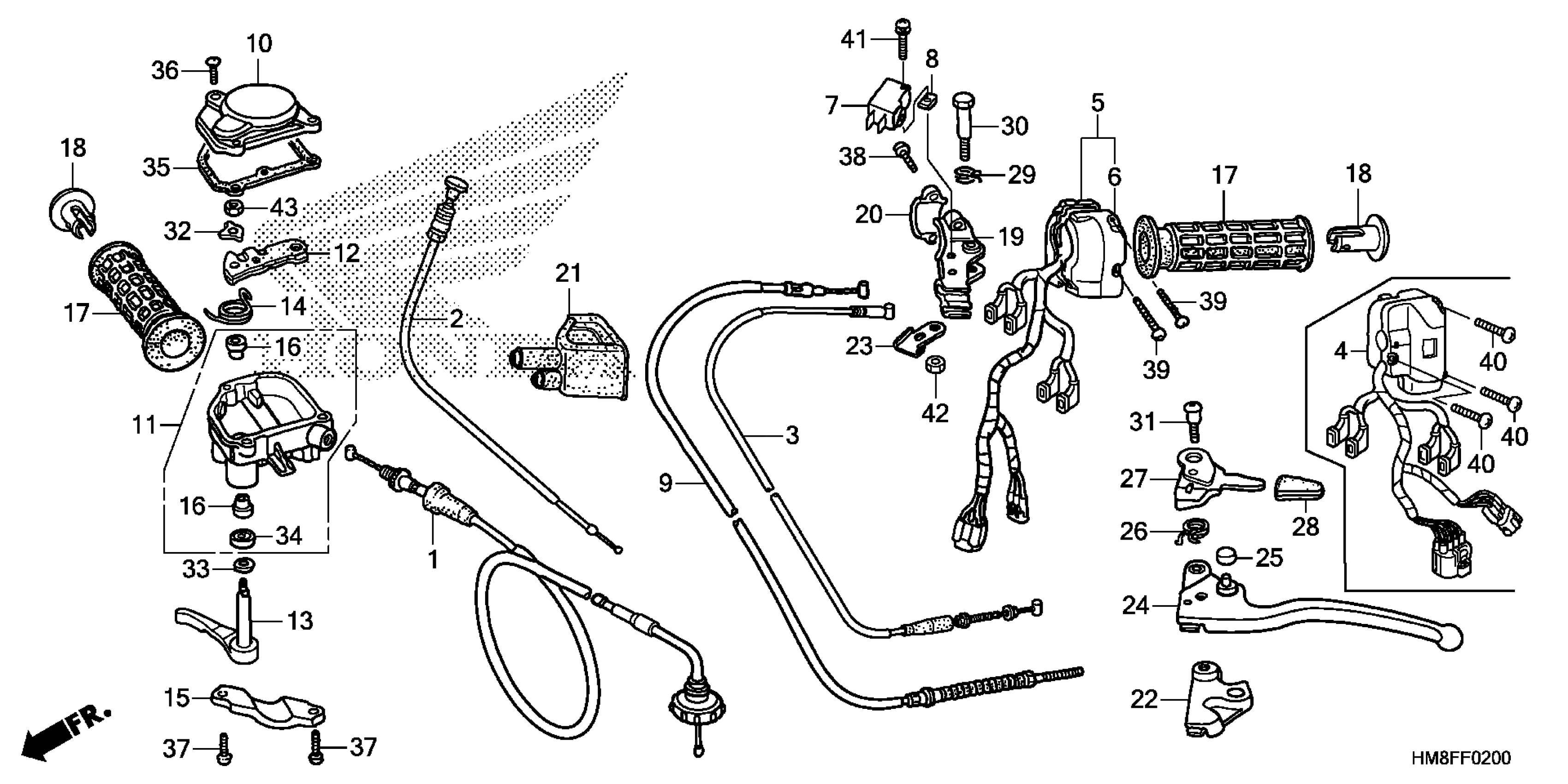

Honda TRX250TMAC (14) RECON, USA, VIN# 1HFTE210-E4500001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HM8-B00

$46.27

2

CABLE, CHOKE

17950-HM8-B20

$8.33

3

CABLE, REVERSE ASSIST

22880-HM8-B00

$8.63

5

SWITCH ASSY., LIGHTING & STARTER STOP This part replaces 35150-HM8-B61.

35150-HM8-B63

$47.94

5

SWITCH ASSY., LIGHTING & STARTER STOP This part replaces 35150-HM8-B62.

35150-HM8-B63

$47.94

6

COVER, SWITCH

35201-HB7-671

$12.37

7

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

7

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

8

COLLAR, STOP SWITCH

35345-HF1-830

$5.74

9

CABLE, HAND BRAKE

43460-HM8-B00

$9.74

10

COVER, THROTTLE CASE

53141-HP1-000

$33.58

11

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$46.44

12

ARM, THROTTLE

53144-HA0-010

$7.36

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

14

SPRING, THROTTLE RETURN

53146-HM8-000

$2.95

15

HOLDER, THROTTLE CASE

53147-HM5-850

$3.44

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

17

GRIP, HANDLE

53165-HP5-600

$3.55

18

GUARD, HANDLE END

53167-HP5-600

$2.15

19

BRACKET, BRAKE LEVER

53172-HN5-M40

$13.44

20

HOLDER, LEVER BRACKET

53173-376-000

$10.04

21

COVER, L. HANDLE

53177-HN5-M40

$5.99

22

ARM, REVERSE ASSISTANT

53179-HA6-000

$13.93

23

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$1.81

24

LEVER, RR. BRAKE

53180-HA8-770

$26.97

25

CAP, REVERSE PIN

53187-VM6-000

$3.71

26

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

27

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$11.56

28

CAP, PARKING LEVER

53193-HA0-770

$5.87

29

SPRING, LEVER RETURN

53193-HF1-830

$5.99

30

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$8.23

31

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

32

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

33

WASHER (9X20)

90504-HA0-000

$2.10

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

35

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

36

SCREW, PAN (4X16)

93500-04016-0G

$0.76

37

SCREW, PAN (5X14)

93500-05014-0G

$3.40

38

SCREW, PAN (5X18)

93500-05018-0G

$0.43

39

SCREW, PAN (5X25)

93500-05025-0G

$0.69

41

SCREW-WASHER (4X20)

93893-04020-07

$0.84

42

NUT, HEX. (6MM)

94001-06070-0S

$1.21

43

NUT, HEX. (6MM)

94002-06000-0S

$1.21
