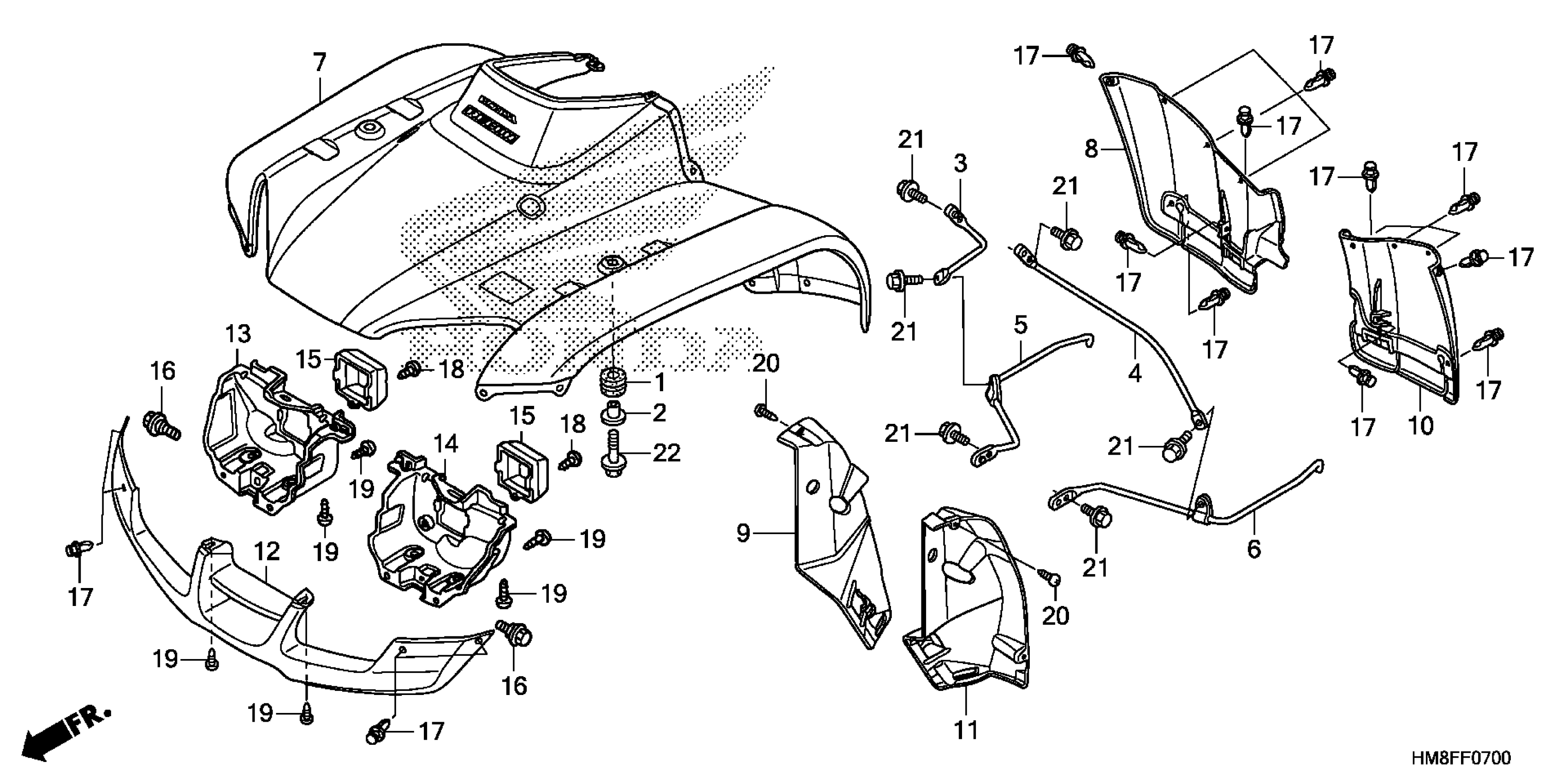

Honda TRX250TMAC (14) RECON, USA, VIN# 1HFTE210-E4500001 FRONT FENDER Diagram

#

Description
Price

1

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

2

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

2

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

3

STAY, R. FR. FENDER

61105-HM8-B00

$15.46

4

STAY, L. FR. FENDER

61106-HM8-B00

$14.58

5

STAY, R. SPLASH GUARD CENTER

61107-HM8-B00

$9.28

6

STAY, L. SPLASH GUARD CENTER

61108-HM8-B00

$8.75

7

FENDER SET, FR. *G152* (ADVENTURE GREEN)

61150-HM8-B80ZA

$256.08

7

FENDER SET, FR. *R232* (PATRIOT RED)

61150-HM8-B80ZC

$200.65

7

FENDER SET, FR. (TYPE2)

61150-HM8-B80ZD

Unavailable

7

FENDER SET, FR. (TYPE1)

61150-HM8-B80ZE

Unavailable

8

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61861-HM8-B00ZA

$17.49

9

FENDER, R. (INNER)

61862-HM8-B00

$10.34

10

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61866-HM8-B00ZA

$17.49

11

FENDER, L. (INNER)

61867-HM8-B00

$9.75

12

GRILLE, FR. *NH1* (BLACK)

66300-HM8-B00ZA

$20.66

13

COVER, R. HEADLIGHT

66301-HN7-010

$35.28

14

COVER, L. HEADLIGHT

66302-HN7-010

$35.28

15

CAP, HEADLIGHT TAIL

66303-HN5-670

$4.62

16

BOLT, FLANGE (6MM)

90111-162-000

$2.89

17

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

18

SCREW, TAPPING (4X12)

93903-24320

$1.49

19

SCREW, TAPPING (5X12)

93903-25220

$1.49

20

SCREW, TAPPING (6X16)

93904-26210

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
