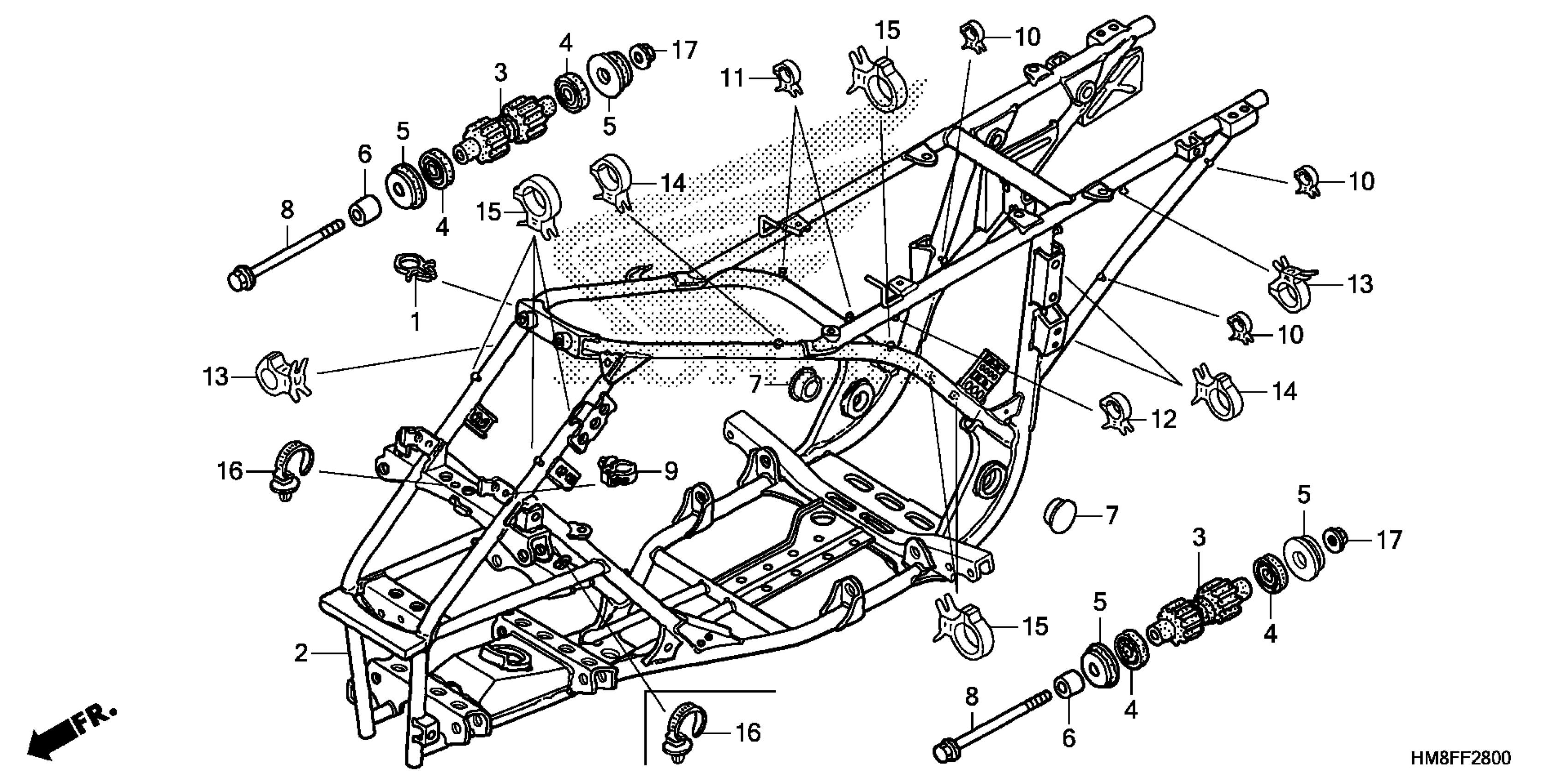

Honda TRX250TMAC (14) RECON, USA, VIN# 1HFTE210-E4500001 FRAME Diagram

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.91

FRAME

50100-HM8-B40

$1,031.74

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-B41

$18.40

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

RUBBER C, MOUNTING

50204-HM8-000

$6.98

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

BOLT, FLANGE (10X145)

90115-HM8-003

$6.58

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.90

NUT, FLANGE (10MM)

94050-10000

$1.59
