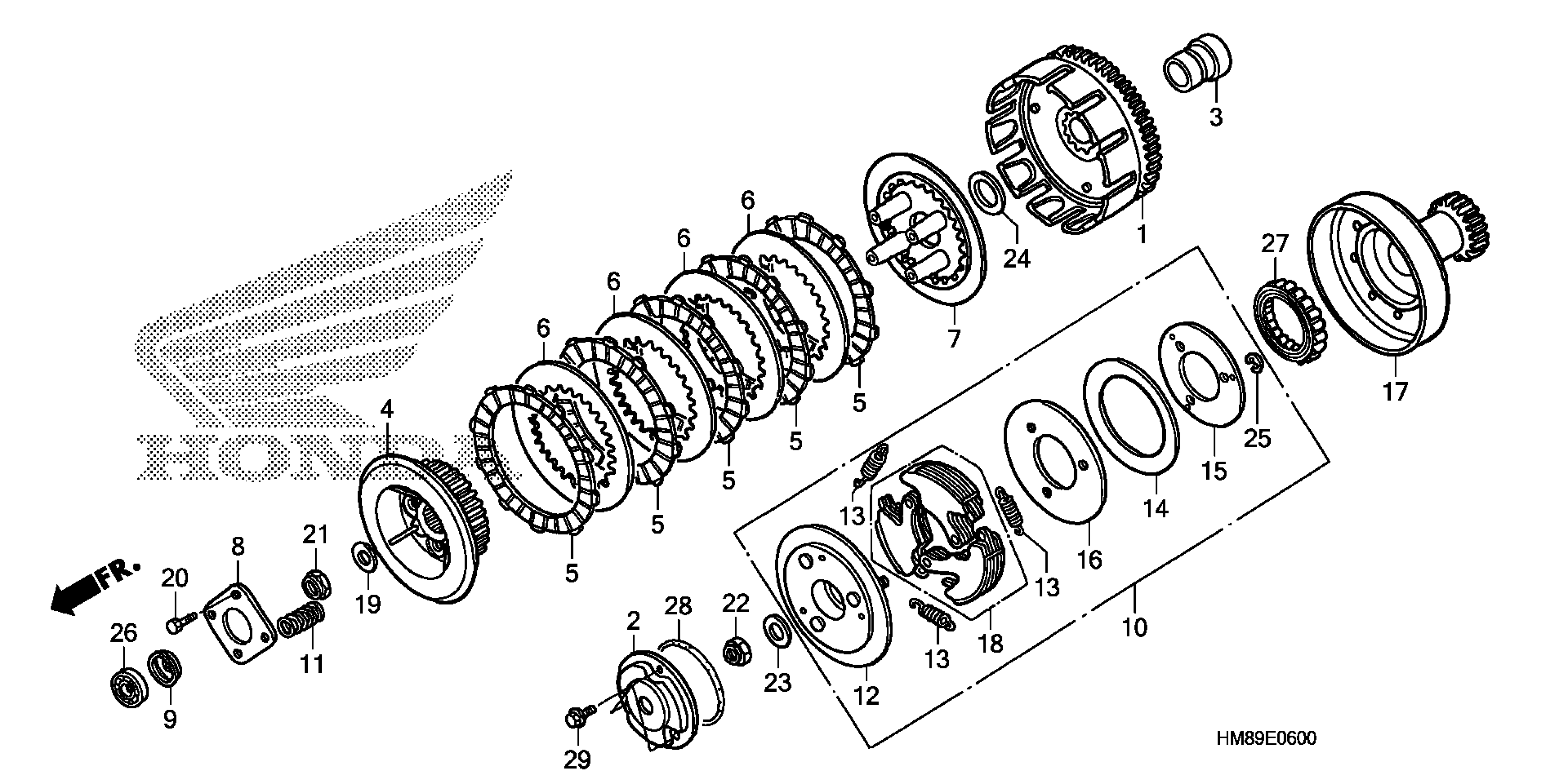

Honda TRX250TMAC (13) RECON, USA, VIN# 1HFTE210-D4400001 CLUTCH Diagram

CLUTCH OUTER

22100-HM8-A40

$223.54

COVER, OIL FILTER

22111-HB3-771

$24.20

GUIDE, CLUTCH (OUTER)

22116-HB3-000

$24.03

CENTER, CLUTCH

22121-HM8-000

$66.79

DISK, CLUTCH FRICTION

22201-166-000

$17.44

PLATE, CLUTCH

22321-HM8-A40

$13.88

PLATE, CLUTCH PRESSURE

22350-HB3-000

$41.35

PLATE, CLUTCH LIFTER

22361-HM8-A40

$13.31

COLLAR, CLUTCH LIFTER

22367-HN6-000

$10.35

PLATE ASSY., DRIVE

22400-HM8-A41

$167.58

SPRING, CLUTCH This part replaces 22401-HB3-010.

22401-KE7-000

$4.06

SPRING, CLUTCH

22401-KE7-000

$4.06

PLATE, DRIVE

22451-HM8-A41

$77.69

SPRING, CLUTCH

22463-HB3-770

$3.81

SPRING, CONE DISK

22470-HB3-770

$13.93

WASHER (48X92X1.6)

22480-HM8-A40

$9.75

WASHER (48X100X1.2)

22481-HM8-A40

$10.08

DRUM, CLUTCH (23T) This part replaces 22500-HM8-A40.

22500-HS0-A00

$120.92

WEIGHT SET, CLUTCH

22535-HM8-306

$82.43

WASHER, STEERING PIVOT

53044-HA7-670

$7.34

BOLT, HEX. (6X28)

90001-HM8-A40

$2.92

NUT, SPECIAL (16MM)

90201-HB3-000

$7.49

NUT, SPECIAL (18MM)

90235-HB3-000

$10.45

WASHER (18MM)

90432-KE5-000

$4.85

WASHER, THRUST (20MM)

90452-413-000

$2.53

CIRCLIP (7MM)

90605-HM8-000

$2.02

BEARING, BALL (6903) (KOYO)

91008-HC4-004

$23.06

CLUTCH, ONE-WAY

91101-958-003

$152.01

O-RING (83.5X1.5)

91301-HM8-A40

$5.14

BOLT, FLANGE (6X8)

95701-06008-00

$3.46
