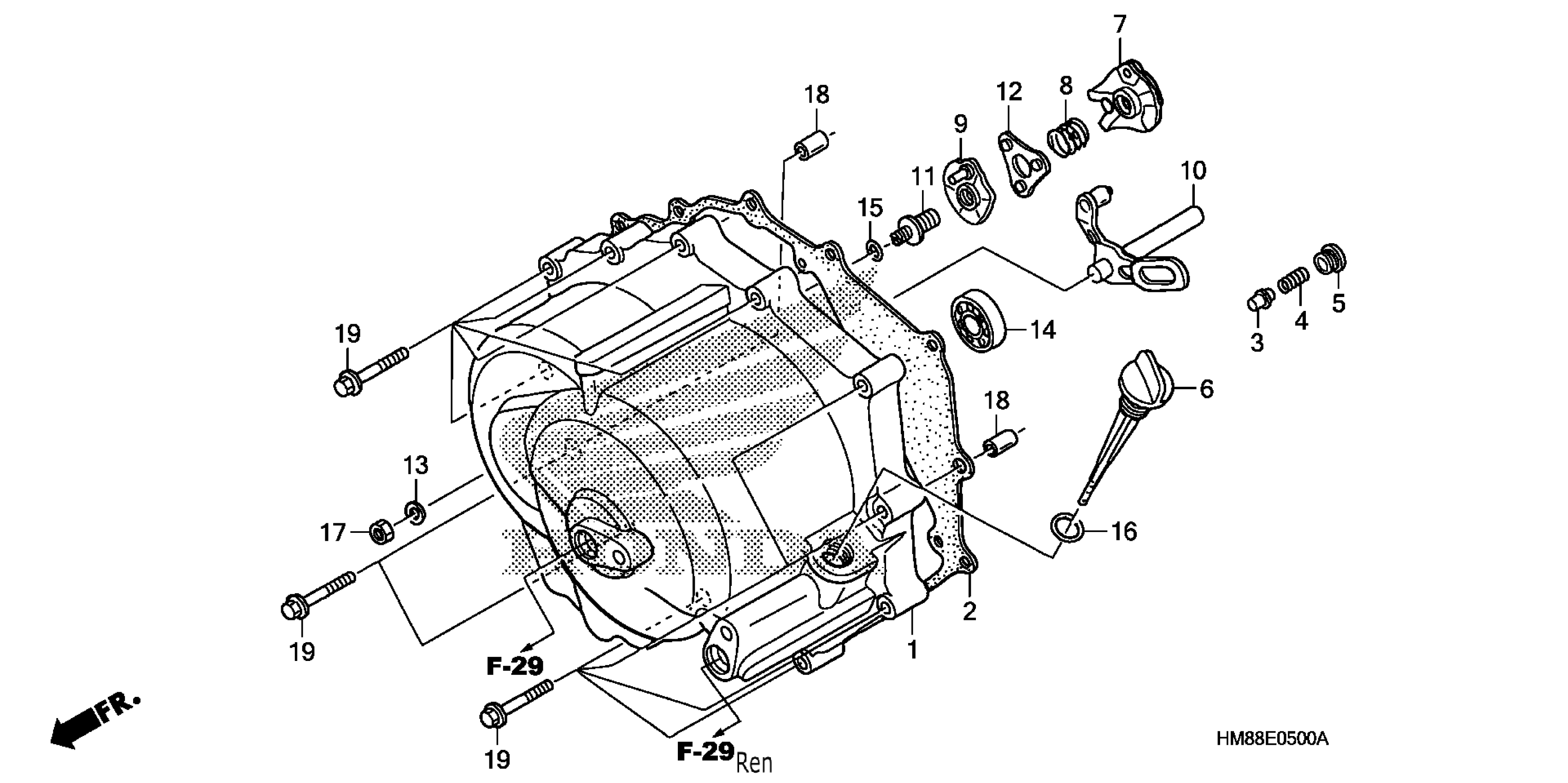

Honda TRX250TMA (09) FOURTRAX RECON, USA, VIN# 1HFTE210-94900001 FRONT CRANKCASE COVER (TRX250TM) Diagram

COVER, FR. CRANKCASE

11330-HN6-000

$219.11

GASKET, FR. CRANKCASE COVER

11394-HM8-000

$26.03

VALVE, RELIEF

15231-HM3-670

$12.43

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

CAP, RELIEF VALVE

15235-HM3-670

$21.69

DIPSTICK, OIL

15651-HM8-000

$10.74

PLATE, CLUTCH CAM

22820-HN6-000

$18.90

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

PLATE, CLUTCH LIFTER

22830-HB6-000

$21.17

SUB-LEVER, CLUTCH LIFTER

22840-HM8-000

$35.26

BOLT, CLUTCH ADJUSTING

22846-HB3-000

$6.07

RETAINER, BALL

22860-HB3-000

$7.81

WASHER (8MM)

90485-040-000

$1.77

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

NUT, HEX. (8MM)

94030-08000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
