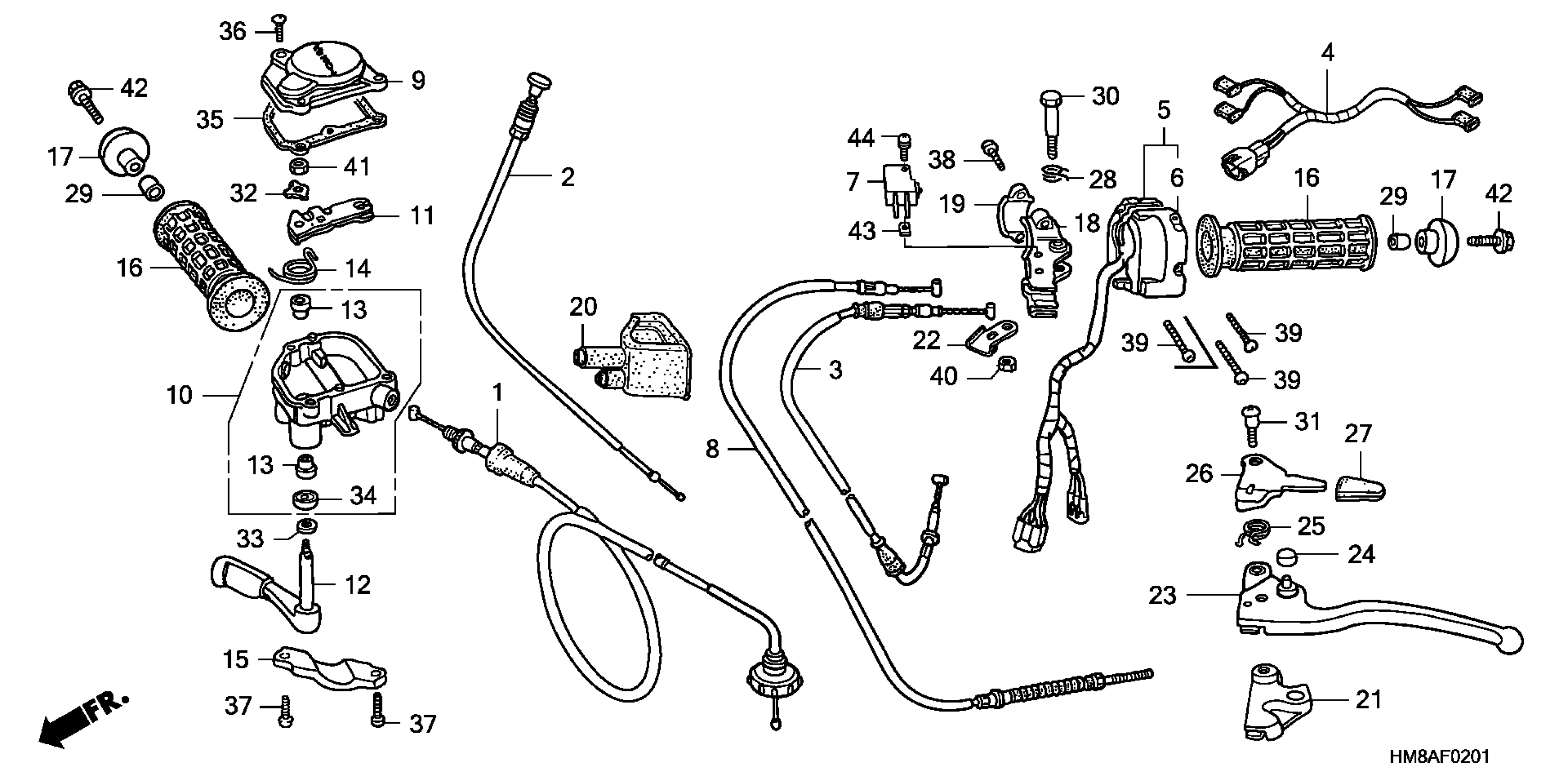

Honda TRX250TMA (05) FOURTRAX RECON, USA, VIN# 1HFTE210-54500001 HANDLE LEVER + SWITCH + CABLE ('05) Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HM8-B00

$46.27

2

CABLE, CHOKE

17950-HM8-A01

$8.73

3

CABLE, REVERSE ASSIST

22880-HM8-B00

$8.63

4

SUB-WIRE, FR. STOP SWITCH

32105-HM8-B00

Unavailable

5

SWITCH ASSY., LIGHTING & ENGINE STARTER

35200-HM8-B00

$54.07

6

COVER, SWITCH

35201-HB7-671

$12.37

7

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

7

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

8

CABLE, HAND BRAKE

43460-HM8-B00

$9.74

9

COVER, THROTTLE CASE

53141-HP1-000

$33.58

10

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$46.44

11

ARM, THROTTLE

53144-HA0-010

$7.36

12

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

12

LEVER, THROTTLE

53145-HA0-770

$21.43

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

14

SPRING, THROTTLE RETURN

53146-HM8-000

$2.95

15

HOLDER, THROTTLE CASE

53147-HM5-850

$3.44

16

GRIP, HANDLE

53165-958-010

$12.28

17

GUARD, HANDLE END

53167-958-680

$6.11

18

BRACKET, BRAKE LEVER

53172-HN5-M40

$13.44

19

HOLDER, LEVER BRACKET

53173-376-000

$10.04

20

COVER, L. HANDLE

53177-HN5-M40

$5.99

21

ARM, REVERSE ASSISTANT

53179-HA6-000

$13.93

22

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$1.81

23

LEVER, RR. BRAKE

53180-HA8-770

$26.97

24

CAP, REVERSE PIN

53187-VM6-000

$3.71

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

26

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$11.56

27

CAP, PARKING LEVER

53193-HA0-770

$5.87

28

SPRING, LEVER RETURN

53193-HF1-830

$5.99

29

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.80

30

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$8.23

31

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

32

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

33

WASHER (9X20)

90504-HA0-000

$2.10

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

35

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

36

SCREW, PAN (4X16)

93500-04016-0G

$0.82

37

SCREW, PAN (5X14)

93500-05014-0G

$3.40

38

SCREW, PAN (5X18)

93500-05018-0G

$0.43

39

SCREW, PAN (5X25)

93500-05025-0G

$0.69

40

NUT, HEX. (6MM)

94001-06070-0S

$1.31

41

NUT, HEX. (6MM)

94002-06000-0S

$1.31

42

BOLT, FLANGE (6X25)

95701-06025-07

$1.79

43

COLLAR, STOP SWITCH

35345-HF1-830

$5.74

44

SCREW-WASHER (4X20)

93893-04020-07

$0.84
