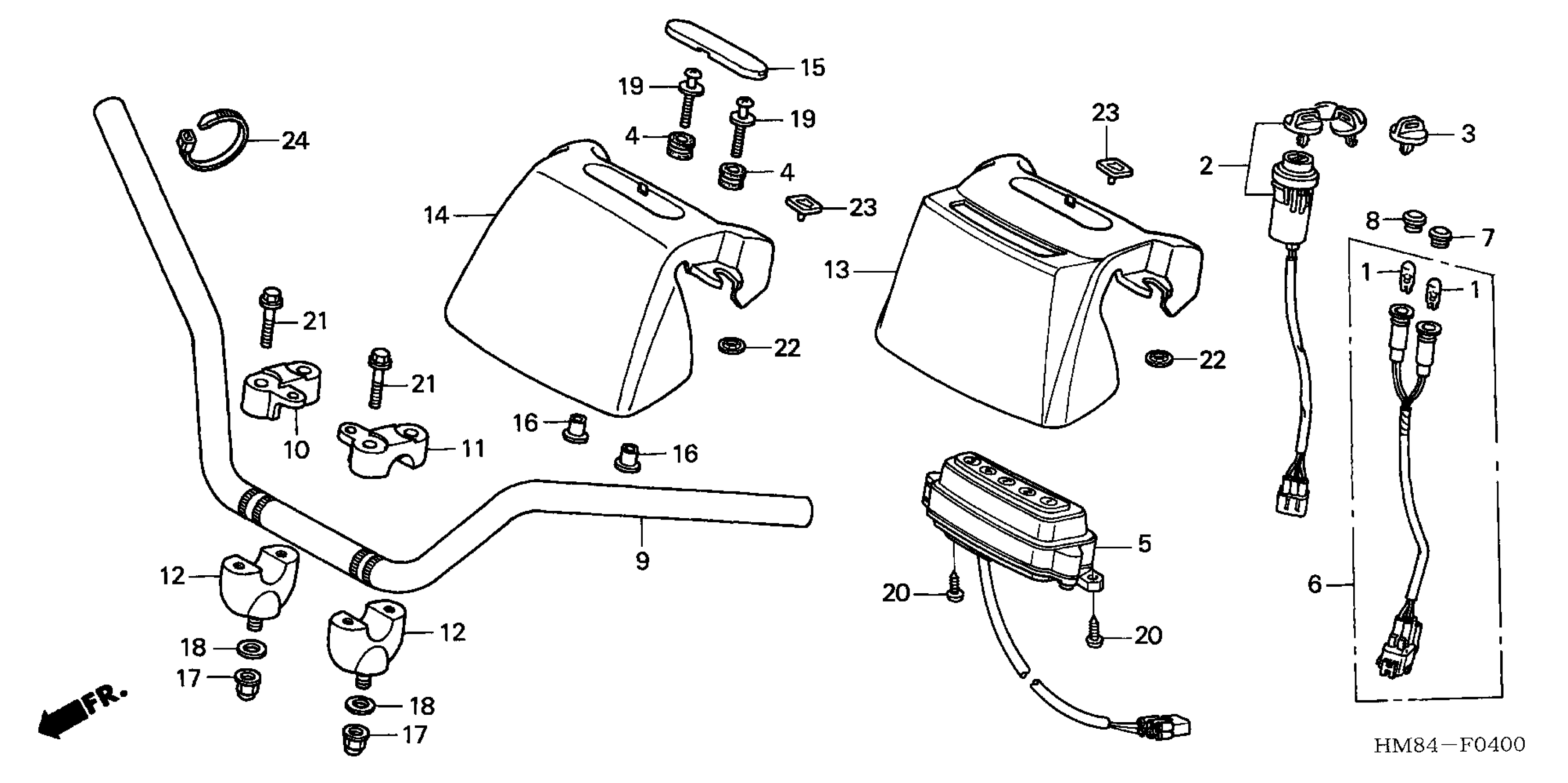

Honda TRX250TMA (04) FOURTRAX RECON, USA, VIN# 478TE210-44400001 HANDLEBAR Diagram

#

Description
Price

1

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)

34909-KW3-003

$3.08

2

SWITCH ASSY., IGNITION

35100-HM8-000

$50.83

3

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$8.61

3

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.61

4

RUBBER, MOUNTING

37215-HM5-670

$1.94

6

SOCKET ASSY., INDICATOR

37600-HN6-000

$51.87

7

LENS, OIL INDICATOR (RED)

37602-HM5-670

$3.45

8

LENS, NEUTRAL INDICATOR (GREEN)

37603-HM5-670

$3.37

9

HANDLEBAR This part replaces 53100-HM8-A40.

53100-HM8-000

$204.94

10

HOLDER, R. HANDLE (UPPER)

53111-HC3-000

$17.14

11

HOLDER, L. HANDLE (UPPER)

53121-HC3-000

$17.14

12

HOLDER, HANDLE (LOWER)

53130-HB3-770

$19.01

14

COVER, HANDLE *NH1* (BLACK) This part replaces 53205-HM8-020ZA.

53205-HN6-305ZA

$16.63

14

COVER, HANDLE *NH1* (BLACK)

53205-HN6-305ZA

$16.63

15

CAP, HANDLE COVER *NH1* (BLACK)

53206-HM8-000ZA

$1.84

16

COLLAR, COVER SETTING

83601-357-000

$5.06

17

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

18

WASHER (10.3MM)

90521-427-770

$2.17

19

SCREW-WASHER (6X20)

93894-06020-0H

$1.22

19

SCREW-WASHER (6X20)

93894-06020-08

$1.22

21

BOLT, FLANGE (8X35)

95701-08035-08

$1.28
