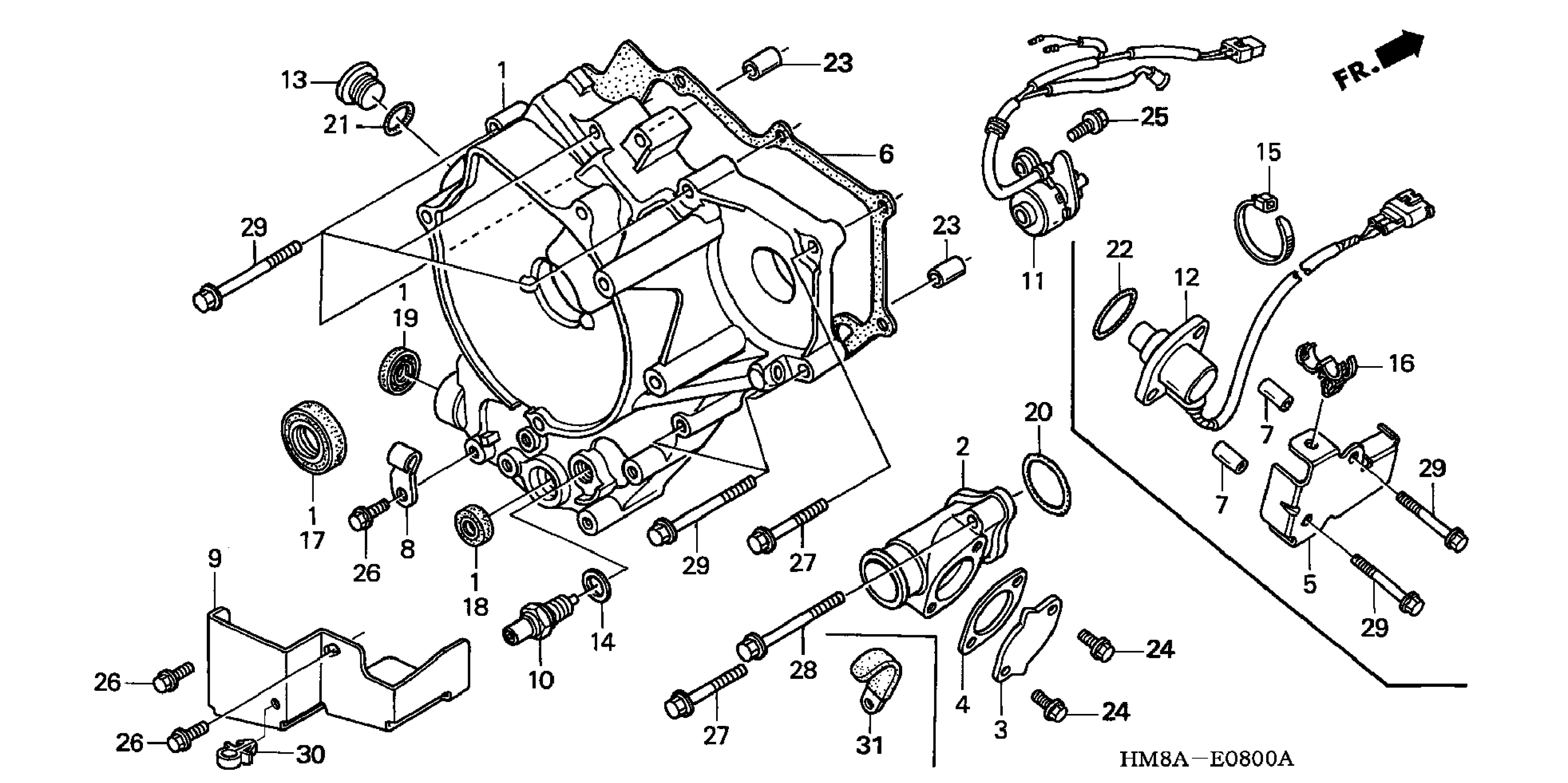

Honda TRX250TMA (03) FOURTRAX RECON, USA, VIN# 478TE210-34300001 TO 478TE210-34399999 REAR CRANKCASE COVER Diagram

COVER, RR. CRANKCASE

11340-HM8-A40

$145.84

PROTECTOR, COUNTERSHAFT

11355-HM8-A40

$48.16

CAP, SPEED SENSOR

11356-HN5-670

$3.51

GASKET, SPEED SENSOR INSULATOR

11357-HM8-000

$2.01

GASKET, RR. CRANKCASE COVER

11395-HM8-A40

$13.87

HOLDER, REVERSE STOPPER WIRE

24866-HM8-A40

$2.95

PROTECTOR, REVERSE LEVER

24880-HM8-A40

Unavailable

SWITCH ASSY., CHANGE

35759-HM8-A41

Unavailable

CAP (14MM)

90084-KY2-000

$14.66

OIL SEAL (12X22X5)

91201-965-000

$3.87

OIL SEAL (22X32X7) (ARAI)

91202-HB3-003

$9.18

OIL SEAL (12X22X5)

91201-965-000

$3.87

OIL SEAL (22X32X7) (ARAI)

91202-HB3-003

$9.18

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.31

O-RING (44.1X2.2) (NOK)

91302-P0Z-003

$6.49

O-RING (13.8X2.5)

91303-377-000

$3.26

PIN, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

BOLT, FLANGE (6X16)

95701-06016-07

$1.63

BOLT, FLANGE (6X25)

95701-06025-00

$1.79

BOLT, FLANGE (6X35)

95701-06035-00

$1.88

BOLT, FLANGE (6X40)

95701-06040-00

$1.88
